Precision 5μm Linear Scale DRO 2/3 Axis Digital Readout Glass Encoder Lathe Mill
$ 30.07
Description

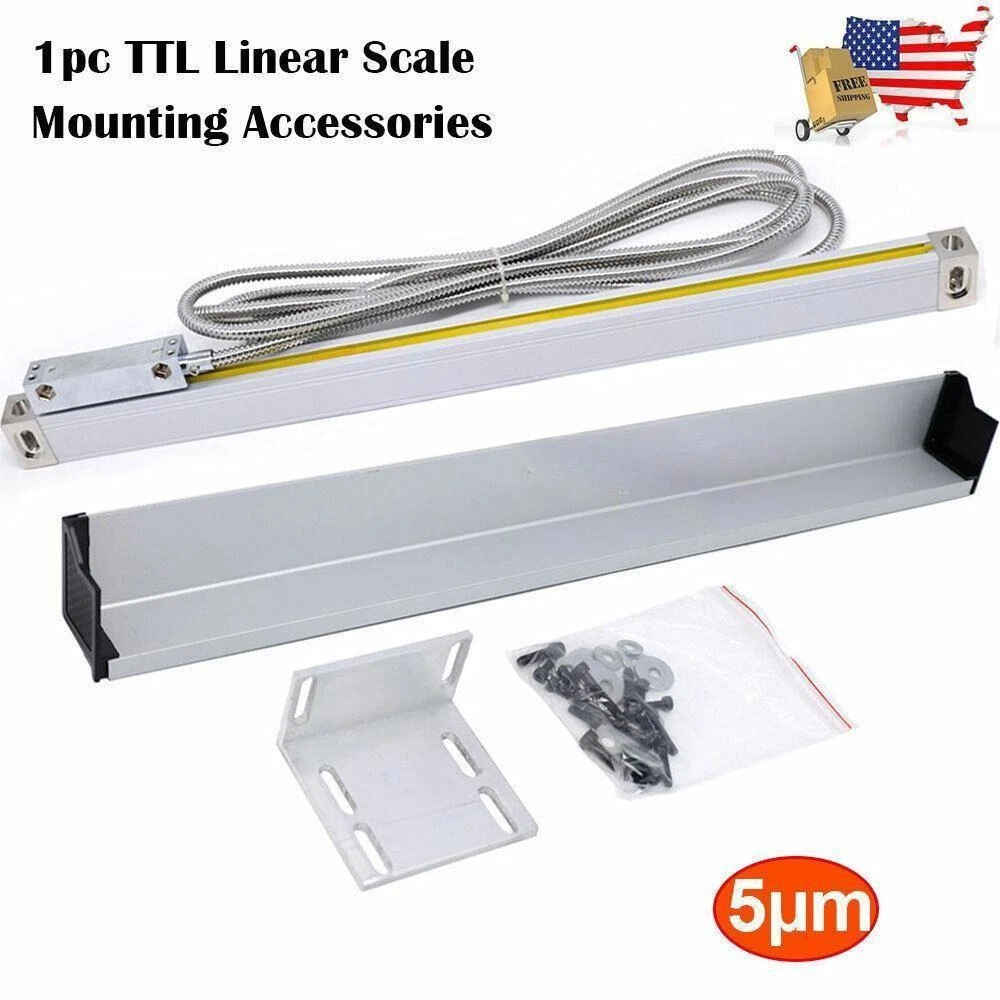

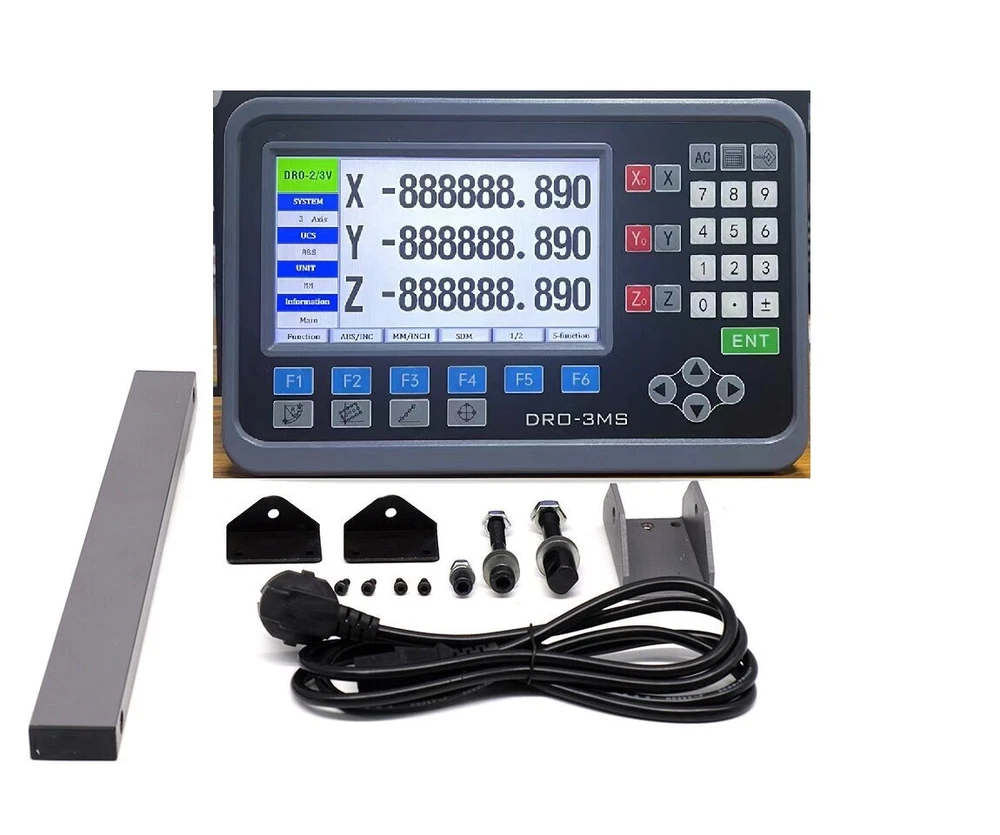

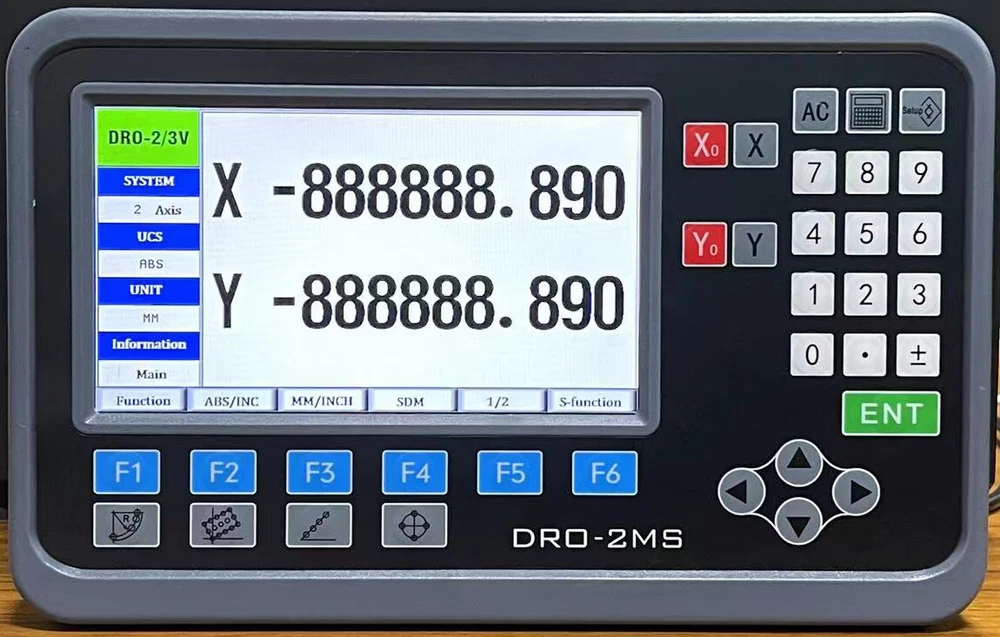

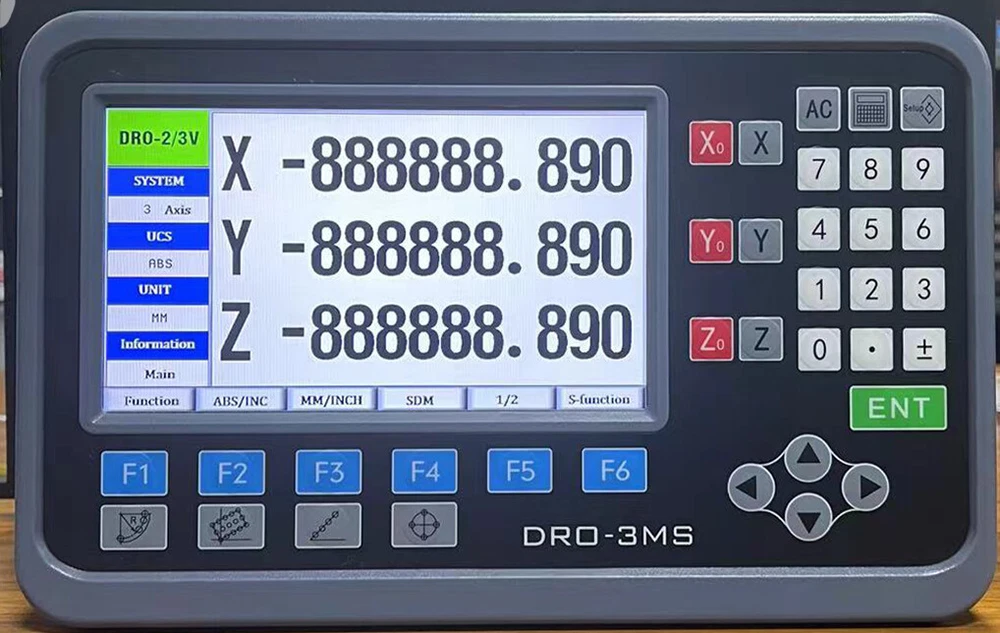

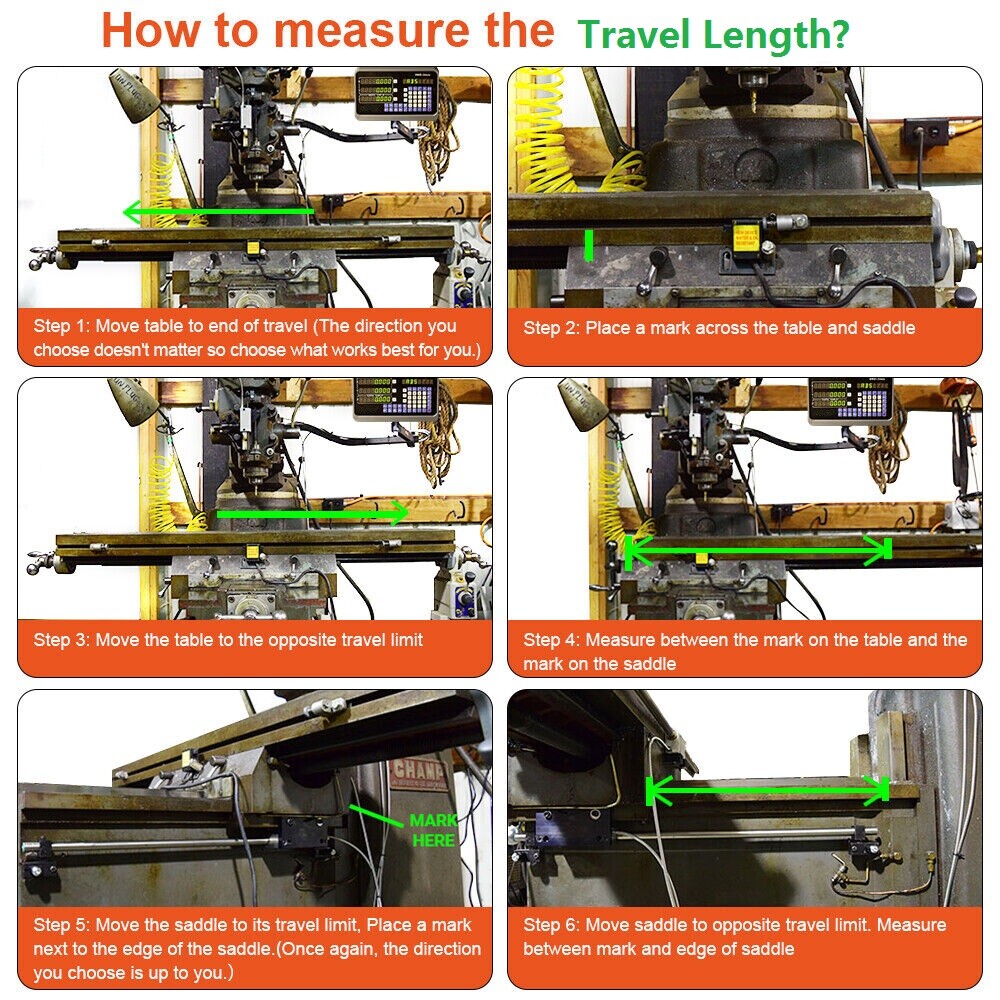

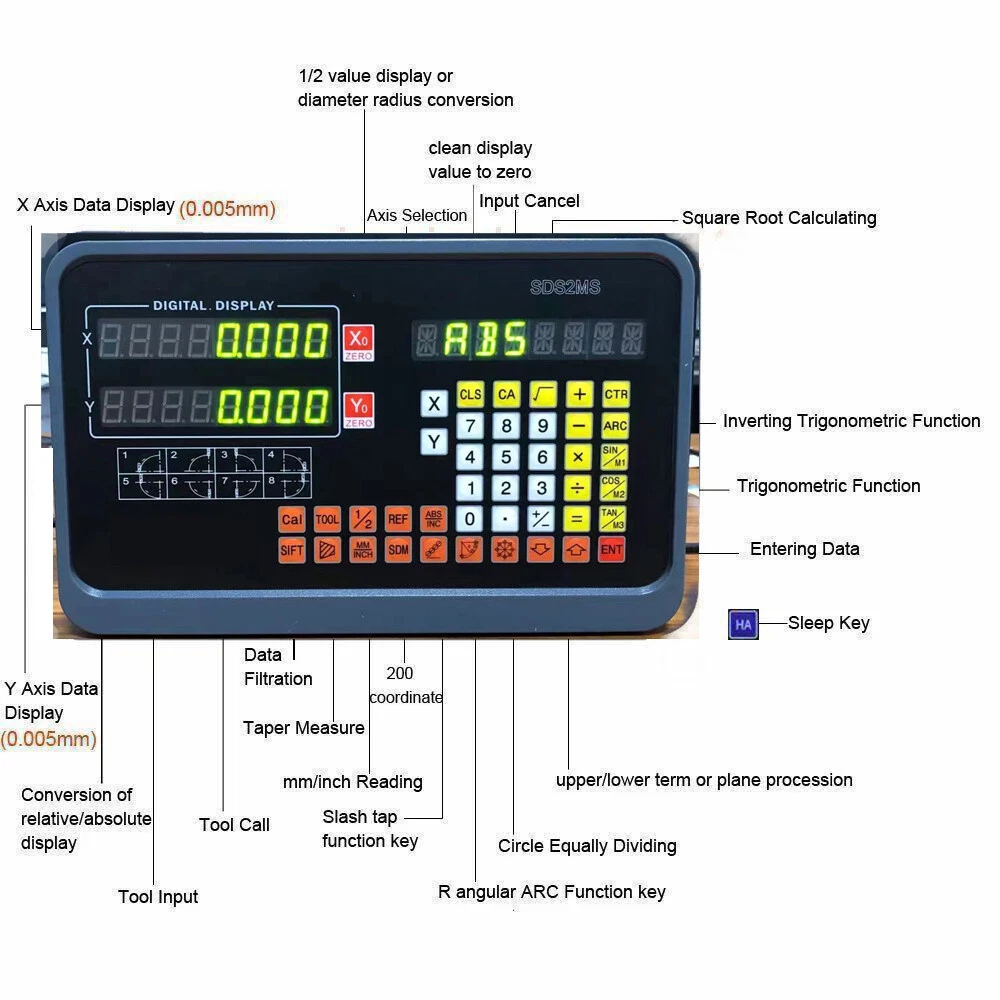

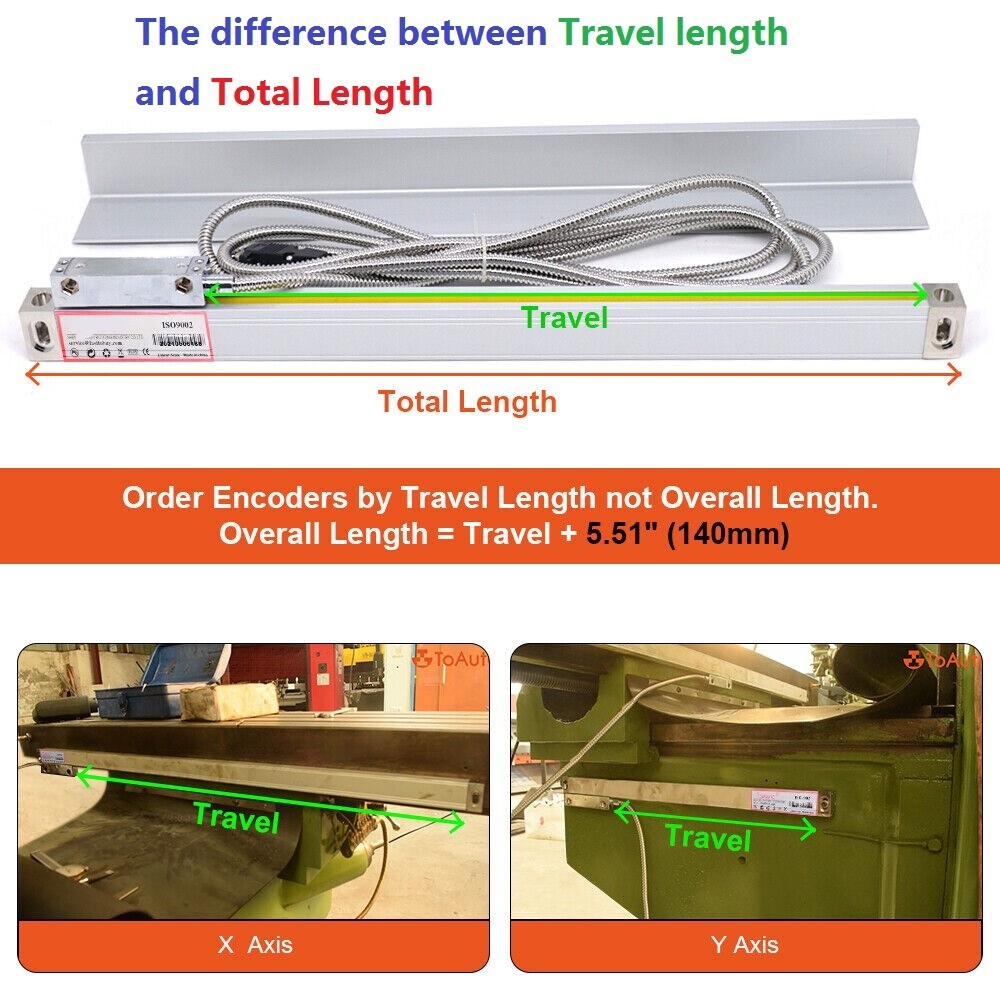

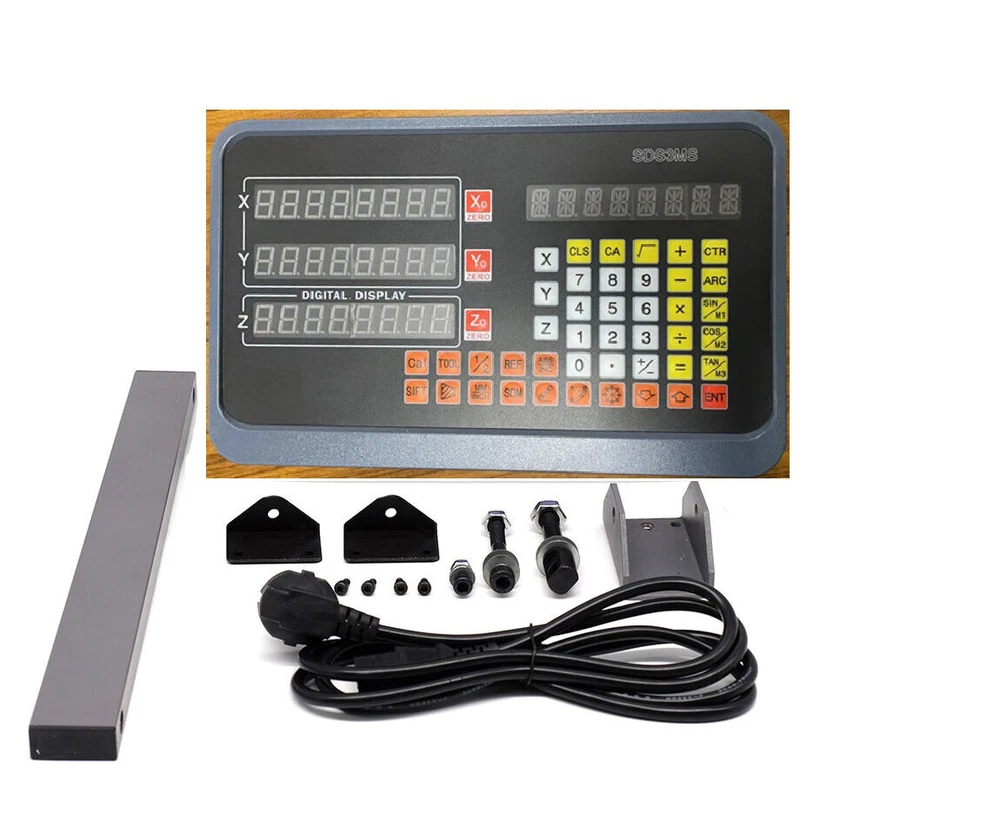

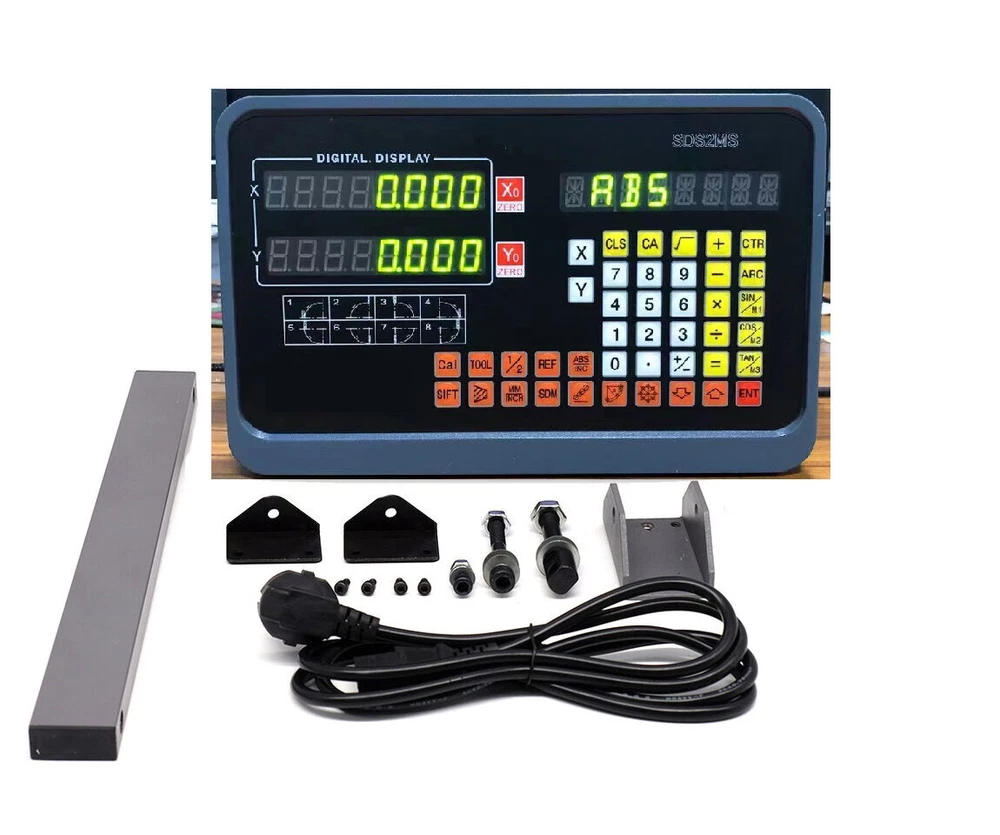

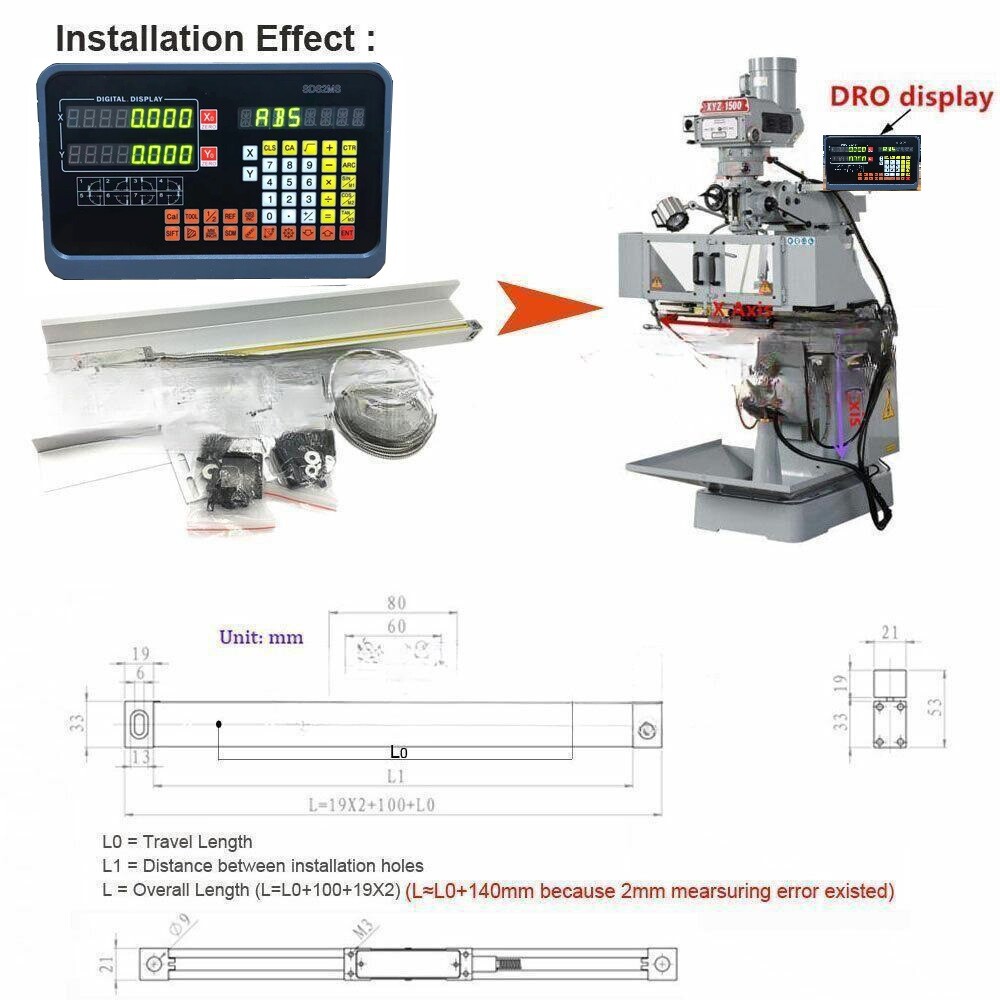

Applications: Milling Machine, Lathe, EDM, Grinder etc. Specifications & Functions : AC80V~260V,50~60Hz , US plug available Power consumption: 15VA Operating temperature: 0~45℃ Storage temperature: -30~70℃ Relative humidity: Less than 90% Readout input signal: TTL square wave Input signal frequency: Less than 5M Hz Resolution : 5µm (0.005mm/0.0002") Min resolution of DRO angle :0.0001/pulse DRO Dimensions: 11.6"X6.7"X2.56" Linear Scale Interface: DB9(RS232) SDM 200 sets memory, power-off memory for 10years , circumference drilling, oblique line drilling, 1/2 centering PCD function R function Smooth R function The simple R function Chambering (applicable to: Milling machine,Boring machine) Tool conpensation (for lathe) Machining of oblique plane Calculator PACKAGE INCLUDED : 1pc DRO Or 1pc Linear Scale (Travel Length 100/150/200/250...1000MM) 1Set Installation Accessories 2AXIS DRO 3AXIS DRO 2AXIS DRO LCD SCREEN 3AXIS DRO LCD SCREEN FAQ: Q1 : are the length 100, 150, 200.... 1500mm travel length or total ? Answer : all are travel length Q2: if i need 250mm , 1000mm scales with 2axis digital readout, how should i do ? Answer : You can select the 250MM (10"), 1000MM (40") and 2Axis Digital Readout add in your cart, then make the payment together, we will ship them in one kit to you . Q3 : if i need a scale like 255mm , can you offer it ? Answer : 250mm is enough , its measuring range can reach up to 270mm，so you can use if you need to measure 255mm. Q4: How to switch Mill type to Lathe type ? Answer : Please contact to get the video . (press 6 times after DRO powers on) RESOLUTION OPTIONAL MULTIFUNCTION 9 PIN CONNECTIONS 5μm(0.0002") DRO must be set to completely match the linear scale accuracy. circumference holes processing, linear holes processing, ARC processing, oblique processing, slope processing, chamber processing, R function,the tool diameter compensation function, digital filter ,radius/diameter, mm/inch etc. Readout only allows TTL square wave signal input through 9 pins connector . Pin 1 to 4 connects +5V, 0V, A, B Pin 5-9 is blank. DOUBLE SEAL & SIGNAL ABLE REPEATING POSITIONING FULL SET ACCESSORIES Signal cable uses multilayer shielded wire steel and metal shell to provide extra protection . Deafult offer 3meters (9.84feet long) cable connecting with linear scale. Sensor adopts the precision metrology grating as the measurement standard. And the sliding parts have excellent repeatable positioning performance. Full set of installation accessories (L type cover, backplate and screws ) included inside the linear scale , each scale equipped with some extra screws to avoid unsccessful installation .
