Professional Grade 24V AC Fan Relay, SPDT, 18A 14FLA 84LRA 125V / 8FLA 48LRA

$ 11.12

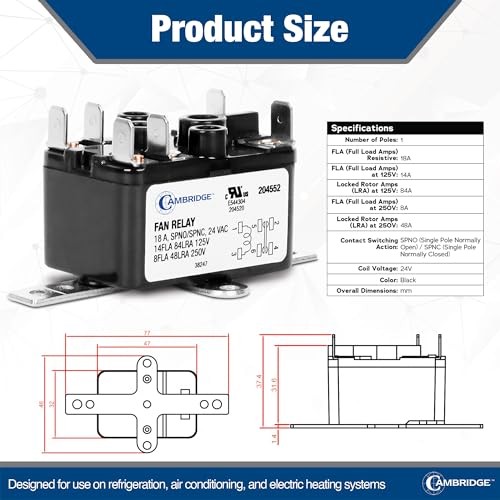

Item Width: 1.8 Item Length: 3 Item Height: 1.5 upc: 680183165644 Operation Mode: Automatic Item Weight: 2.89 ounces Mounting Type: Chassis Mount, Panel Mount Contact Current Rating: 12 Amps Current Rating: 18 Amps Date First Available: October 30, 2025 Product Dimensions: 3 x 1.8 x 1.5 inches Contact Material: Silver material: Silver Coil Voltage: 24 Volts (AC) height: 1.5 width: 1.8 UPC: 680183165644 Connector Type: Quick Connect Wattage: 100 Milliwatts Minimum Switching Voltage: 24 Volts (AC) Specification Met: UL

Description

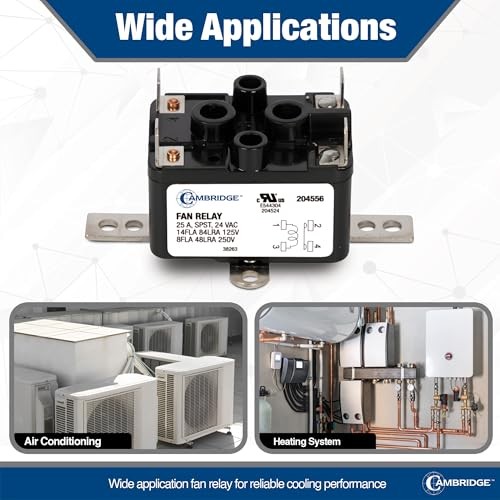

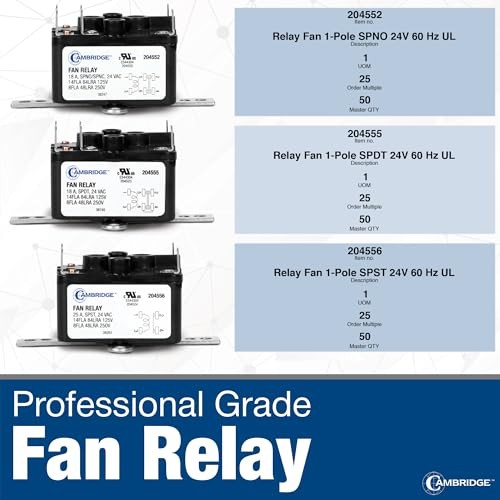

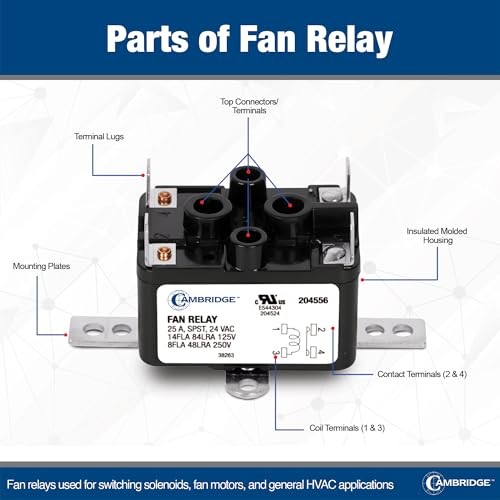

Professional Grade 24V AC Fan Relay, SPDT, 18A 14FLA 84LRA 125V / 8FLA 48LRA . Professional Grade 24V AC Fan Relay, SPDT, 18A 14FLA 84LRA 125V / 8FLA 48LRA 250V, Single-Pole, Mounts Any Position, Fits Standard Receptacles – Ideal for OEM HVAC & Appliances. UL Recognition, Pro Build - E544304 certification and insulated molded housing ensure safe isolation and quiet operation. Return Policy Fast Delivery Trusted seller Professional Grade 24V AC Fan Relay, SPDT, 18A 14FLA 84LRA 125V / 8FLA 48LRA 250V, Single-Pole, Mounts Any Position, Fits Standard Receptacles – Ideal for OEM HVAC & Appliances Product Description Motor-Rated Performance - This 24V AC relay handles fan motor inrush reliably with 14 FLA/84 LRA at 125V and 8 FLA/48 LRA at 250V, protecting thermostat contacts and extending blower motor life in HVAC duty.24VAC Relay, Multiple Forms - Single-pole coil enables precise switching -select SPST 8A, SPDT changeover 12A, or SPNO/SPNC 12A to match circuit logic for air handlers, condensers, evaporators applications.Fast, Clean Installation - Quick-connect spade terminals and labeled posts streamline wiring - coil 1/3, contacts 2/4. Compact chassis-mount bracket fits tight panels; diagrams included.UL Recognition, Pro Build - E544304 certification and insulated molded housing ensure safe isolation and quiet operation. Professional-grade materials deliver long service life, minimizing callbacks.Purpose-Built Applications - Universal replacement for furnace blower relay, air handler, electric heat kits, condenser and evaporator fan circuits when specs match, streamlining HVAC/R inventory. Shipping Returns Payment Shipping Shipping is FREE to all addresses other than APO/PO boxes in the lower 48 states. All our stock ships from US-based warehouses. Shipped via USPS or UPS (depending on location and package weight) Unless stated otherwise, all orders will ship within 24-72 hours of your payment being processed. Check our feedback to see the great reviews of FAST shipping we offer. Returns Seller does not accept returns Payment We currently accept payment via eBay managed payments only. Once payment is cleared, we will dispatch your shipment within 1-3 business days. Please refer to the "Shipping" tab for more information regarding shipping speed to your destination.
