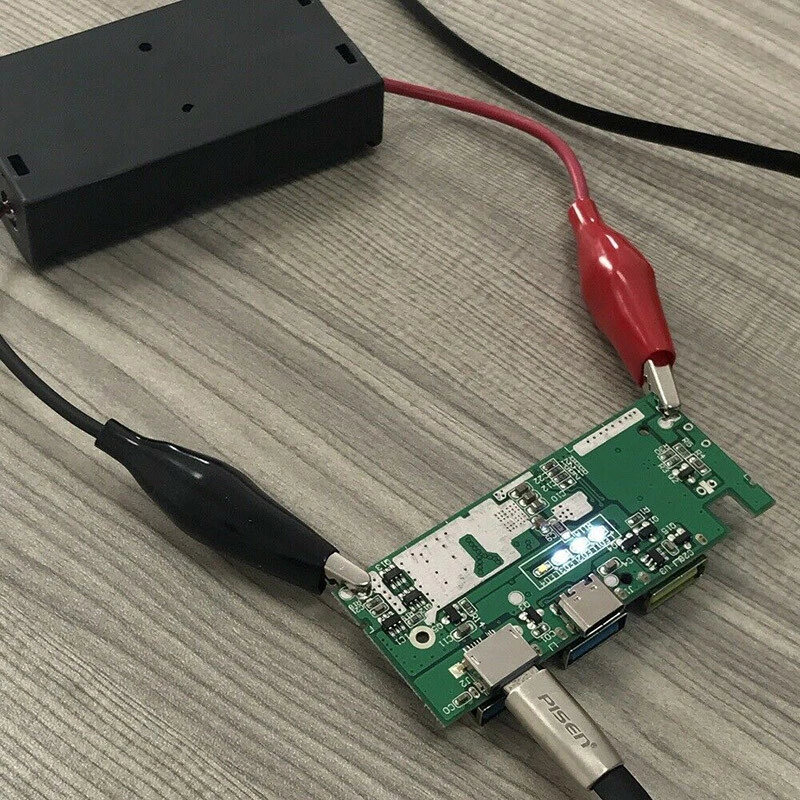

QC3.0 Type-C USB Lithium Li-ion 18650 Battery Fast Charging Quick Charger Board
$ 20.58
Description

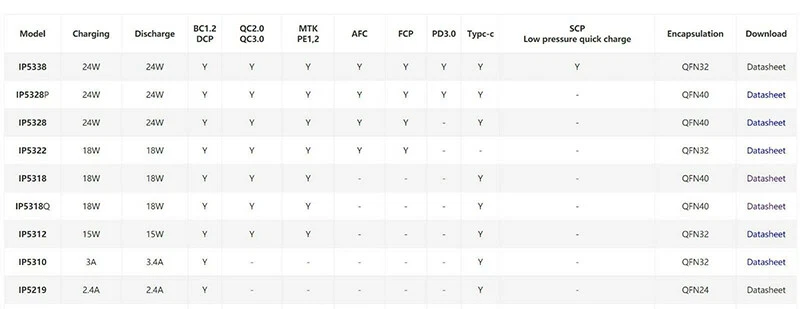

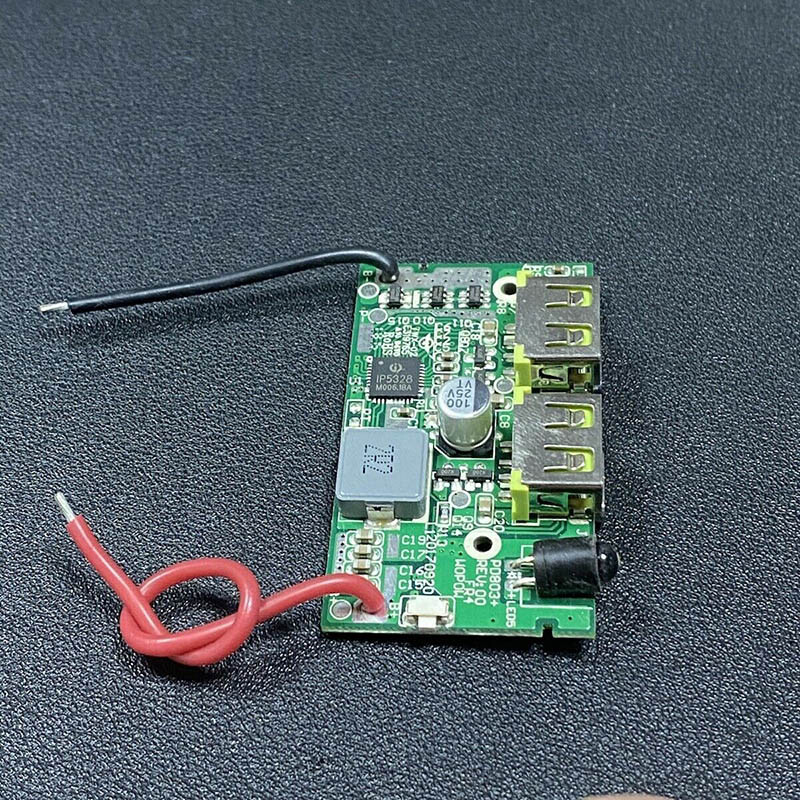

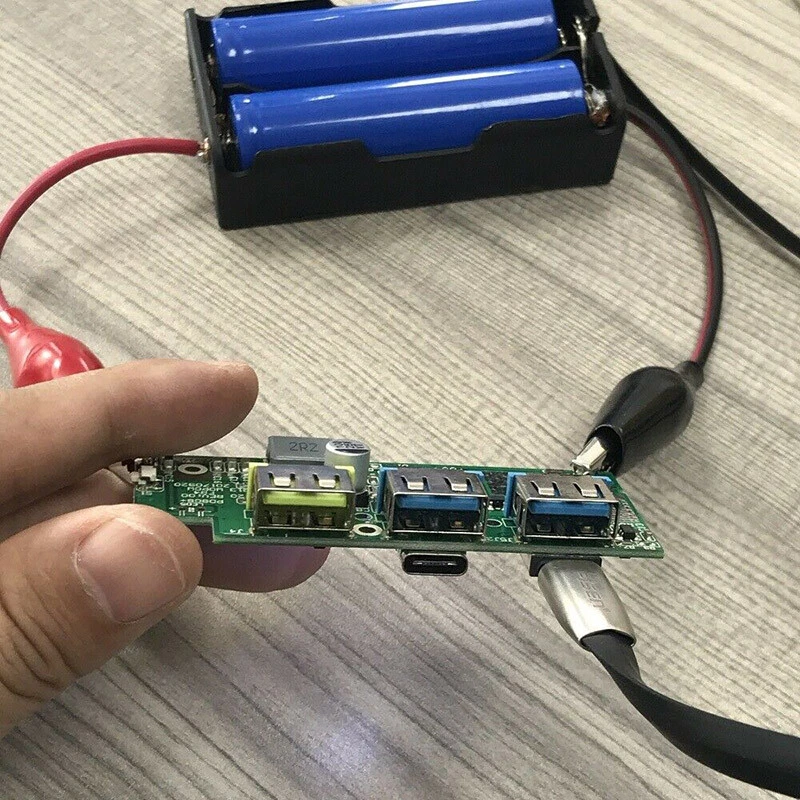

Welcome to Plc-Electric If you like this item, welcome to "Add to watch list" If you like our store, welcome to "+ Follow this seller" to follow us. You may also like, welcome use "Add to basket to buy" Description Welcome to my eBay store: plc-electric Tips: If you need large quantity, we can provide wholesales for you.Thanks. Specification : The main chip use IP5328 It is suitable for polymer rechargeable lithium Li-ion battery. Access battery requirements: 3.3-4.2V polymer Li-ion battery: Do not connect other batteries, such as 1.2V nickel-metal hydride batteries, 3.2V iron-lithium batteries, all dry batteries, 12V lead-acid batteries. The battery current requires more than 3A to discharge and charge. Please do not use a battery with high internal resistance. When you combine several battery in parallel, the battey should be in same voltage and resistance. Immediately after the battery is connected, the board is usually activated to have an output. B+ is the positive batter, B- is the negative battery negative Notes: polarity should be connect correctly, or ban the chip. Parameter: 1. Input model; Type C (support protocol fast charge input), Apple Lightning Type-C (does not support protocol fast charge input) 2, input voltage; 5-12V (fast charge protocol automatically adjusts the voltage) 3, charging current; 3100mah (fast charge protocol automatically adjusts the current) 4, charging method; automatic adaptation 5, output 1 USB fast charge mother, 2 USB normal 5V output. 6, the output voltage is; 5V-12V ± 0.3V (fast charge protocol automatically adjusts the voltage) 7, the output USB rated current is; 3.1A (fast charge protocol automatically adjusts the current) 5V3.1A/9V2.0A/12V1.5A 8, discharge efficiency: >85% Notes: the module max output power is 18 watt. IP5328 features: 1. Support multiple USB at the same time: 2 USB A port output, 1 USB B port input, 1 USB C port input / output. 2. Quick charge specifications: Any port supports fast charge, integrated QC2.0 / QC3.0 output fast charge protocol, integrated FCP input / output fast charge protocol, integrated AFC input / output fast charge protocol, integrated SFCP input / output Fast charge protocol, integrated MTK PE + 1.1 & 2.0 output fast charge protocol, integrated USB C DRP protocol, support input and output fast charge, compatible with BC1.2, Apple, Samsung mobile phone fast charge. Can not sure all phone quick charging, it not support, it output 5V normal charging. 3. Charging specifications: The battery terminal charging current can be up to 5.0A, adaptive charging current adjustment, and supports 4.20V, 4.35V, 4.40V, 4.50V batteries. 4. Discharge specifications: Output current capability: 5V: 3.1A 9V: 2.0A 12V: 1.5A, synchronous switch discharge 5V 2A efficiency is more than 95%, support line compensation. 5. Power display: Built-in 14bit ADC and fuel gauge, support 1/2/3/4 LED power display, intelligent identification LED power display lamp number, adjustable battery power curve, the display light is more uniform. 6. Other functions: built-in lighting driver, automatic detection of mobile phone insertion and removal, fast charge status indication, support for buttons, intelligent identification of load, light load automatically enters standby. 7. Multiple protection and high reliability: input overvoltage, undervoltage protection, output overcurrent, overvoltage, short circuit protection, battery overcharge, overdischarge, overcurrent protection, IC overtemperature protection, Package Include: 1pcs x QC3.0 Charger Module ( battery and cover not included ) Payment We only accept payment via Paypal. The buyer is responsible for any applicable import duties and local taxes. Usually there's no any charges for small parcel. But please verify with your customs before making your purchase. Delivery details The items will be shipped within 1~2 working days after your payment is received and cleared.(excluding Saturday, Sunday & Holiday) All items will be shipped to your Paypal address, so please make sure to provide us with the correct, precise, detailed shipping address. The Delivered time to USA buyer is about 7~20 days, other country about 15~35 days delivered. Notes: Please contact us in advance if you need faster trackable or express shipping service. Terms of sales All the items will be tested before shipping. Buy them with the confidence! We maintain the excellent service standards and strive for 100% customer satisfaction and Positive feedback. If you have any problem, please do feel free to contact us before leave Neutral or Negative feedback, so that we can satisfactorily address your concerns. Return We afford all cost if it's our fault. Exchange or refund. Contact us We strive to provide you with the best service, reply your question within 24 hours. Business time: 9:30~21:30 (GMT+8) exclude the weekend and holidays. Contact us
