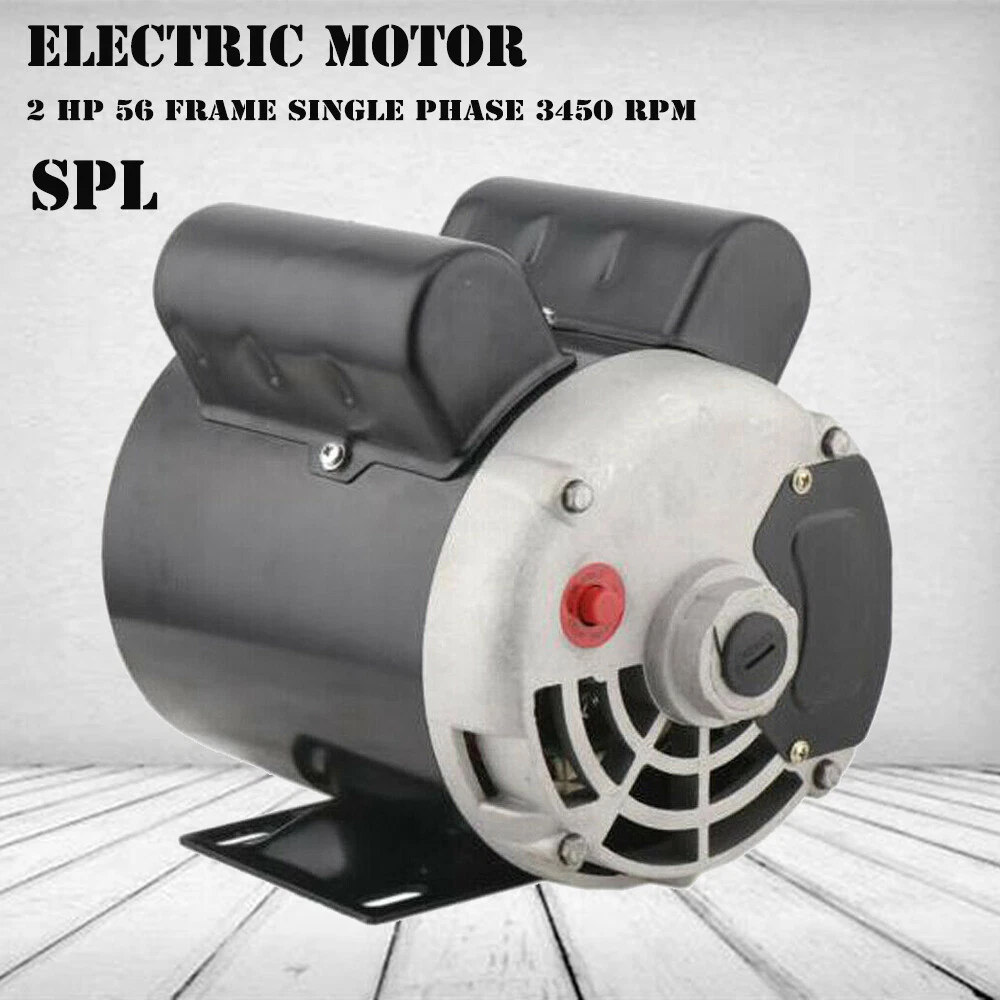

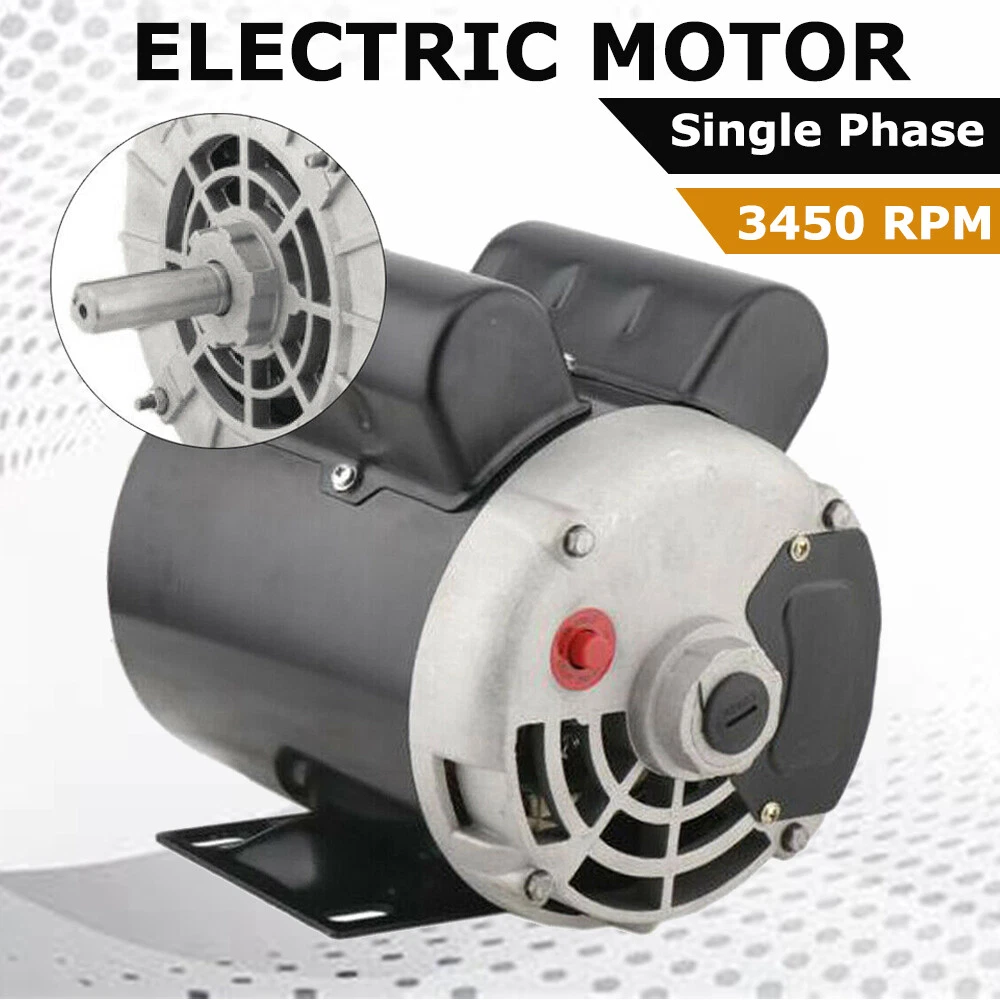

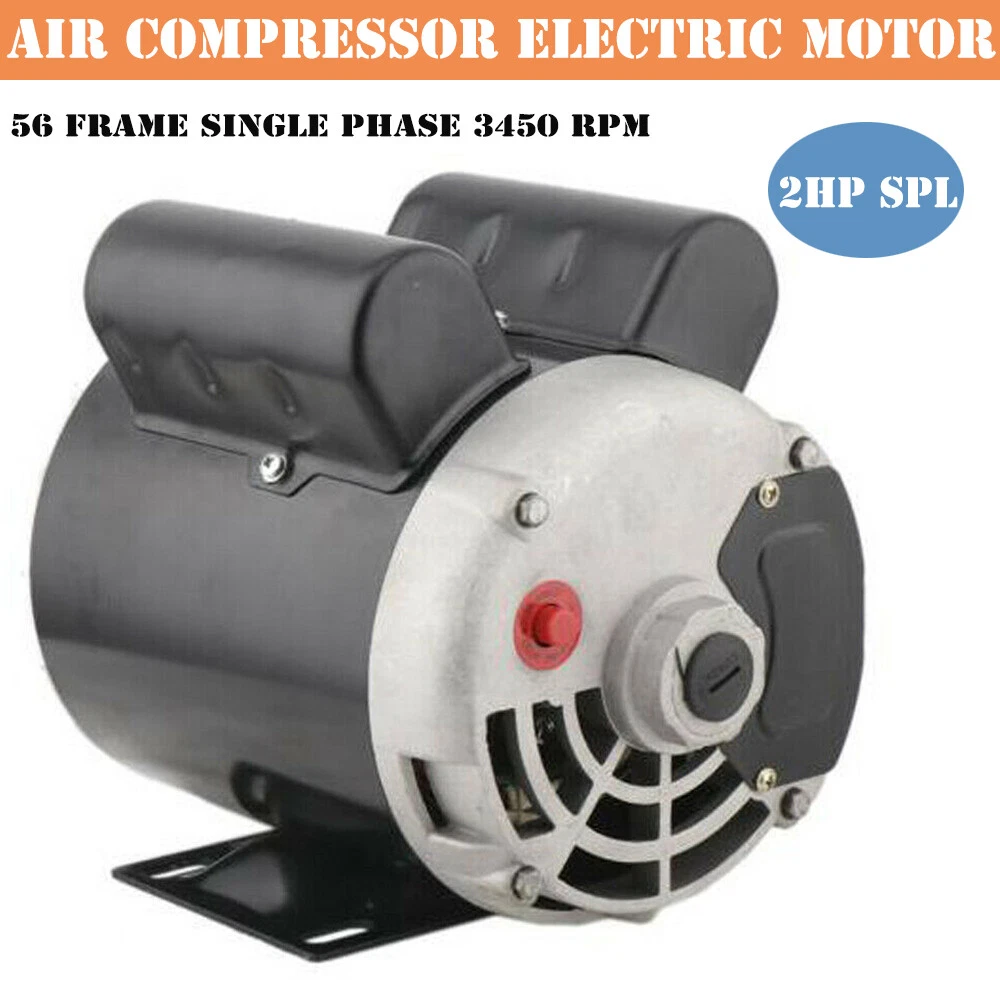

SPL Air Compressor Electric Motor 56 Frame 3450 RPM 5/8" Shaft One Phase 2HP
$ 69.34
Description
Product function description: Specification: Specifications: • Open Drip Proof (ODP) Enclosure • Single Phase • 2 HP • 3450 RPM • 60hz • 115/230 Volts • AMB 40 °C • Frame: 56 • Duty: Cont. Compressor • Service Factor: 1.0 • Full Load Amps: 15/7.5 • INS.CL: F • Non-Reversible, CCW Rotation Facing Shaft • Thermally Protected • Overall Height: 8.5" • Overall Width: 6.35" • Shaft Diameter: 5/8" • Shaft Length:1.88" • Standard Size Keyway: 3/16" • Features Manual Reset Overload Protection Package includes: 1*Air Compressor SPL Air Compressor Electric Motor 56 Frame 3450 RPM 5/8" Shaft One Phase 2HP Description 2 HP SPL 3450 RPM Air Compressor 60 Hz Electric Motor 115/230V 5/8" Keyed Shaft Product Function Description: Specifications: • Open Drip Proof (ODP) Enclosure • Single Phase • 2 HP • 3450 RPM • 60hz • 115/230 Volts • AMB 40 °C • Frame: 56 • Duty: Cont. Compressor • Service Factor: 1.0 • Full Load Amps: 15/7.5 • INS.CL: F • Non-Reversible, CCW Rotation Facing Shaft • Thermally Protected • Overall Height: 8.5" • Overall Width: 6.35" • Shaft Diameter: 5/8" • Shaft Length: 1.88" • Standard Size Keyway: 3/16" • Features Manual Reset Overload Protection Key Features: • Here we offer you our brand new Air Compressor Duty Electric Motor • High quality Material Steel • High Starting Torque • Rigid Base • Lubricated with Low Temperature grease • Able to withstand harsh industrial applications. • Powerful Ac Motor • Totally Enclosed Fan • Manual Overload Protection • Mounting Bracket Included • 2 HP SPL 3450 RPM, 56 Frame, 115/230V , 15/7.5Amp 5/8" Shaft, Single Phase Air Compressor Electric Motor • Open dripproof Single phase Full Load amps: 15/7.5Amp, 115/230V 2 HP SPL 3450 RPM 5/8 Shaft • Reduced starting amperage design to ensure the reduced voltage starting at rated load. • Equipped with UL approved Manual thermal overload, capacitors and high quality ball bearings to ensure the lifetime. • Open drip-proof is better used in environment that are relatively clean and dry environments. Special design for Air Compressor duty. CCW only. • Special design for Air Compressor duty. • Motor is Non-Reversible CCW (Counter Clockwise) ONLY. • Default settings are default low-voltage current. If the need to use high-voltage current, please replace the use of high voltage wiring. Package includes: 1*2 HP SPL Compressor Duty Electric Motor Welcome to the ycmjbestgo ! We are committed to providing customers with better and more favorable products ! If you have any questions, please feel free to contact us ! Thank you for your support ! Welcome to the ycmjbestgo ! We are committed to providing customers with better and more favorable products ! If you have any questions, please feel free to contact us ! Thank you for your support ! Payment Delivery details Terms of sales About us Contact us Payment We accept ebay payment 。 Fees such as import duties, taxes are not included in the item price or shipping costs. These charges are the buyer's responsibility. Delivery details Shipping: 2-9 working days to: USA Terms of sales We maintain high standards of excellence and strive for hundred percent customer satisfaction. Feedback is very important to us. We hope that you contact us immediately before you give neutral or negative feedback, so that we can address your concerns. It is impossible to address issues if we do not know about them! About us Your satis faction is our ultimate goal. We work hard to earn your trust and future business. Our certified technicians have tested each item before shipping. The unit comes with 1 year limited warranty on all manufacturing defects. a) If you receive a defective item, you may return it or ask for a discount. Please contact us within 14 days after you receive the package. b) What you returned must be intact and in its original packaging as re? u. Customer is responsible for shipping costs of the returned item. c) We will cover the cost of shipping back t with the shipping rate indicated in the registration page. We will send you a new unit or refund the full payment you paid. Thank you. Contact us Business Hour Business Hour: Monday To Friday: 8:30 AM to 5:00 PM (Beijing China time) Due to time zones, our reply to your questions may not be immediately. But within above working time, we will reply your email within 24 hours. If it's non-workdays, please kindly be patient and wait till Monday. Please contact us with ebay message. Please feel free to contact us if you have any questions. Monday To Friday: 8:30 AM to 5:00 PM (Beijing China time) Due to time zones, our reply to your questions may not be immediately. But within above working time, we will reply your email within 24 hours. If it's non-workdays, please kindly be patient and wait till Monday. Please contact us with ebay message. Please feel free to contact us if you have any questions. Country/Region of Manufacture Unknown Featurtes Made of high quality material,Durable Full Load Amps 15/7.5 Duty Cont. Compressor INS.CL F Part Type: 2 Hp Air Compressor Suitable For Air Compressor Applications Model Suitable For: Air Compressor Applications MPN Does Not Apply Horsepower 2HP Amperage (7.5 FLA @ 240V) (15 FLA AT 120V) Phase One / Single Phase Voltage 120V/240V (NOT SUITED FOR 208V INCOMING) RPM 3450 Frame 56 Shaft Diameter 5/8" Keyed shaft Shaft Length 1.88" Rotation CCW WHEN VIEWED FROM SHAFT END Frequency 60hz Service Factor 1.0 Enclosure ODP / Open Drip Proof Overload Yes / Manual reset button AC Phase Single Phase Brand Unbranded Type Air Compressor
