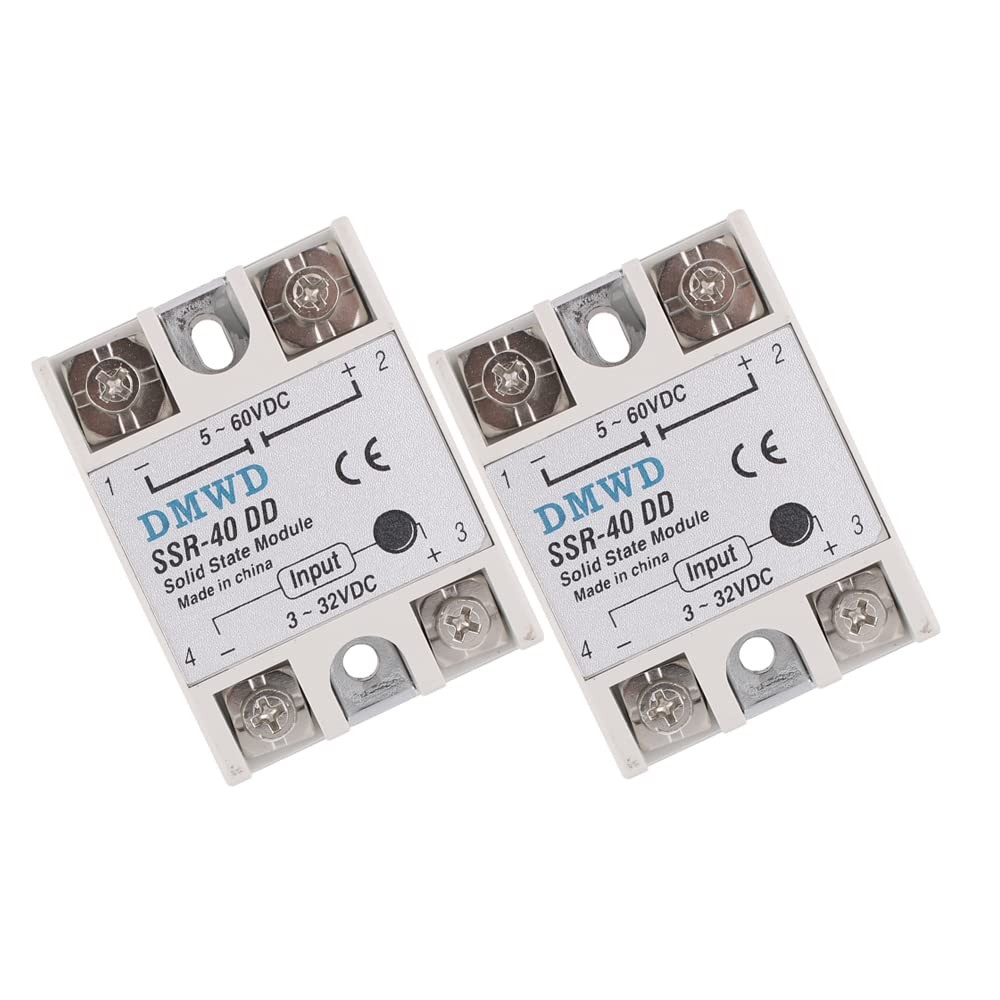

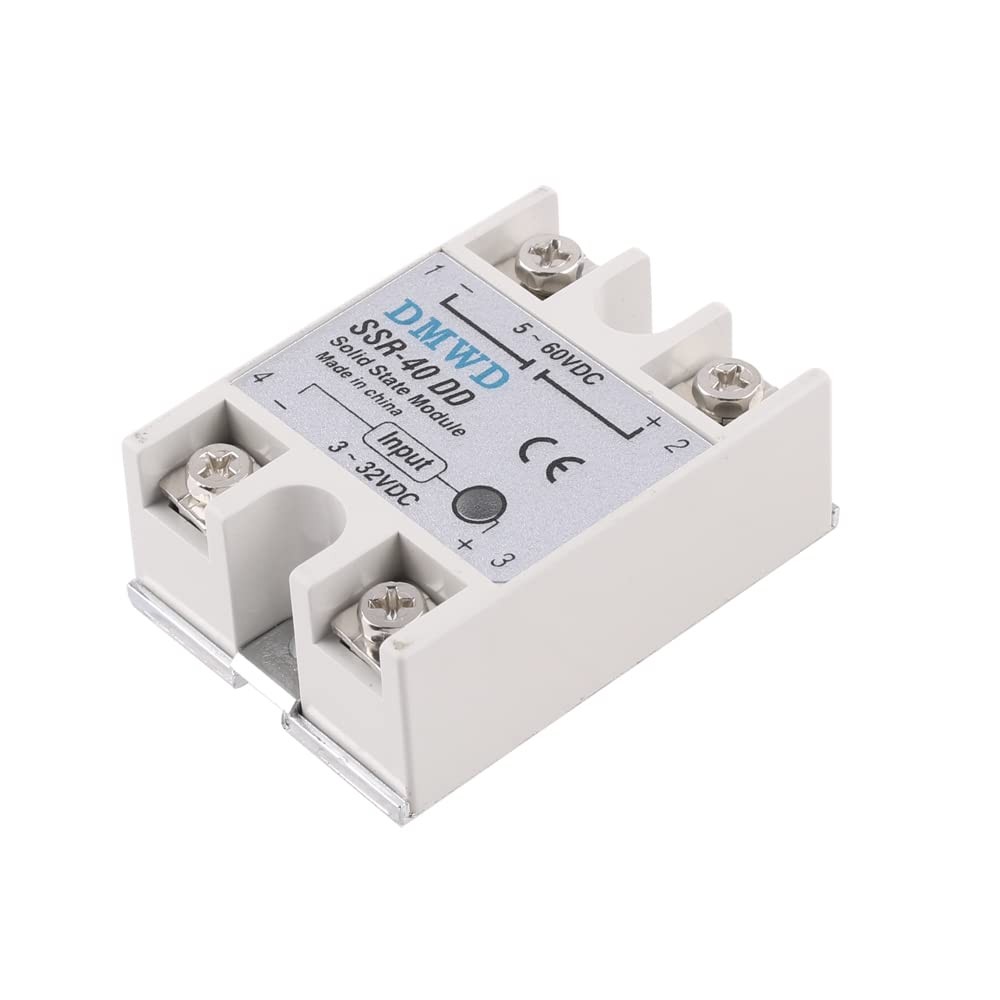

SSR-40DD Solid State Relay DC to DC (Input 3-32V, Output 5-60V) with Heat Sin...

$ 8.3

Package Dimensions LxWxH: 3.86x3.35x2.13 Inches Maximum Switching Current: 40.0 Maximum Switching Voltage: 60.0 Item Shape: Rectangle Coil Resistance: 50.0 Contact Type: Normally Open Model Number: Ssr-40Dd +Sanrepian EAN: 0797153407670 Coil Voltage: 3.0 Country of Origin: China Brand: Dmwd Weight: 0.42 Pounds material: Silver Alloy Contact Current Rating: 40.0 ISBN: 0797153407670 Measurement System: Metric Specification Met: Ce, Ul UPC: 797153407670 Mounting Type: Panel Mount Wattage: 2400.0 Current Rating: 40.0 Connector Type: Screw Size: 40A Part Number: Ssr-40Dd +Sanrepian Operation Mode: Automatic Style: Dc To Dc Contact Material: Silver Alloy model: Ssr-40Dd +Sanrepian

Description

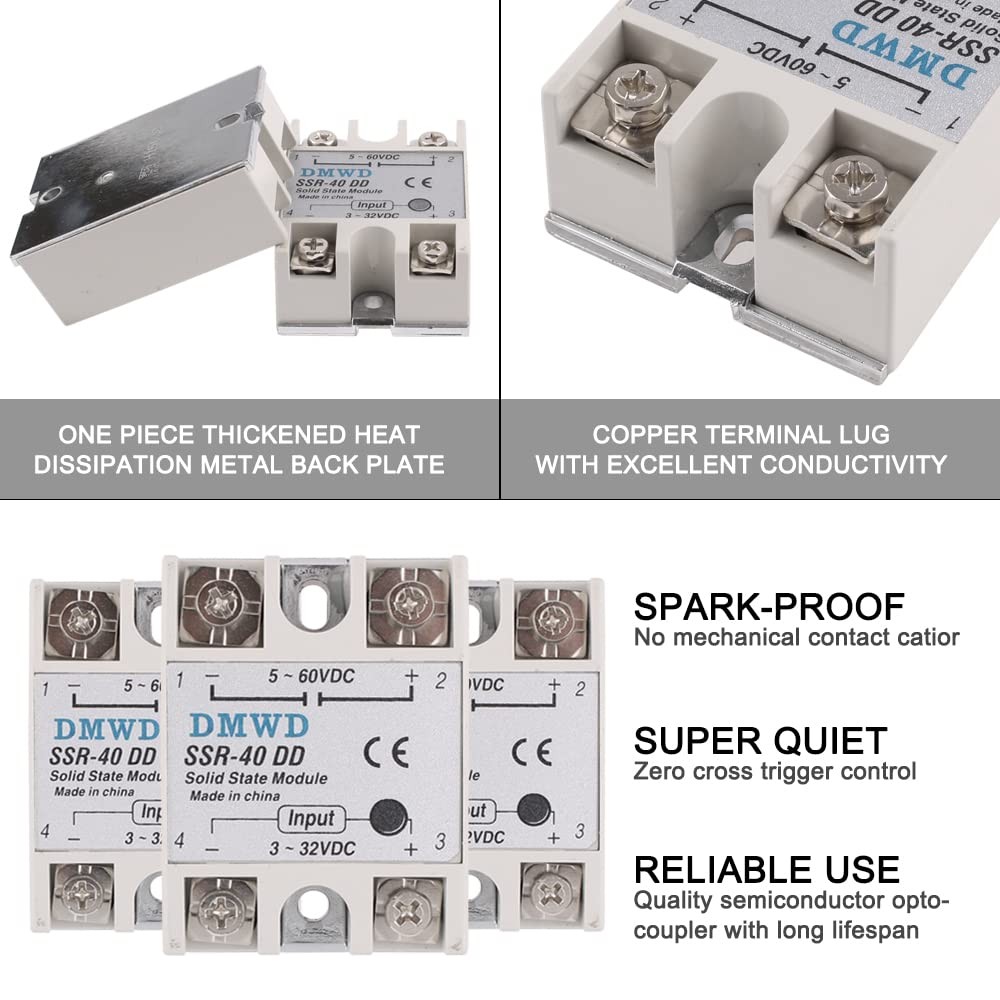

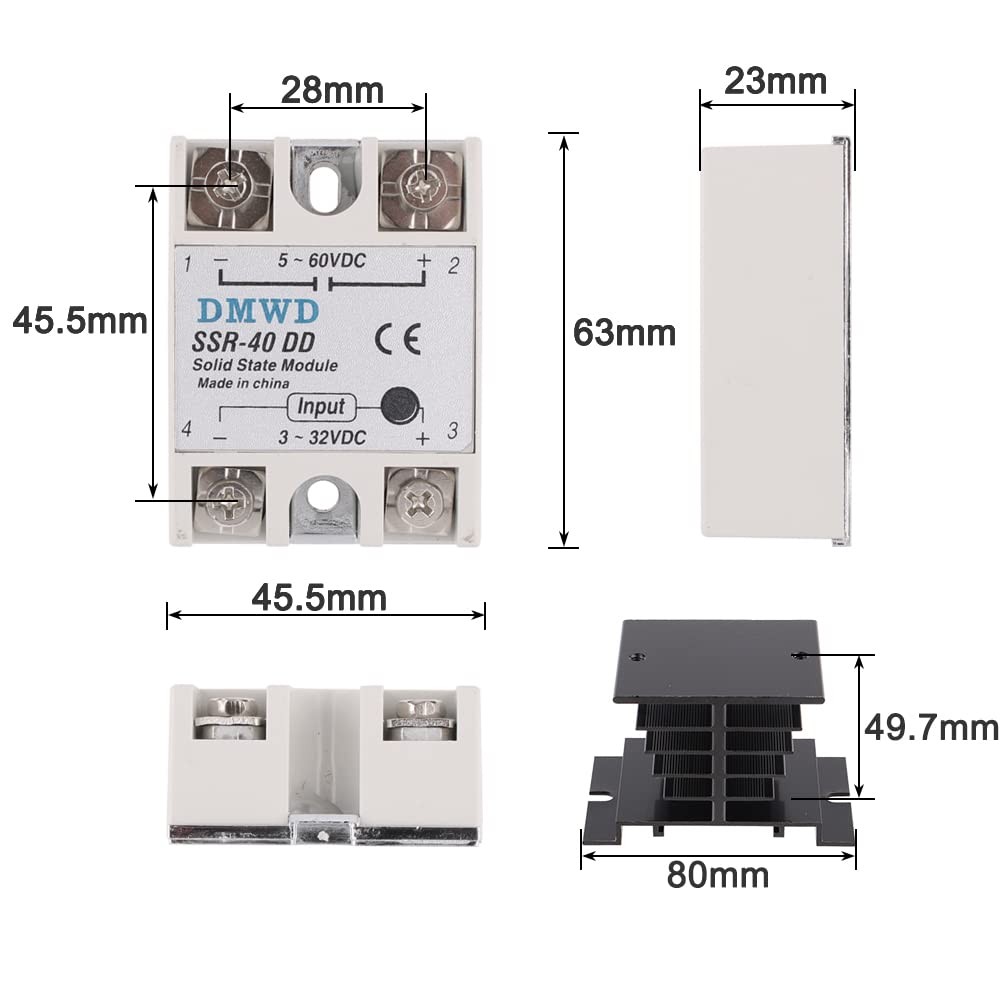

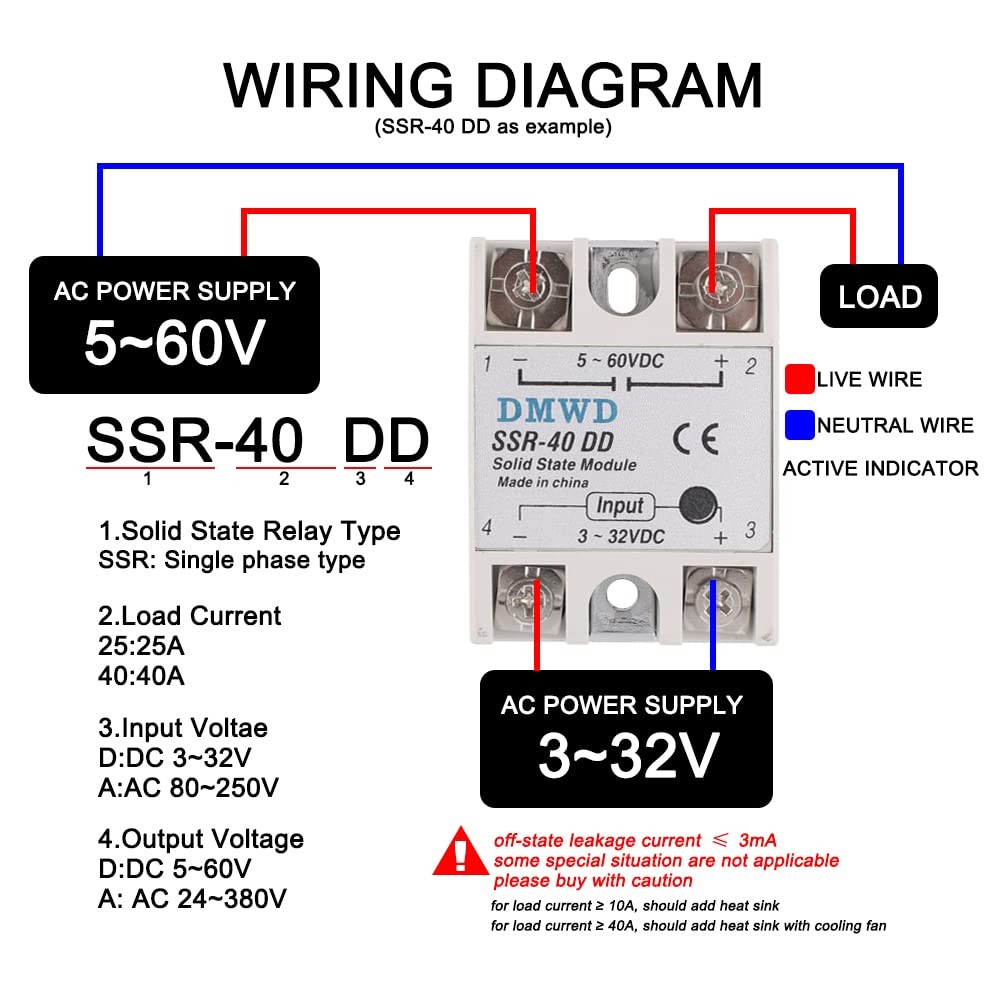

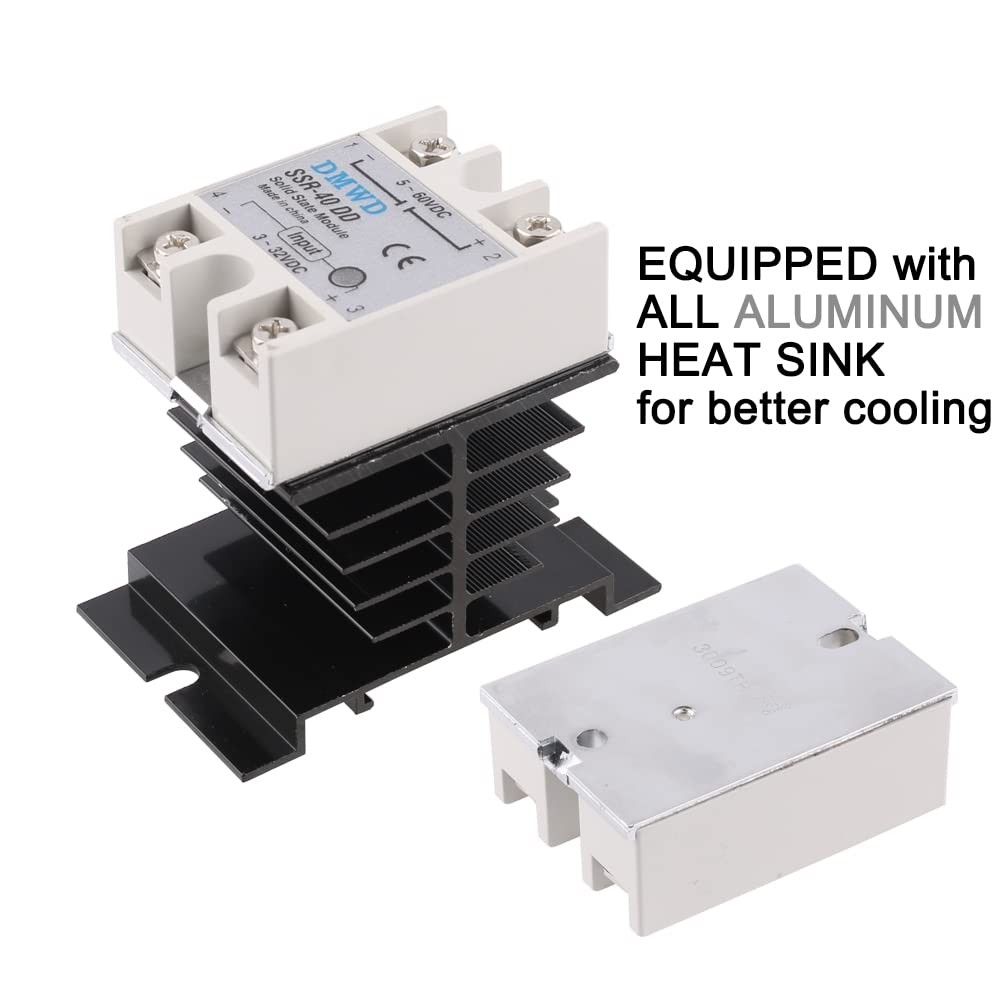

SSR-40DD Solid State Relay DC to DC (Input 3-32V, Output 5-60V) with Heat Sin.... 40A 3-32V DC to DC solid state relay (SSR) features high structural strength, good impact resistance, and strong shock resistance. SSR(60x45x23mm/95g). DMWD Low cost single phase solid state relaySSR-40DD. DMWD Low cost single phase solid state relay SSR-40DD Input voltage 3-32V DC Load voltage 5-60V DC Load current 40Amp 40A 3-32V DC to DC solid state relay (SSR) features high structural strength, good impact resistance, and strong shock resistance. The SSR offers a reliable switching the commercial and industrial loads, such as computer peripheral interface device, printing machine, molding machine, food machine, packaging machine, and so on. Built in RC absorption Photoelectric isolation SCR output LED indicator for operation status Panel mount Zero-crossing switch type UL Approved, CE Compliant to EN60950-1 Note: * When the load current is higher than 10A, a heat sink must be installed to the solid state relay, or the SSR relay should be mounted on a metal base plate with heat dissipation effect, and the thermal grease is applied between them. * When the load current is 40A or more, a fan cooling radiator or water cooling radiator must be equipped. * Heat sink is included. Package Content: 1 x Solid State Relay 1 x All Aluminium Heat Sink Size/Weight: SSR(60x45x23mm/95g) Heat Sink(78*50*50mm/80g) Warranty: Free new replacement in 5 years, Have faith in quality Model: SSR-40DD, single phase Solid State Relay 60A DC to DC control, CE Compliant to EN60950-1Input voltage 3-32V DC, Load voltage 5-60V DC, Max load current 40 AmpRugged epoxy encapsulation construction, high isolation over than 50MΩ(500VDC), high dielectric over than 2.5KV, output snubber circuit protectionNo EMI/EFI & Low surge by Zero Cross Trigger method, specially suited to control sensitive, capacitive and Non-saturated inductive loadsSSR switches use semiconductor component acts as a switch for the relay, no moving parts inside, no mechanical wear, no action noise, no mechanical failure, and high reliability
