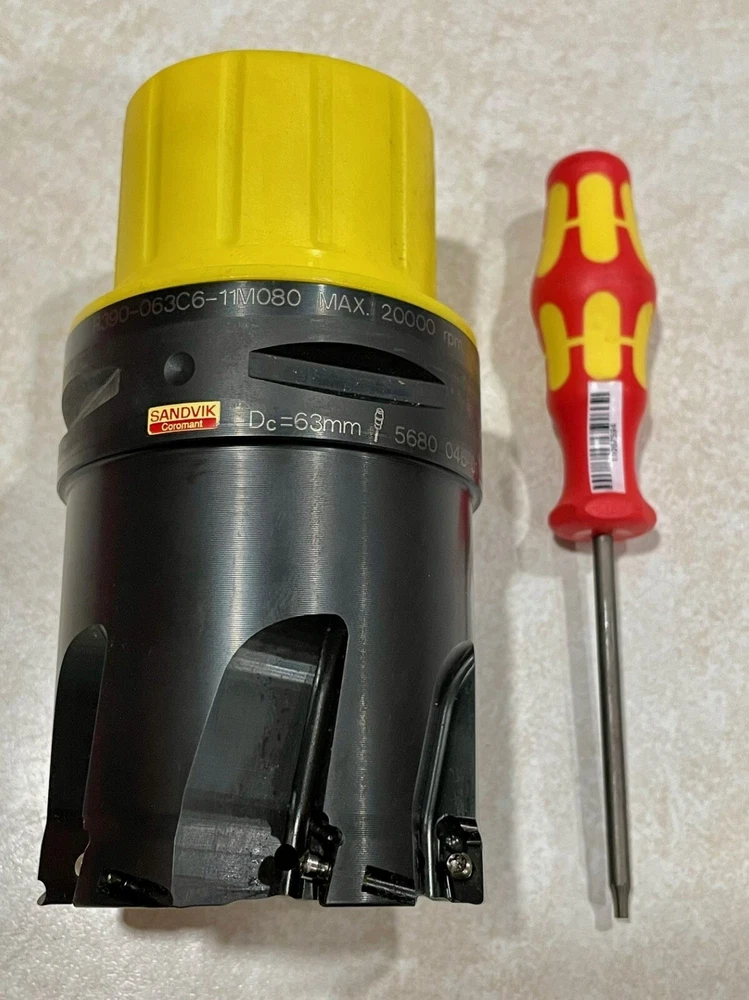

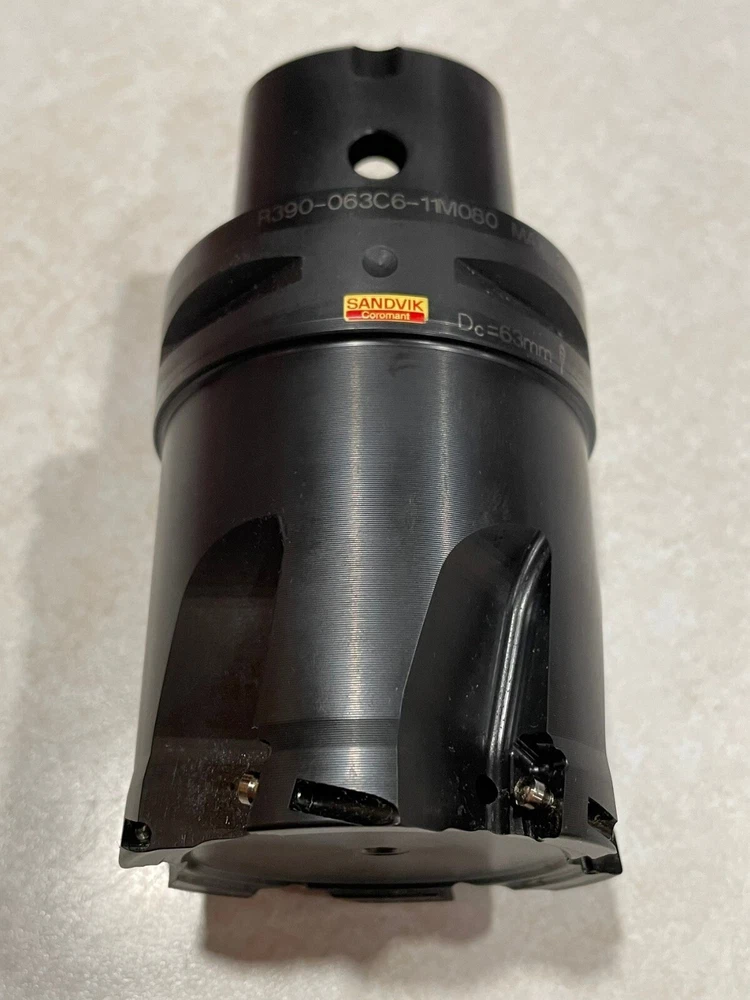

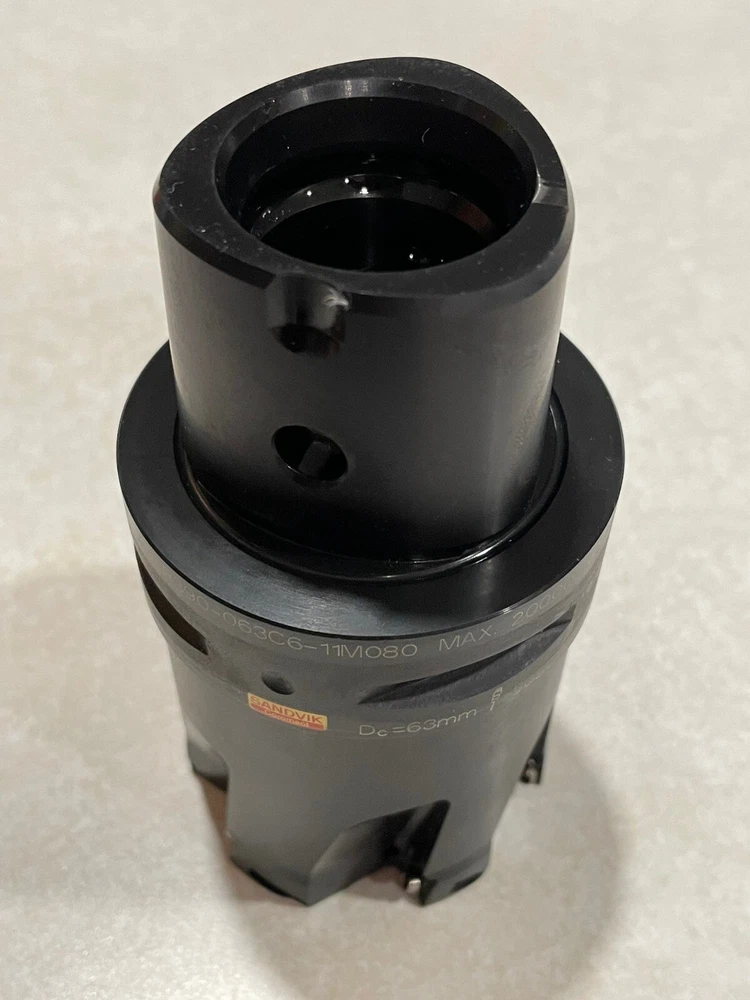

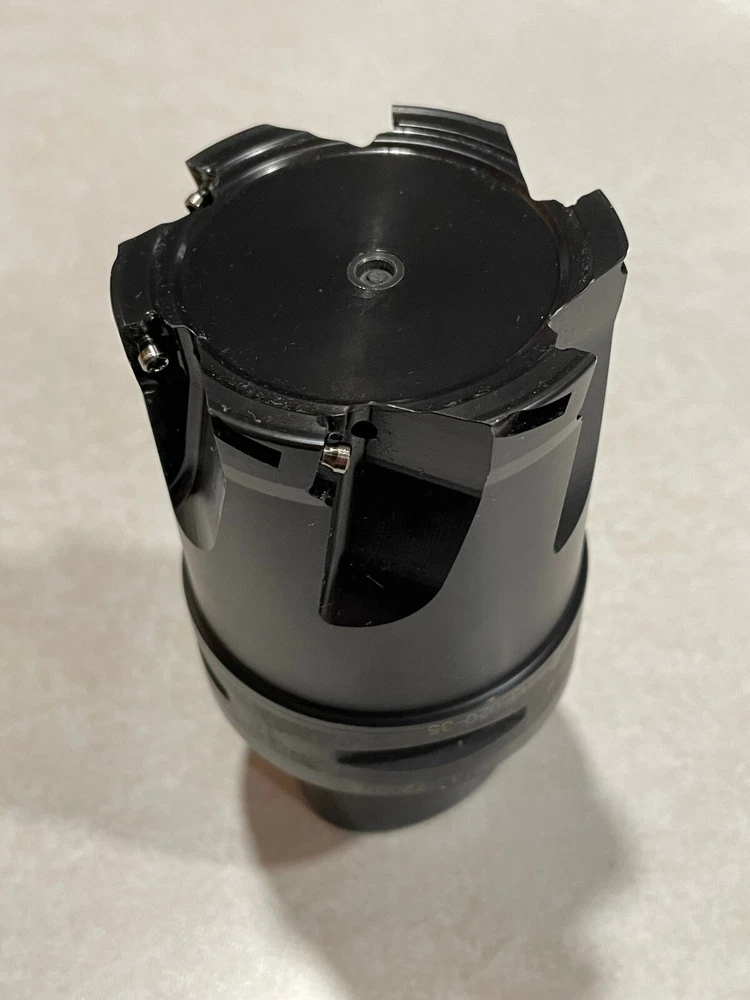

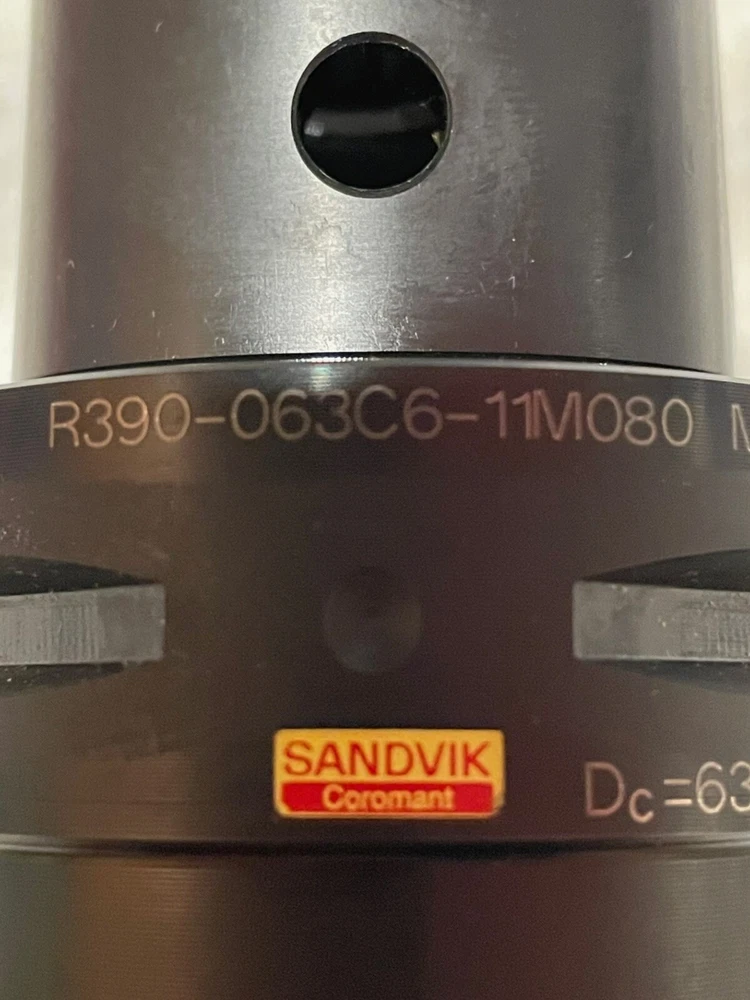

Sandvik R390-063C6-11M080 CoroMill 390 Milling Cutter Capto C6
$ 422.4
Description
New Sandvik R390-063C6-11M080 CoroMill 390 Milling Cutter Capto C6. Specs below: Cutting diameter (DC) 2.4803 inch Tool cutting edge angle (KAPR) 90 deg Cutting item count(CICT) 6 Clamping type code(MTP) S: clamp with screw through hole Insert type(CUTINT_MASTER) CoroMill 390 -size 11 (R390-11) Depth of cut maximum (APMX) 0.3937 inch Working engagement ratio maximum(AERMX) 1 Maximum ramping angle (RMPX) 1.2 deg Maximum plunge depth(AZ) 0.0394 inch Usable length (LU) 1.5748 inch Peripheral effective cutting edge count(ZEFP) 6 Connection - machine side(ADINTMS) Coromant Capto (bolt and segment clamping) -size C6 Hand (HAND) R Coolant entry style(CNSC) 3: axial concentric and radial entry Coolant pressure(CP) 145.0377 lbf/in2 Connection diameter machine side(DCONMS) 2.4803 inch Functional diameter(DFC) 1.7323 inch Standard number(STDNO) ISO26623-1 Functional length(LF) 3.1496 inch Radial rake angle(GAMF) -1.1 deg Axial rake angle(GAMP) 22.1 deg Torque(TQ) 0.8851 Body material(BMC) Steel Rotational speed maximum(RPMX) 20,700 1/min Weight of item(WT) 4.2836 lb
