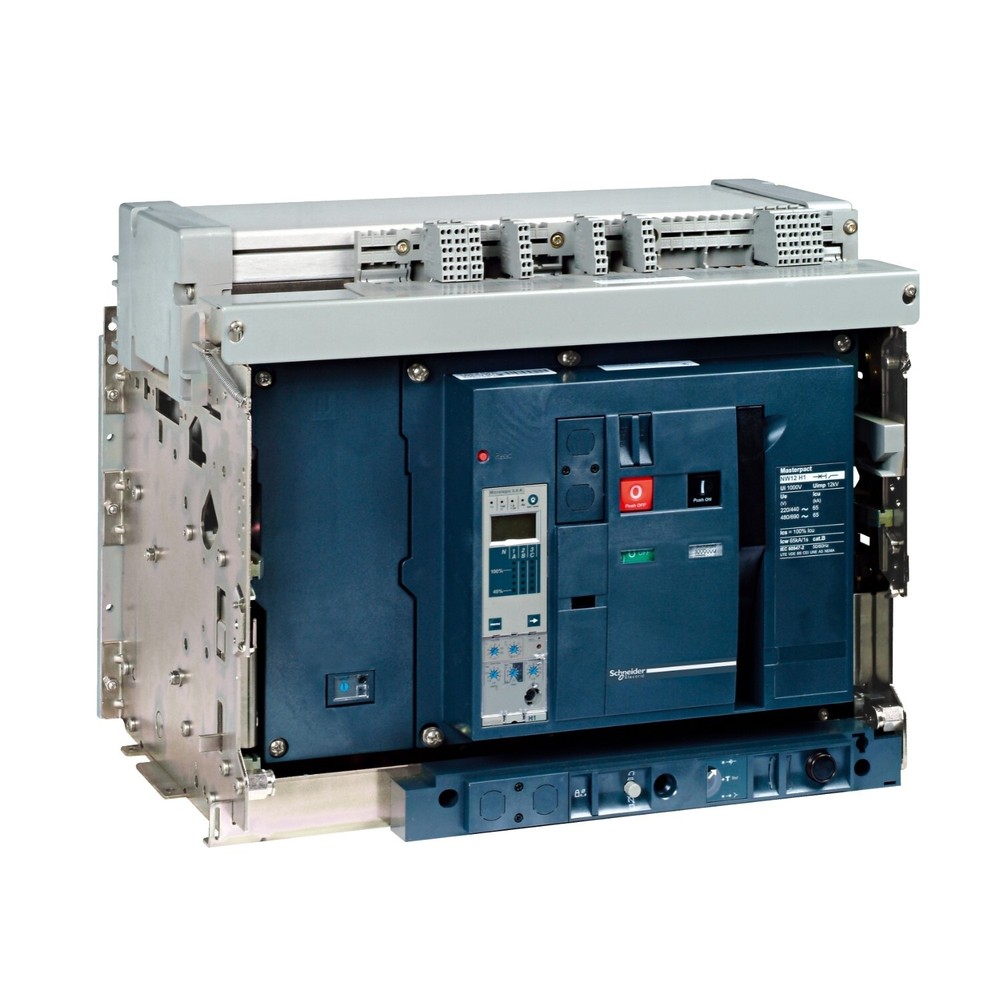

Schneider NW16H14D2EHHXX Circuit Breaker - 1600A, 4P - Masterpact NW16H1 ACB

$ 2972.64

Number of Poles: 4P Brand: Schneider Maximum Amperage: 1600A Model: NW16H14D2EHHXX Type: Circuit Breaker MPN: NW16H1 Current Rating: 1600A Packaging: Original Box Number in Pack: 1 Item Application: Electrical Wiring Mounting Style: Drawout Manufacturer: Schneider

Description

Schneider NW16H14D2EHHXX Circuit Breaker - 1600A, 4P - Masterpact NW16H1 ACB Main Specifications Range MasterPacT Product name MasterPact NW Circuit breaker name MasterPact NW16H1 Product or component type Circuit breaker Device application Power distribution protection Poles description 4P Neutral position Left Control unit Without control unit [In] rated current 1600 A at 40 °C Performance type H1 65 kA 440 V AC [Ue] rated operational voltage 690 V AC 50/60 Hz Suitability for isolation Yes conforming to EN/IEC 60947-2 Selectivity category Category B Control type Push-button Mounting mode Drawout Complementary [Icu] rated ultimate short-circuit breaking capacity 65 kA at 220/415 V AC 50/60 Hz 65 kA at 440 V AC 50/60 Hz 65 kA at 525 V AC 50/60 Hz 65 kA at 690 V AC 50/60 Hz [Ics] rated service breaking capacity 65 kA at 220/415 V AC 50/60 Hz 65 kA at 440 V AC 50/60 Hz 65 kA at 525 V AC 50/60 Hz 65 kA at 690 V AC 50/60 Hz [Icw] rated short-time withstand current 65 kA 1 s 36 kA 3 s [Icm] rated short-circuit making capacity 143 kA 220/415 V AC at 50/60 Hz 143 kA 440 V AC at 50/60 Hz 143 kA 525 V AC at 50/60 Hz 143 kA 690 V AC at 50/60 Hz Sensor rating 800 A 1600 A [Ui] rated insulation voltage 1000 V AC 50/60 Hz [Uimp] rated impulse withstand voltage 12 kV Power dissipation in W 390 W Maximum breaking time 25 ms Maximum closing response time 70 ms Mounting support Backplate Rails Upside connection Front Rear Downside connection Front Rear Connection pitch 115 mm Mechanical durability 12500 cycles without maintenance 25000 cycles with maintenance Electrical durability 10000 cycles 440 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-2 10000 cycles 690 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-2 AC-23A: 10000 cycles 440 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-3 AC-23A: 10000 cycles 690 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-3 AC-3: 6000 cycles 440/690 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-3 Height 439 mm Width 556 mm Depth 395 mm Net weight 120 kg Standards EN/IEC 60947-1 EN/IEC 60947-2 Product certifications CE CCC EAC
