Siemens SENTRON 5SJ4113-7HG41 Miniature Circuit Breaker | 13A, 1-Pole
$ 19.8
Description

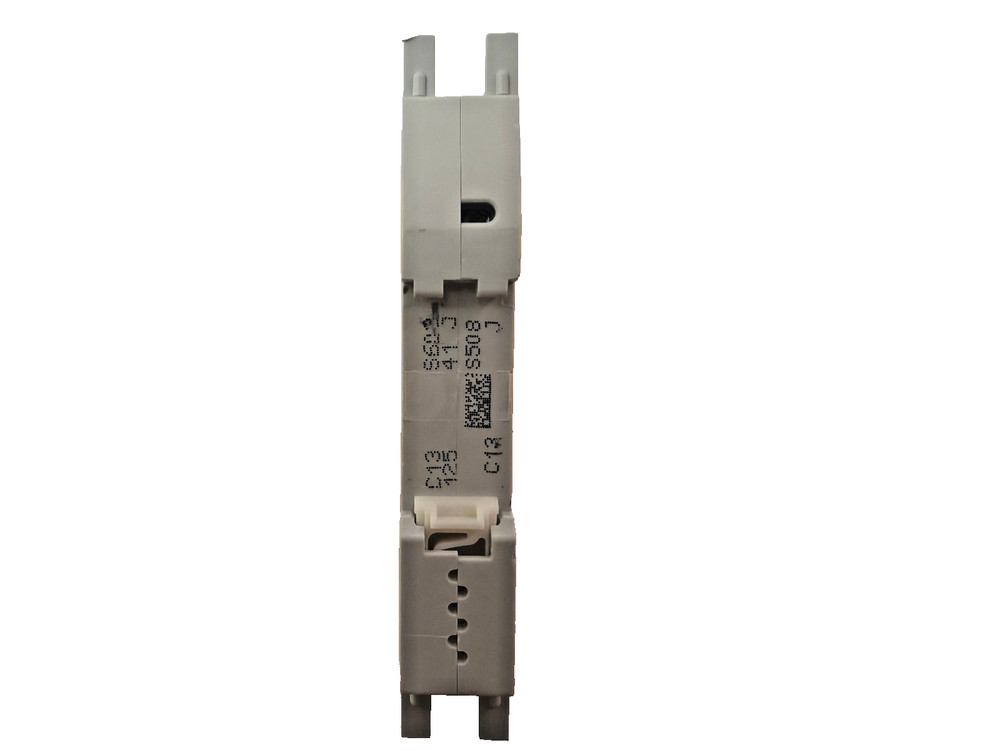

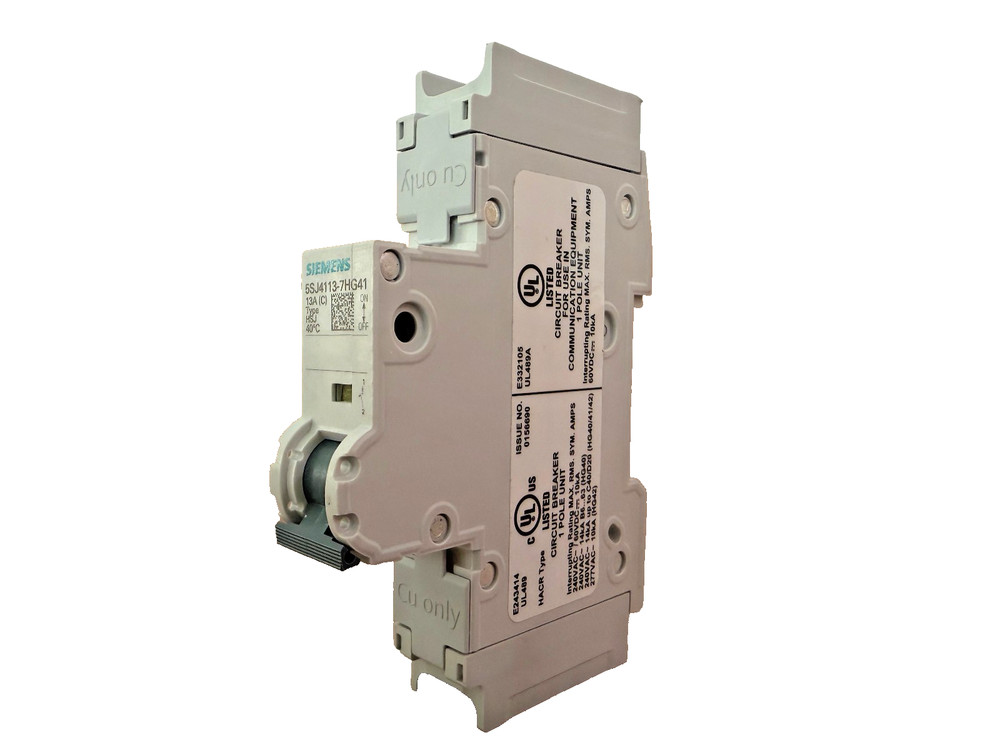

Siemens SENTRON 5SJ4113-7HG41 Miniature Circuit Breaker | 13A, 1-Pole. Rated Current: 13A. Switching Capacity Current: 10kA (EN 60898) / 15kA (IEC 60947-2). Vibration Resistance: 50 m/s 2 at 25 to 150Hz. Conductor Range: Supports finely stranded conductors with core end processing from 0.75 mm 2 up to 25 mm 2. This listing is for an unused Siemens 5SJ4113-7HG41 miniature circuit breaker from the SENTRON product line . This 1-pole breaker is rated for 13A and is designed for branch circuit protection in infrastructure and industrial applications according to UL 489 standards . While the unit does not include the original factory box, it is in unused condition and ready for installation. Product Specifications Brand: Siemens SENTRON Part Number: 5SJ4113-7HG41 Number of Poles: 1-Pole (1P) Tripping Characteristic: Class C Rated Current: 13A Maximum Operating Voltage (AC): 240V (per UL 489 and CSA C22.2 No. 5-02) Maximum Operating Voltage (DC): 60V (1-channel); 125V (2-channel) Breaking Capacity (Icn): 14kA (at AC according to UL 1077 and CSA C22.2 No.235) Switching Capacity Current: 10kA (EN 60898) / 15kA (IEC 60947-2) Mechanical Service Life: 10,000 typical operating cycles Technical Features Connection Interface: Combined terminals at both top and bottom for flexible wiring . Conductor Range: Supports finely stranded conductors with core end processing from 0.75 mm 2 up to 25 mm 2 . Tightening Torque: 3.5 N·m (31 lb·in) for screw-type terminals . Safety & Protection: Touch protection included, IP20 rated (IP0 in handle range), halogen-free, and silicon-free construction . Mounting: Standard DIN rail fastening method . Physical Design & Dimensions Height: 110 mm Width: 18 mm (1 modular width unit) Depth / Installation Depth: 70 mm Net Weight: 171 g Operational Environment Ambient Temperature (Operation): − 25 °C to + 55 °C Ambient Temperature (Storage): − 40 °C to + 75 °C Humidity: Maximum 95% humidity during operation Vibration Resistance: 50 m/s 2 at 25 to 150Hz
