Siemens SENTRON 5SJ4313-7HG42 Miniature Circuit Breaker | 13A, 3-Pole
$ 39.6
Description

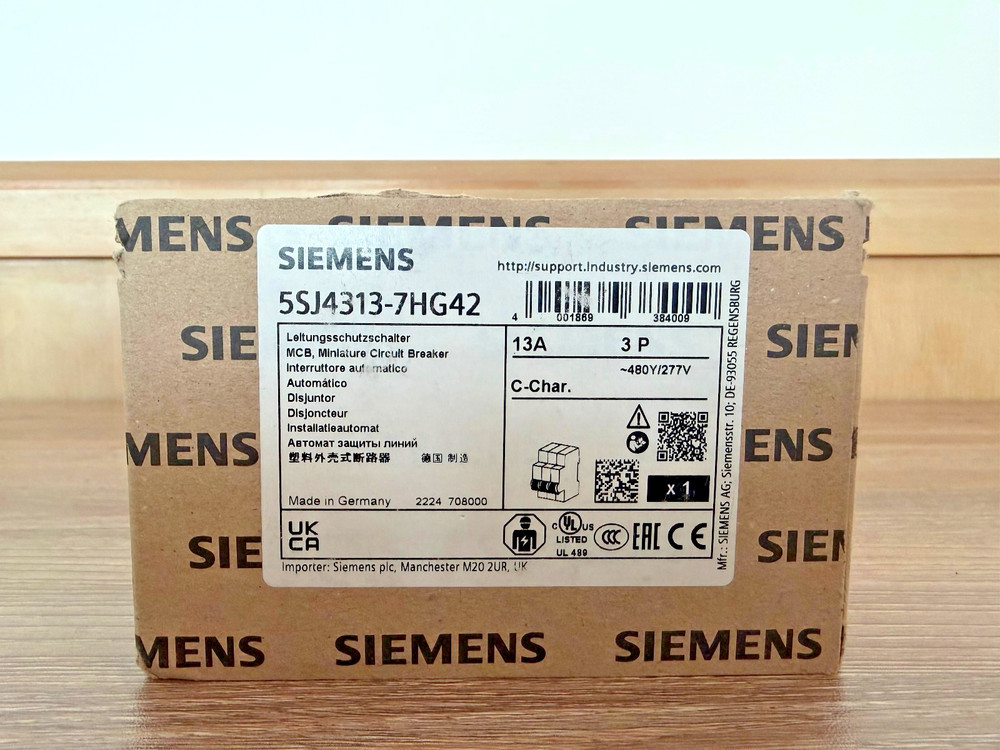

Siemens SENTRON 5SJ4313-7HG42 Miniature Circuit Breaker | 13A, 3-Pole. Rated Operational Current: 13A. Vibration Resistance: 50 m/s² at 25 to 150Hz. Conductor Range: Supports finely stranded conductors with core end processing from0.75 mm² up to25 mm². Safety & Protection: Touch protection included, IP20 rated (IP 0 in handle range), halogen-free, and silicon-free construction. Siemens SENTRON 5SJ4313-7HG42 Miniature Circuit Breaker | 13A, 3-Pole This listing is for a brand-new Siemens 5SJ4313-7HG42 miniature circuit breaker from the SENTRON product line. This 3-pole breaker is rated for 13A and is specifically designed for branch circuit protection in infrastructure and industrial applications, supporting 480Y/277V systems according to UL 489 standards. Product Specifications Brand: Siemens SENTRON Part Number: 5SJ4313-7HG42 Number of Poles: 3 (3P) Tripping Characteristic: Class C Rated Operational Current: 13A Maximum Operating Voltage (AC): 277V (per UL 489 and CSA C22.2 No. 5-02) Voltage Supply Suitability: 480Y/277V AC Breaking Capacity: 10kA (at AC according to UL 489) Mechanical Service Life: 10,000 typical operating cycles Technical Features Connection Interface: Combined terminals at both top and bottom for flexible wiring. Conductor Range: Supports finely stranded conductors with core end processing from 0.75 mm² up to 25 mm² . Tightening Torque: 3.5 N·m (31 lb·in) for copper (Cu) terminals. Safety & Protection: Touch protection included, IP20 rated (IP 0 in handle range), halogen-free, and silicon-free construction. Mounting: Standard DIN rail fastening for any mounting position. Physical Design & Dimensions Height: 121 mm Width: 54 mm (3 modular width units) Depth / Installation Depth: 70 mm Net Weight: 494 g Operational Environment Ambient Temperature (Operation): -25°C to +55°C Ambient Temperature (Storage): -40°C to +75°C Humidity: Maximum 95% humidity during operation Vibration Resistance: 50 m/s² at 25 to 150Hz
