Smart Electronic Mortise Lock M9134E with Precision Access Control
$ 263.95
Description

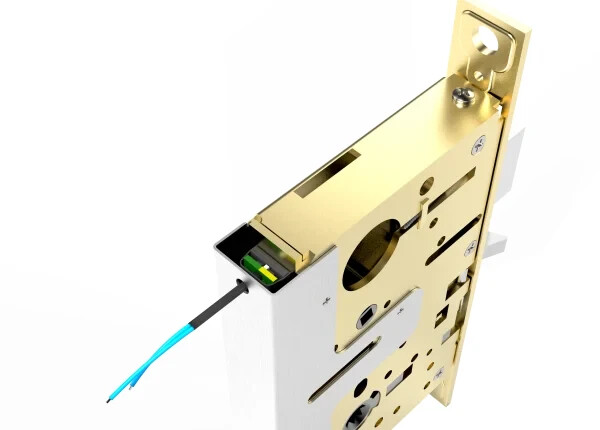

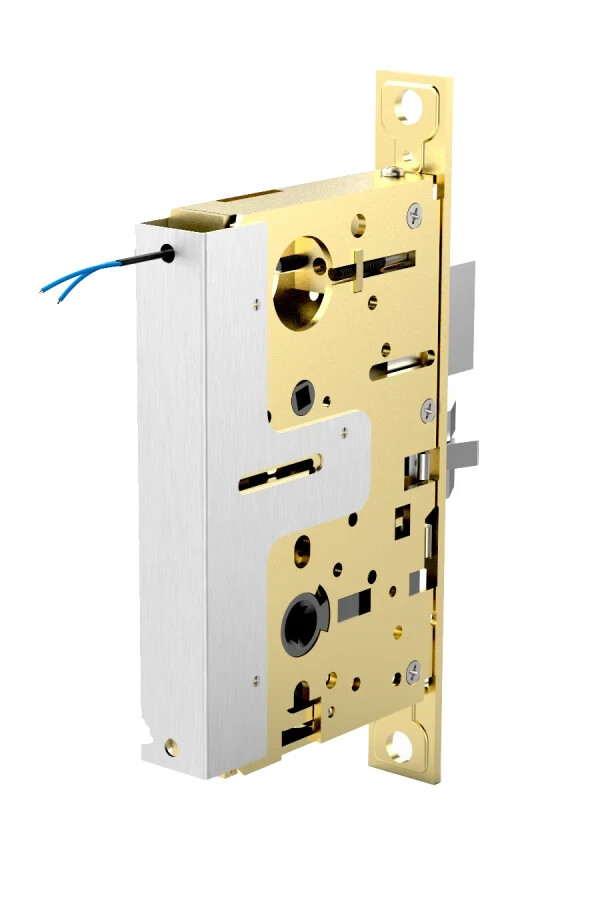

The Motor Drive Electrified Mortise Lock Mechanical Deadbolt offers efficient and flexible access control design with added security, featuring single action egress. Perfect for use with highly decorative trim (trim not included. LOCKBODY and STRIKE PLATE ONLY) - M9134E is for doors 1-3/4” minimum. - Backset: 2-3/4" for door stiles 4-1/2" or wider - Latch Bolt is made of brass, anti-friction type, 3/4" throw - Both 12-24V AC/DC - The lock features universal voltage (accepts between 11V - 30V) - Both fail safe and fail secure - 250mA MAX Inrush. - 10mA MAX Holding. - Non-polarized Leads. The brand name on the face plate may vary. Handing on request Write for more details M9134E Electric Control with Mechanical Deadbolt Security: - Deadbolt is MANUALLY projected/retracted by key outside or thumb turn inside. - When electronically UNLOCKED, outside lever will simultaneously retract latch and deadbolt. - Inside lever always free, retracting latch and deadbolt simultaneously. - Auxiliary latch deadlocks latch bolt. - FAIL SECURE OPERATION: Outside lever unlocked when power is applied and locked when power is removed. Lockset will lock in the event of power failure. - FAIL SAFE OPERATION: Outside lever locked when power is applied and unlocked when power is removed. Lockset will unlock in the event of power failure. M9134E Lock is furnished as FAIL SECURE and can be changed to FAIL SAFE via the switch on the back of the lock. More details at the manufacturer's website: https://accuratelockandhardware.com/product/m9134e-motor-drive-electric-deadbolt-mortise-lock/
This lock is fantastic! Installation was straightforward and it works flawlessly with my decorative hardware. The universal voltage and dual fail options provide great flexibility and peace of mind. Highly recommend for anyone upgrading their access control!
