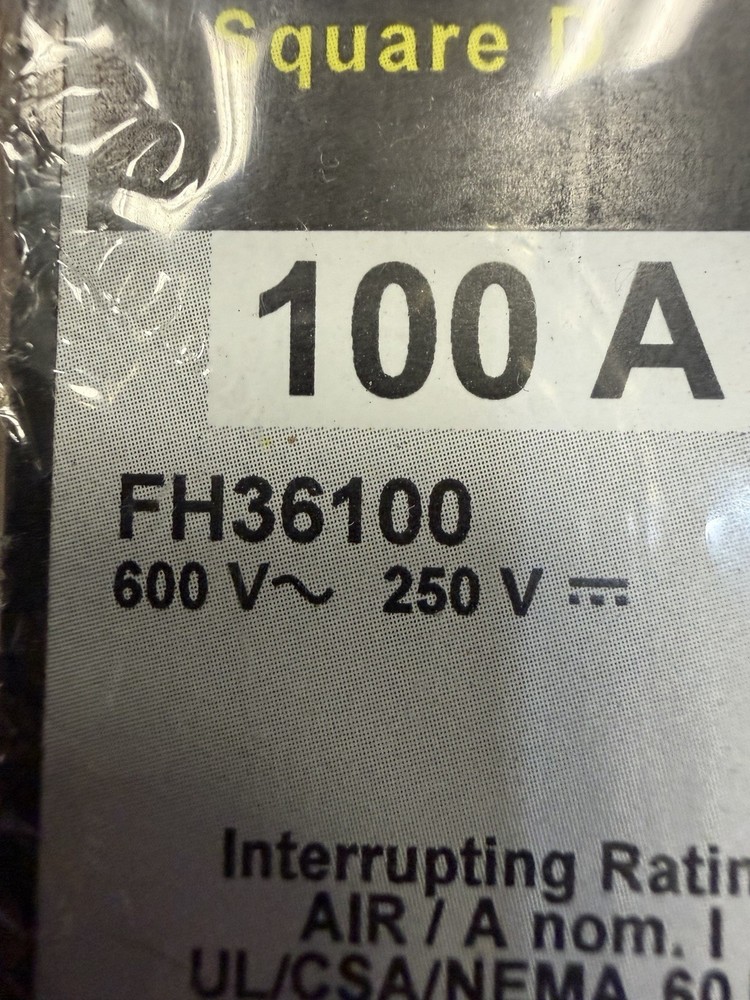

Square D FH36100 Circuit Breaker 100A 600VAC 250VDC 3-Pole

$ 60.72

Current Rating: 100 A Interruption Type: Thermal Circuit Breaker Maximum Amperage: 100 A Tripping Characteristics: Type D Number of Poles: 3 Operation Method: On/Off Number of Positions: 3 Item Width: 4.5 in Break Time: Instantaneous Number of Throws: 1 Number in Pack: 1 Control Style: Switch gtin13: 0785901241409 MPN: FH36100 Type: Circuit Breaker UPC: 0785901241409 Suitable For: Interior Model: FH36100 Room: Any Room Current Type: AC Brand: Square D Item Height: 6.4 in Material: ABS/Plastic Application: Branch Circuit Mounting Style: I-Line, Bolt-On Number of Phases: 3 Color: Black Voltage: 600 V

Description

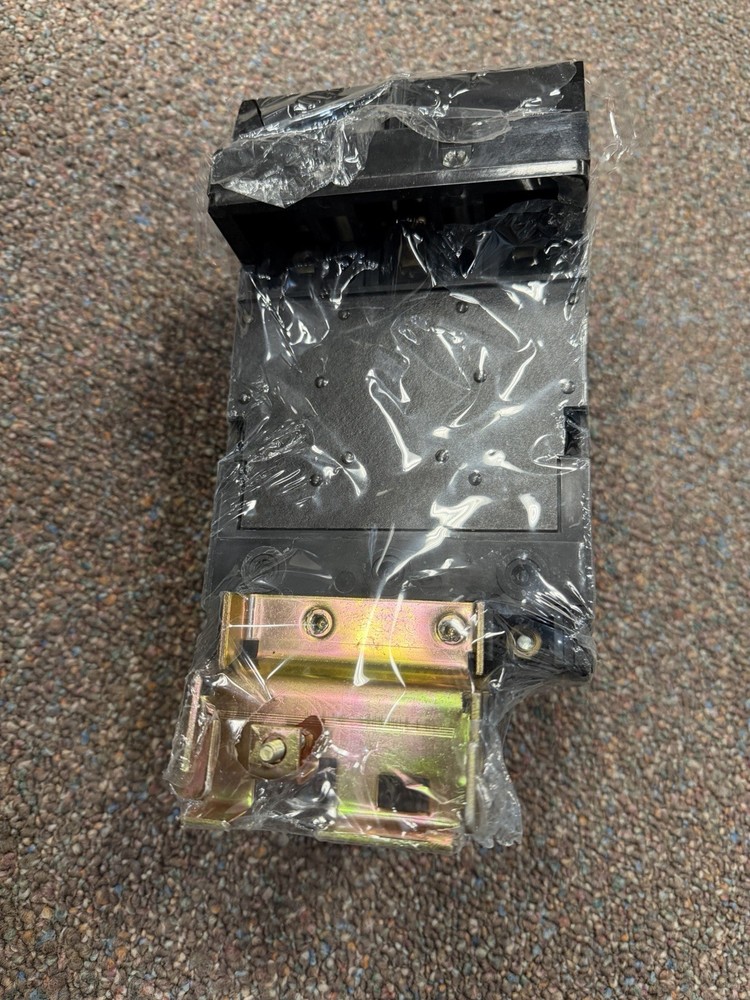

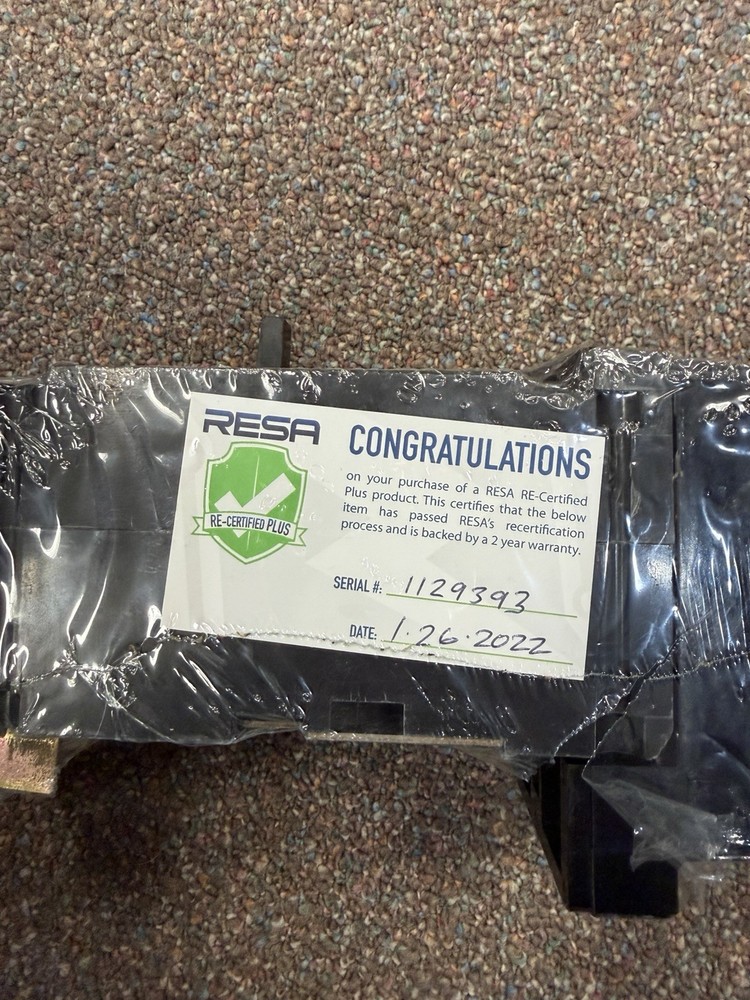

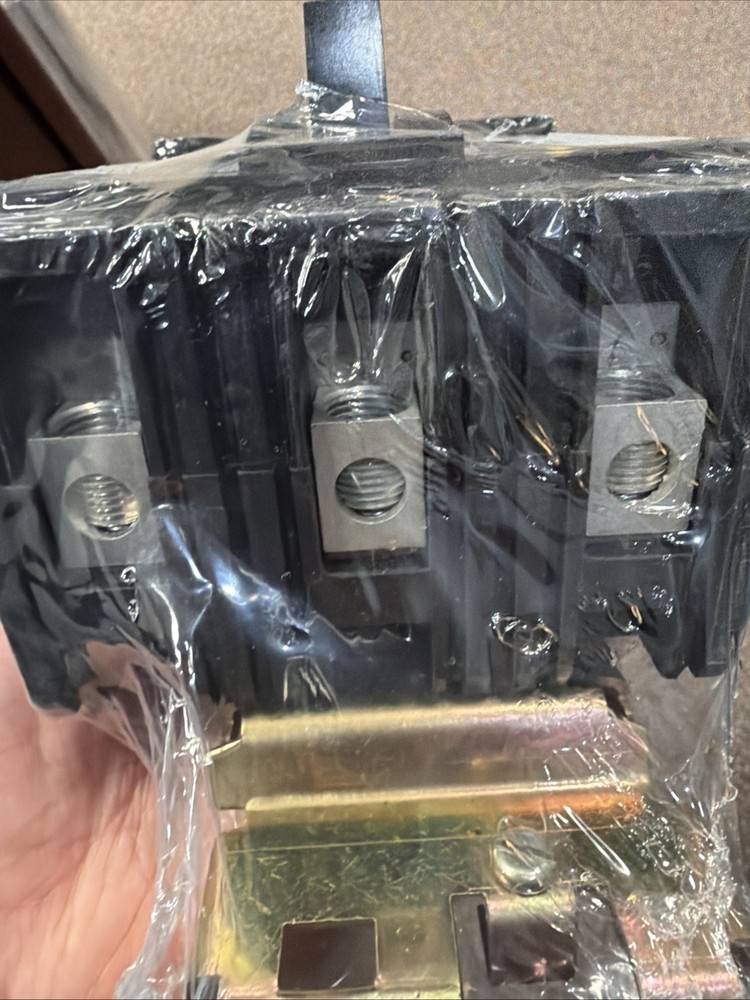

FH36100 is a Square D 100 Amp, 3 pole, 600V molded case circuit breaker designed for I-Line panelboards and switchboards. This breaker has been reconditioned by RESA and is re-certified plus. Still in the plastic wrapper. This thermal magnetic circuit breaker features a non-interchangeable trip unit, F-Frame construction, and plug-in I-Line mounting for easy installation. It is rated for 25kA interrupting capacity at 480V, with approvals from UL, CSA, and CE, ensuring compliance with industry standards for safety and performance. Key Specifications Amperage: 100A Voltage: 600VAC (also rated 240V, 480V) Poles: 3 Mounting Type: I-Line plug-in Interrupt Rating: 25kAIC @ 480V (18kAIC @ 600V, 65kAIC @ 240V) Series/Frame: FH, F-Frame Trip Unit: Thermal magnetic, non-interchangeable, LI (long-time & instantaneous) Certifications: UL Listed, CSA Certified, CE Phase: 3 Connection: I-Line style plug-in, load side lugs Dimensions: 6.4" H x 4.5" W x 4.13" D Temperature Rating: 40°C HACR Rated: Yes
