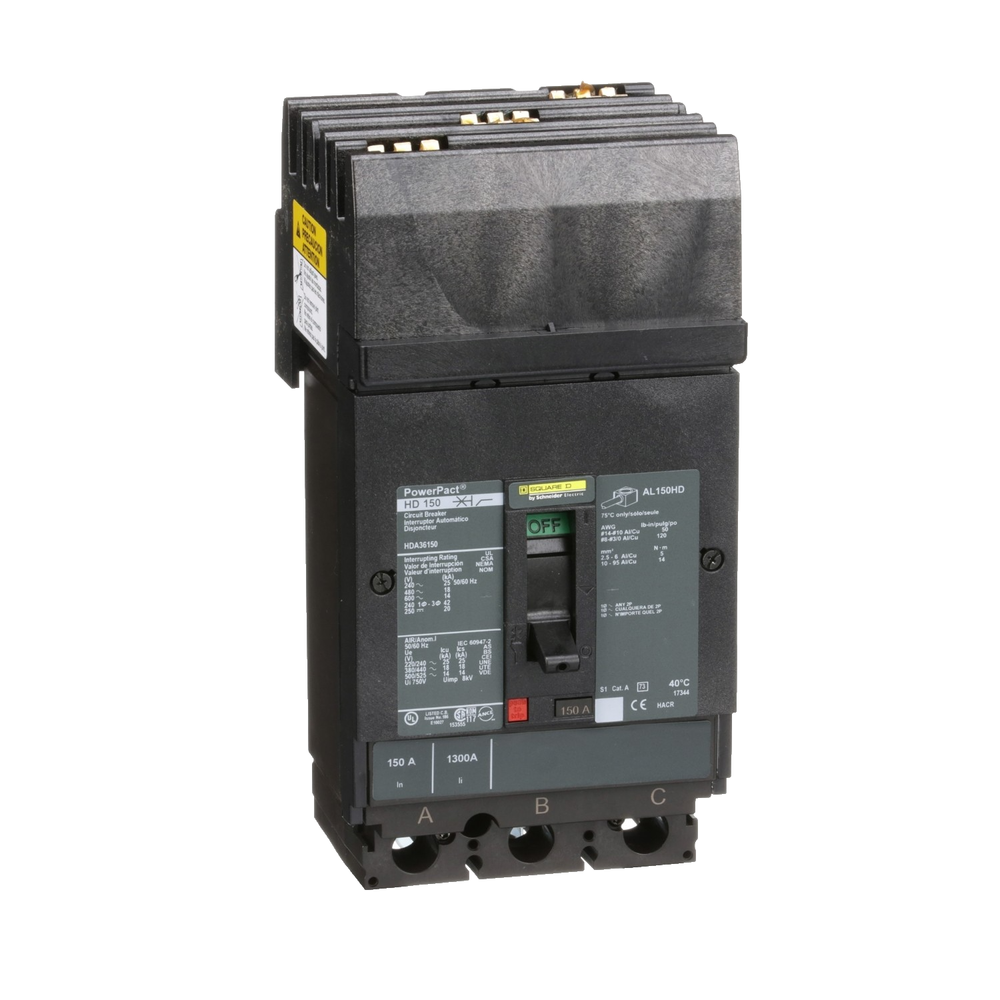

Square D HDA36150, MCCB 150A 3P 600VAC 14kA, Made in Mexico

$ 250.8

Type: MCCB (Moulded Case Circuit Breaker) Maximum Amperage: 150A Packaging: Original Box Number in Pack: 1 Item Current Rating: 150A Model: HDA36150 Brand: Square D by Schneider Electric Interruption Type: Thermal?magnetic Manufacturer: Square D by Schneider Electric Breaking Capacity: 14kA Country of Origin: Mexico Mounting Style: I?Line plug?in Number of Poles: 3P

Description

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 150A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

  1. Ebay reference number given and over-packed as requested. Thank you.
