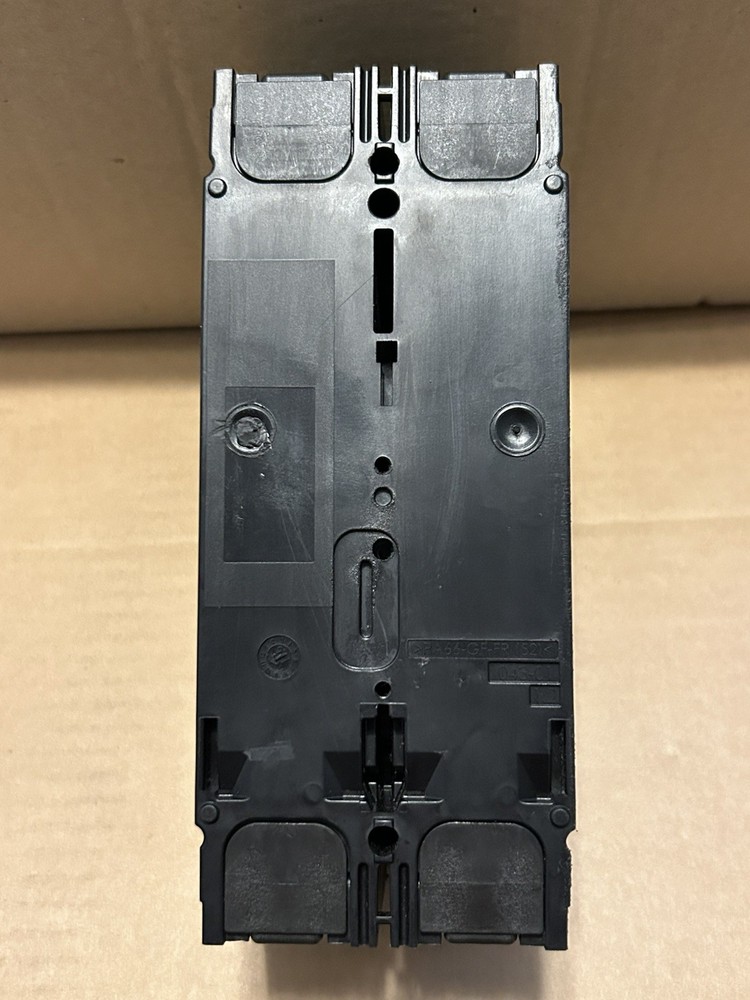

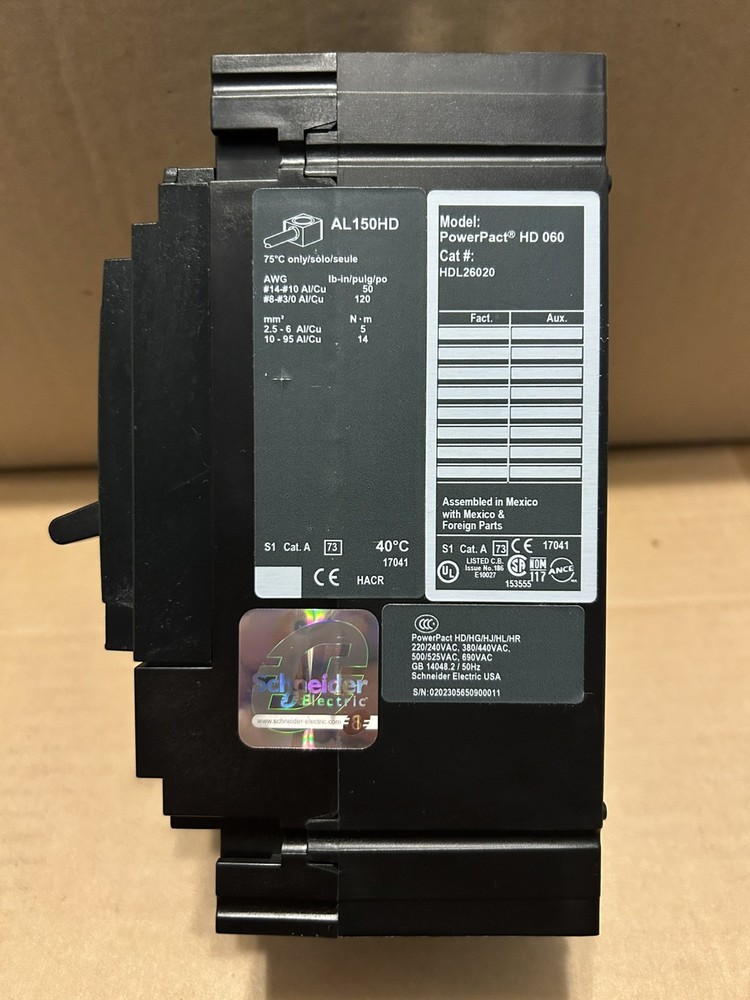

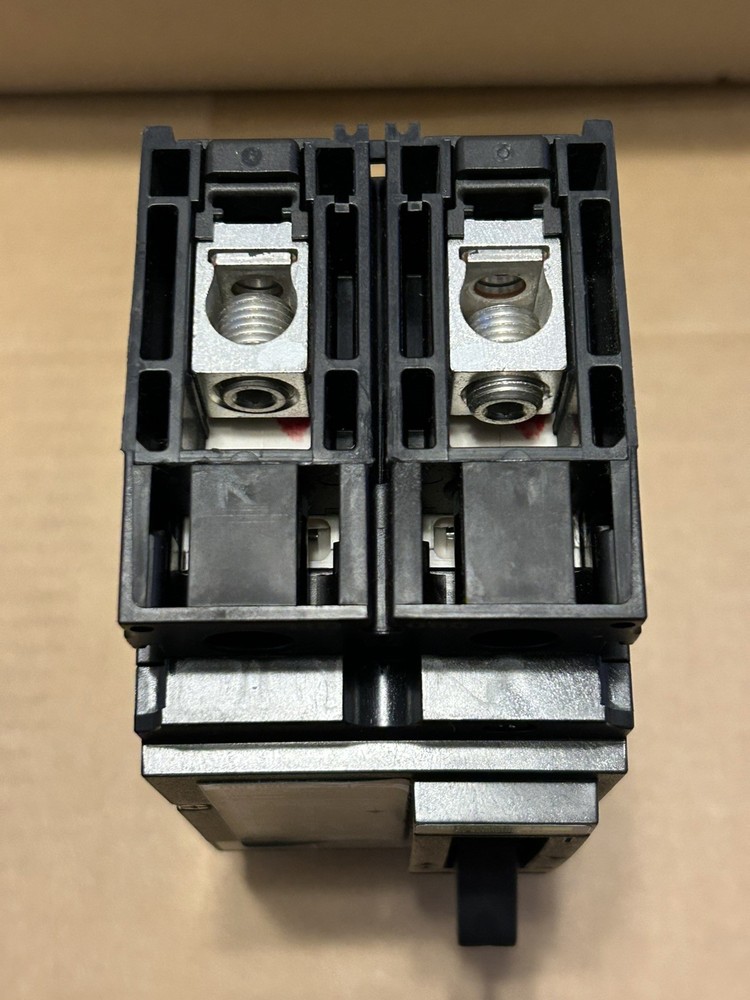

Square D (Hdl26020) 20 Amp Powerpact Circuit Breaker 600 Vac 2 Pole

$ 68.63

Current Type: AC/DC Application: Commercial, Industrial Mounting Style: Bolt-On Electrical Connection: Box Lugs Operation Method: On/Off Current Rating: 16-30 A Color: Black Number of Throws: 1 Type: Main Breaker Number of Poles: 2 Maximum Amperage: 20 A Suitable For: Interior Model: CIRCUIT BREAKER Brand: Square D MPN: HDL26020 Number of Phases: 1 Voltage: 551-600 V Number of Positions: 2

Description

SQUARE D (HDL26020) 20 AMP POWERPACT CIRCUIT BREAKER 600 VAC 2 POLE. It replaces discontinued FAL22020 and FAL24020 models. No Box, just the breaker. Sold as is. 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC. No Box, just the breaker. Sold as is Part of the PowerPacT series, this 20-amp MCCB provides essential long-time and instantaneous (LI) trip functions. It is designed for demanding commercial and industrial applications requiring consistent electrical protection. The unit-mount configuration features factory-installed lugs for secure wire terminations in switchboards. It replaces discontinued FAL22020 and FAL24020 models. With a 14kAIC rating at 600VAC, the D-interrupting class ensures adequate fault clearance for standard systems. Brand Square D Series HDL Amperage 20A Voltage 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC Poles 2 Phase 1 AIC Rating: 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 14kA @ 600Y/347VAC, 14kA @ 600VAC, 20kA @ 250VDC
