Taidacent DC12-24V NPN PNP 3 Wire Inductive Proximity Limit Switch Metal Dete...

$ 9.94

Operating Voltage: 12.0 Current Rating: 15.0 Size: Npn Normally Open model: Zc-Bx1Sensor-1209 ISBN: 0792323448736 UPC: 792323448736 Actuator Type: Non-Contact Connector Type: Micro Usb Material: Copper Unit Count: 1.0 Color: H2 Switch Type: Limit Switch, Temperature Switch EAN: 0792323448736 Contact Type: Normally Open Operation Mode: Automatic Package Dimensions LxWxH: 4.61x2.95x0.43 Inches Contact Material: Copper Part Number: Zc-Bx1Sensor-1209 Brand: Taidacent Mounting Type: Panel Mount Control Method: Remote Circuit Type: 1-Way Weight: 0.02 Pounds Terminal Type: Screw Or Quick-Connect Wattage: 0.36 Item Package Quantity: 1 Lower Temperature Rating: -25.0 Connectivity Protocol: X-10 Model Number: Zc-Bx1Sensor-1209

Description

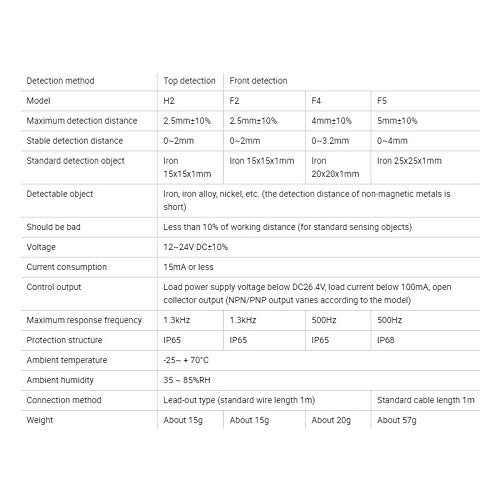

Taidacent DC12-24V NPN PNP 3 Wire Inductive Proximity Limit Switch Metal Dete.... Detectable object: magnetic metal [iron, iron alloy, nickel, etc.] (non-magnetic metal has a short detection distance) Hysteresis: Less than 10% of the working distance (for standard detection objects) Power supply voltage: 12~24V DC±10% Current consumption: 15mA or less Control output: Load power supply voltage below DC26.4V, load current below 100mA, open collector output (NPN/PNP output varies according to the model) Ambient temperature: -25~ +70°C Ambient humidity: 35 ~ 85%RH Detectable object: magnetic metal [iron, iron alloy, nickel, etc.] (non-magnetic metal has a short detection distance)Hysteresis: less than 10% of the working distance (for standard detection objects)Power supply voltage: 12~24V DC±10%Current consumption: 15mA or lessControl output: Load power supply voltage below DC26.4V, load current below 100mA, open collector output (NPN/PNP output varies according to the model)
