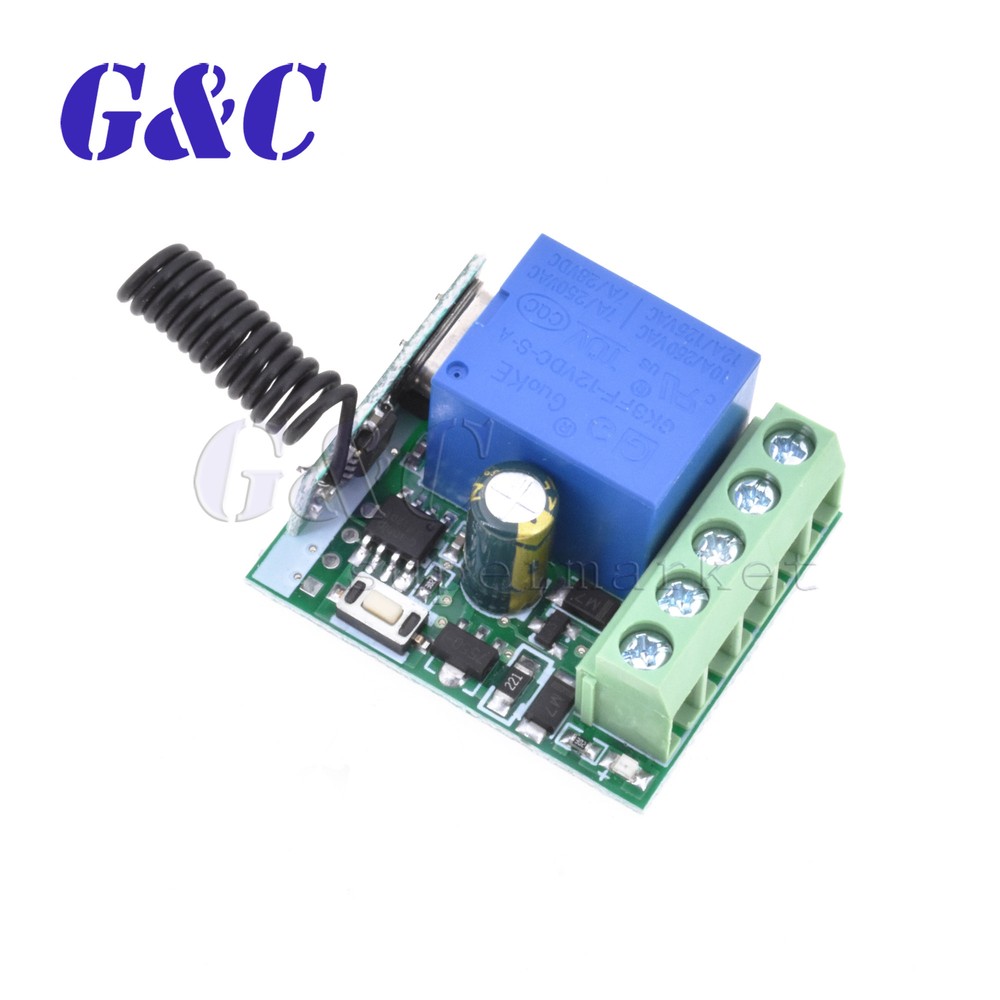

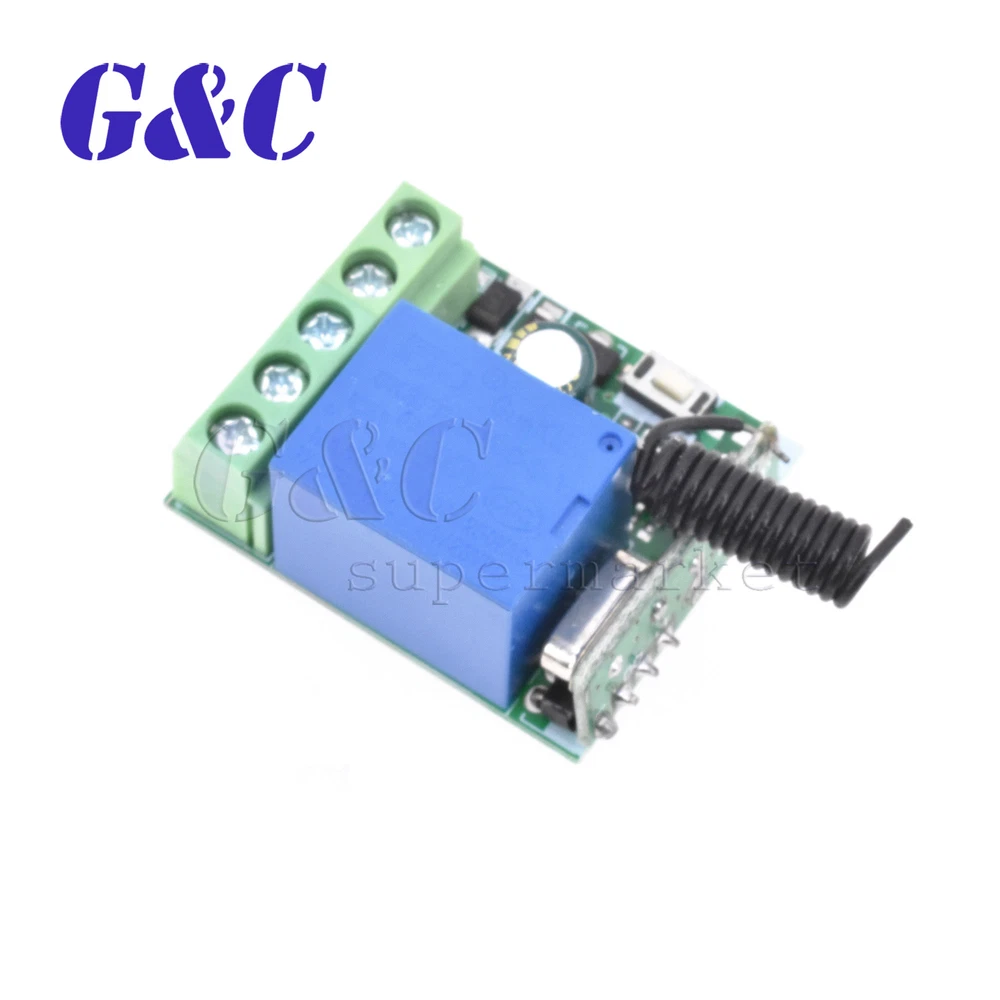

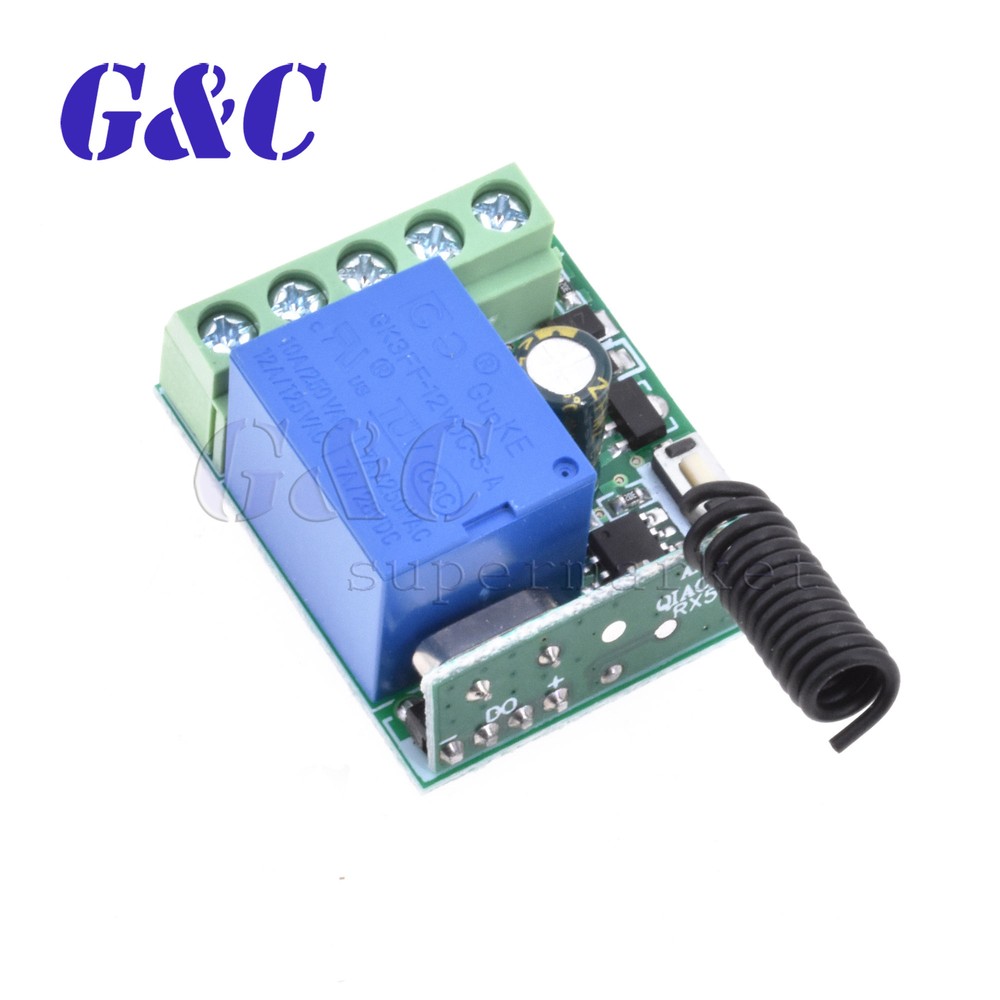

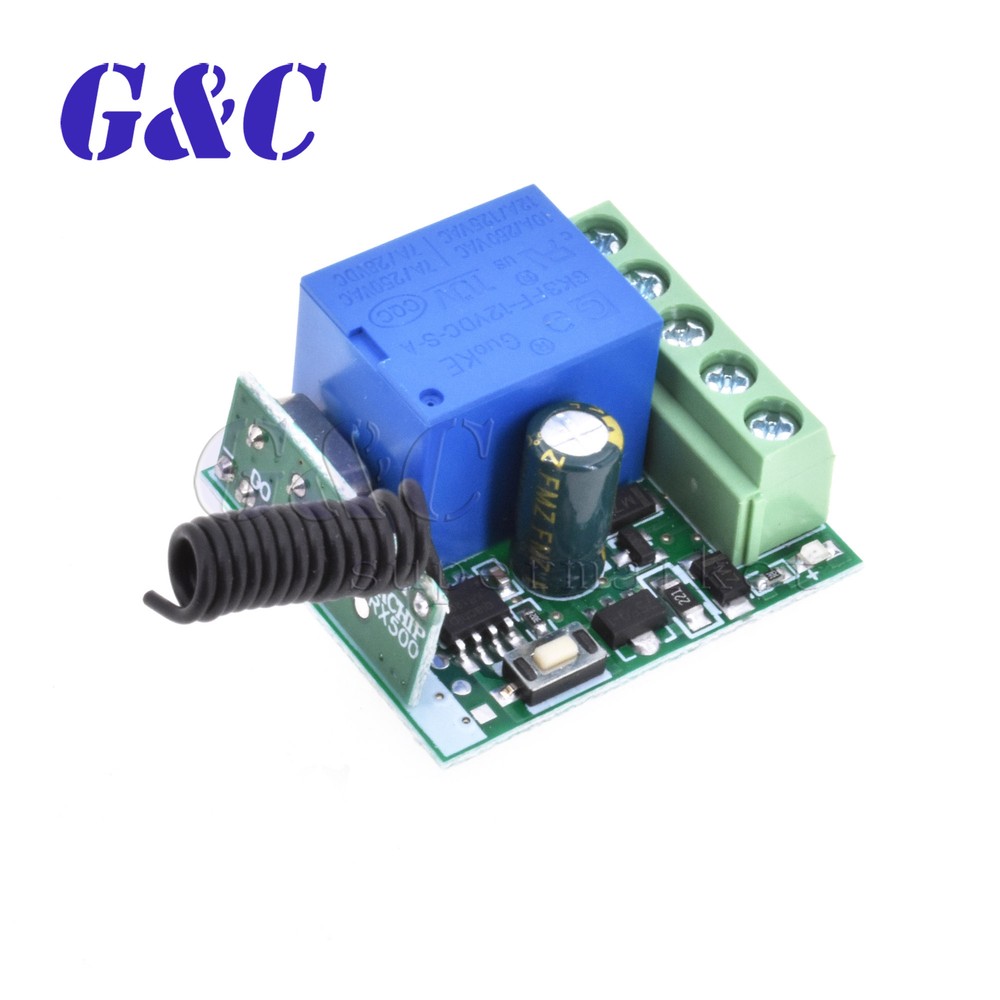

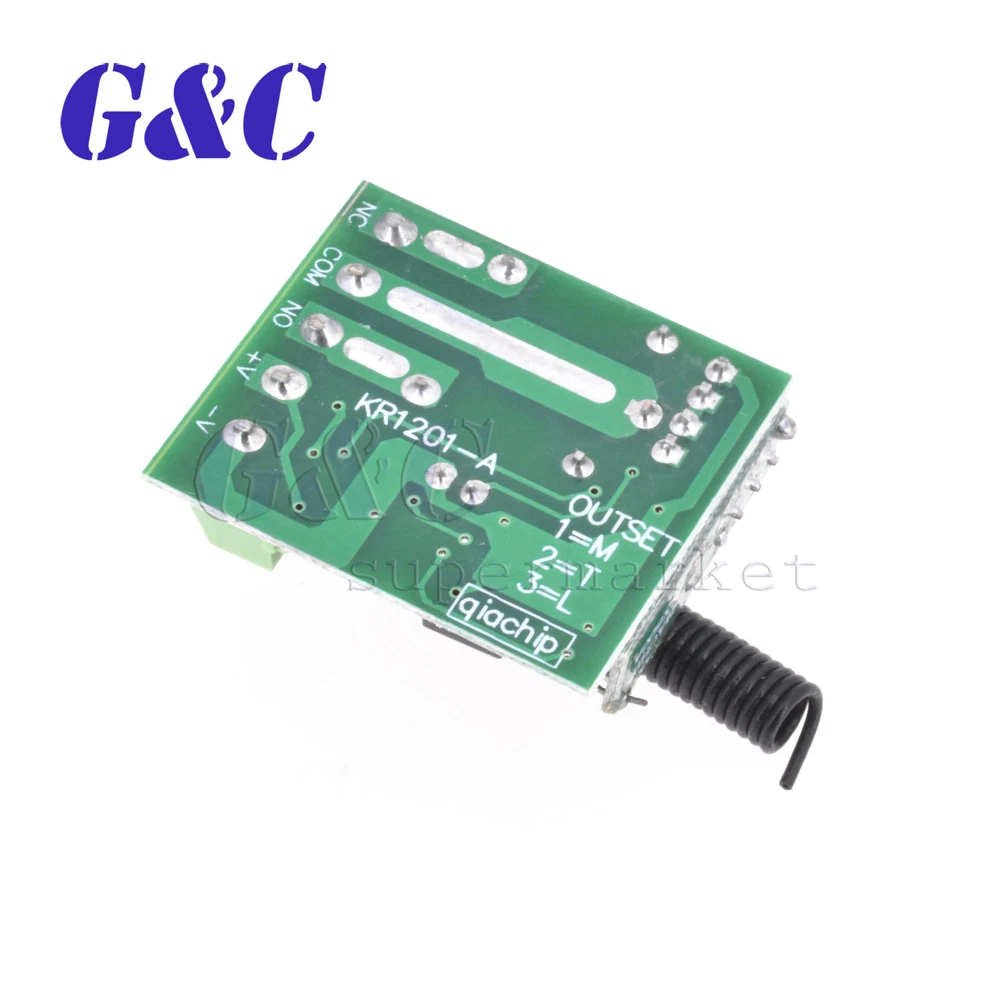

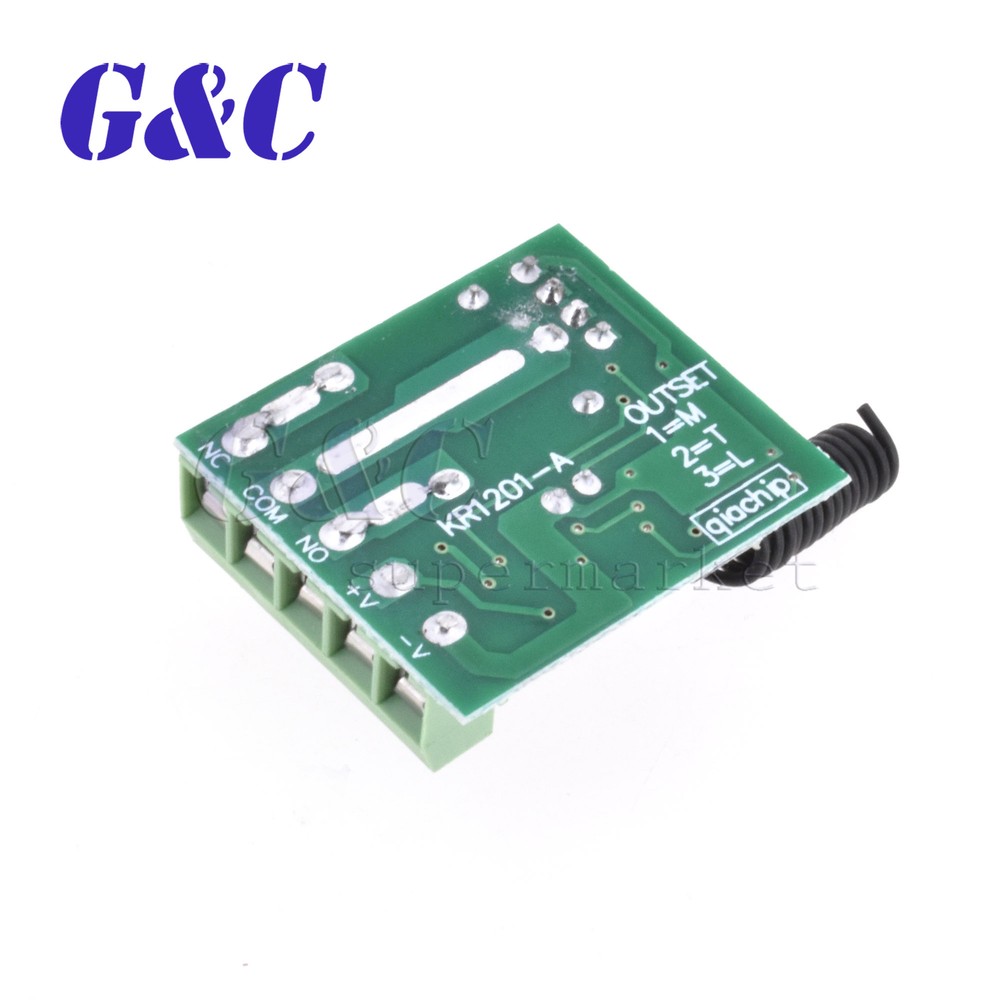

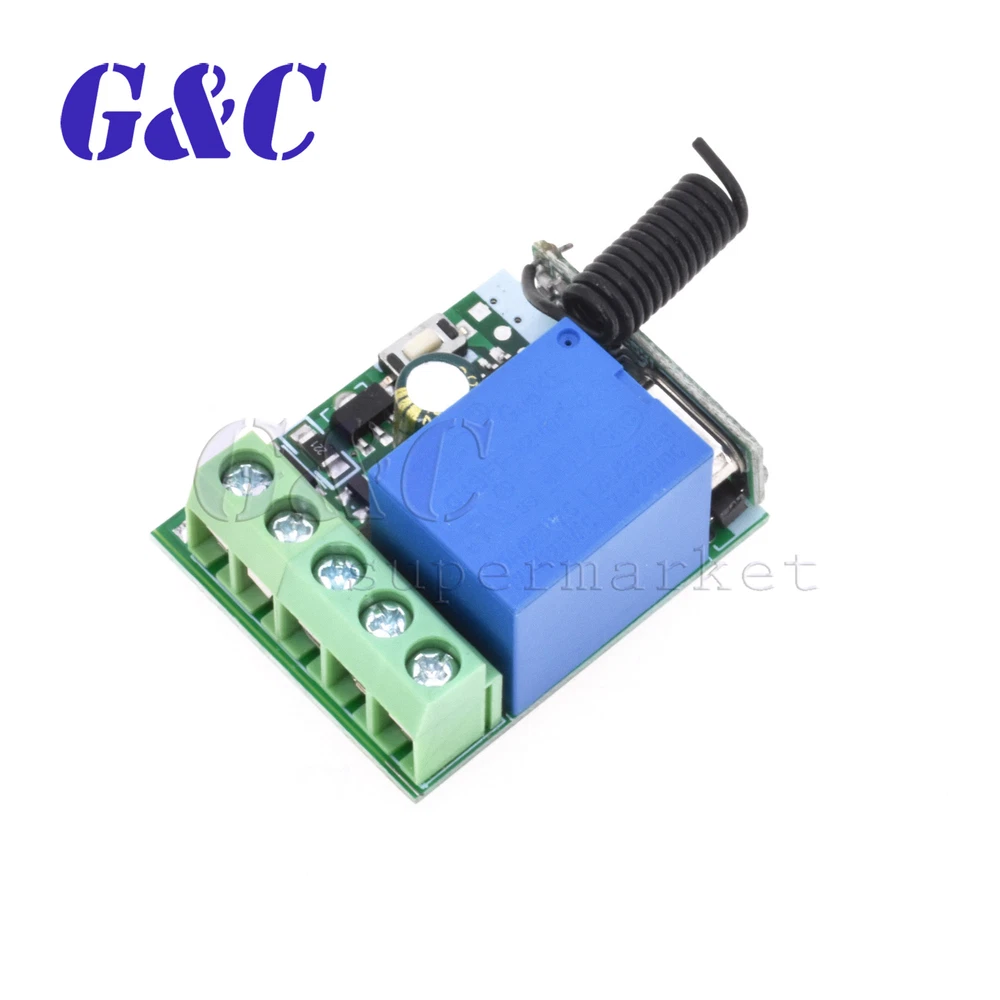

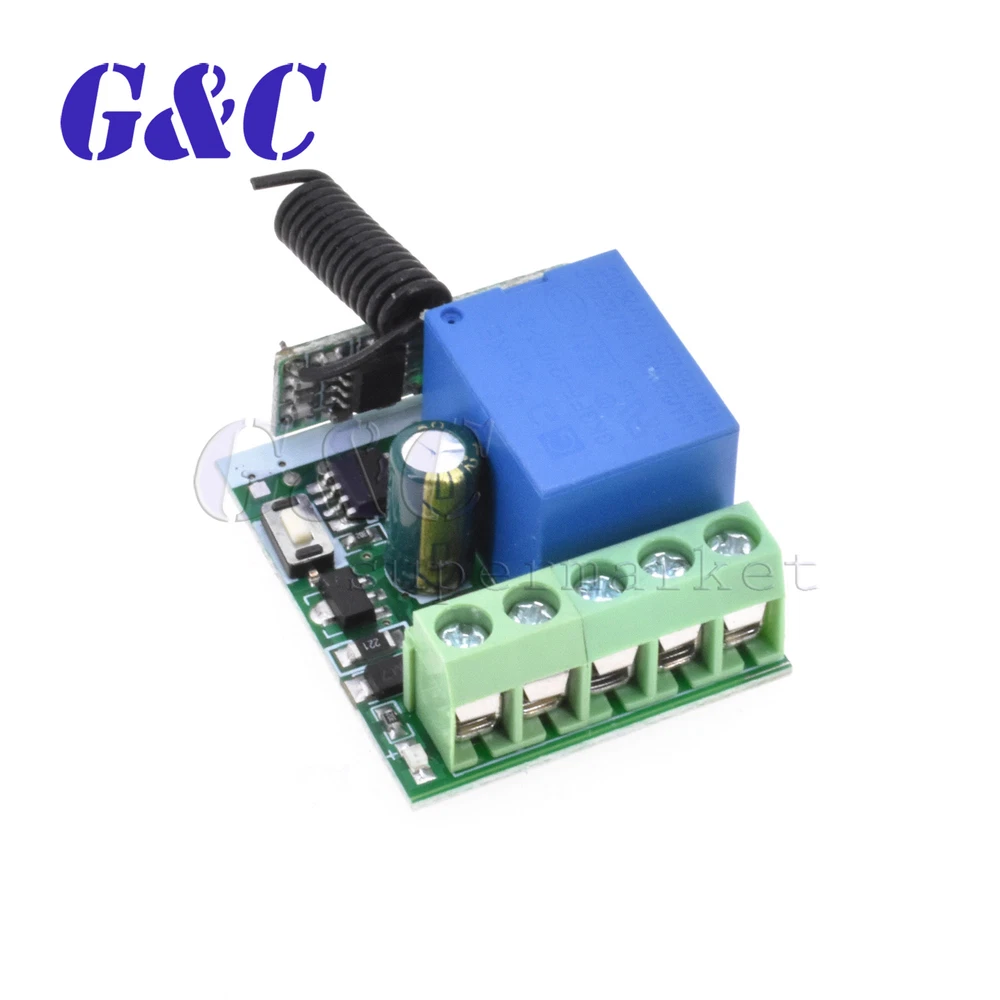

315/433MHz 12V 10A 1-Channel Wireless Relay RF Remote Control Switch Receiver
$ 1.57
Description
Store Categories Store Categories eBay Motor Fashion Books, Movies & Music Electronics Collectibles & Art Home & Garden Sporting Goods Toys & Hobbies Business & Industrial Health & Beauty Other Item Description Specification: Model:KR1201A Name:Wireless Relay 1.Input Voltage: DC10-14V 2.Standby Current: ＜5MA 3.RF Frequency: 315/433MHZ 4.RF Working mode:Super heterodyne receiver 5.Receiver Sensitivity: >90dBm 6.Remote Control Distance: >100 meter(In open environment) 7.Decoding Way: MCU Software decoding 8.Can store the number of remote control:50 9.Support remote control type: Fixed code, learning code 10.Channel: 1CH 11.Multiple working modes: (Jog/Non-Latched ,inter-lock/Latched ,self-lock /Self-Latched,Delay off) 12.Wiring Method:Fixed wiring terminal 13.Working Voltage: DC12V 14.Output Current: 10A 15.Rated load:10A 250VAC / 10A 125VAC 10A 30VDC / 10A 28VDC 16.Output:Normally open,Common,Normally closed 17.Dimension:3.5cm*3cm*1.6cm Package included: 1 x 12V 315MHZ/433MHz 1 Channel Wireless Relay Switch(depengd on you choose) Working/output way: 1.Jog/Non-Latched: Press one button is Working /ON. Loosen your finger on the same button is Stop/OFF. One channel switch need one buttons remote control. 2.Self -lock/Self-Latched: Press one button for one time is working/ON. Press the same button again is stop/OFF. One channel switch need one buttons remote control. 3.Inter-lock /Latched: Press one button is working/ON, press another button is stop/OFF. One channel switch need 2 buttons remote control. 4.Delay: Press remote control 's one button,relay is working,release the remote control and begin timekeeping,after 5s/10s/15s will automatically close the relay Learn: 1. press the learning code .the indicator flash ,loosen your finger ,press any button of the remote control (press 1 times to learn Momentary;2times-Toggle;3times-Latched;4times-5s delay;5times-10s delay;6times-15s delay) the indicator flash 2 times and off .it mean you learn it successfully . 2. it can learn 2272 2262 or 1527 chip with the different code wireless 315MHZ/433MHz remote control. Feedback Payment Shipment About us Feedback We appreciate positive feedback . we always try our best to service our customers . so if you have ant question ,PLEASE DON’T HESITATE TO TELL US, we are always here to offer help . Payment We prefer PayPal .For purchasing multiple items , please contact us for a combined invoice . generally we would like to receive payment thin 48 hours if . Shipment We provide airmail service with good package . The items will be shipped within the nest 2 business days after we received the payment . when you buy multiple items ,your shipping cost will be combined with discount . SHIPPING TIME (weekends/holidays excluded) Country Name Shipping Time Country Name Shipping Time USA/Canada 10 -15d Spanish/Portugue 10-25d East/South Asia 10 -15d France/West Asia 10-25d United Kingdom 10 -20d Italy 10-30d Australia/New Zealand 10 -15d West Asia/Middle East 15-25d Most Country of West/North Europe 10-20d South America and Africa 15-30d East /Middle Europe/Russia 10-25d About us NEW, GOOD QUALITY, ORIGINAL PACKAGE LARGE STORE AND THE LOWEST PRICE NO-QUESTION-REFUND, FOR LARGE QUANTITY ,OFFER BETTER PRICE, ORIGINAL PACKING(TAPE REEL/TUBE/TRAY） We specialize in electronic components . ICs, Capacitors, Diodes, Resistors, LEDs, Transistors, and so on. Especially in Hard To Find Parts . we only sell NEW , ORIGINAL parts . please buy with confidence .We offer NO-QUESTION-REFUND go to my store
