Ground Fault Circuit Breaker with Voltage Surge Arrester Protection, 20 Amp A...
$ 20.39
Description

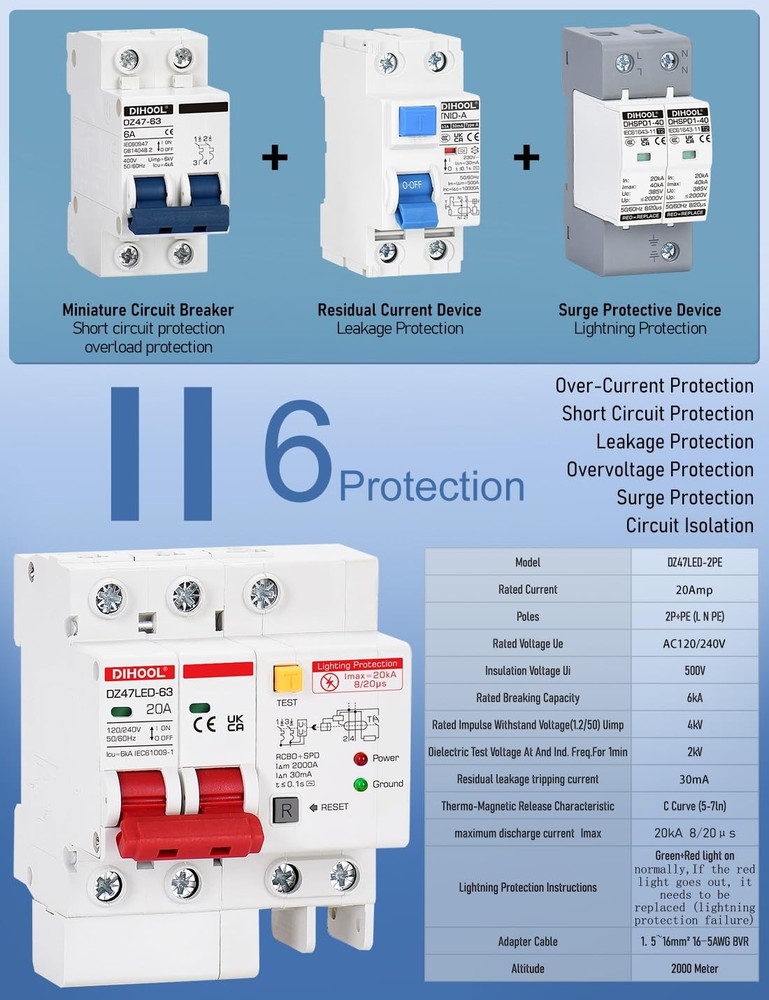

Ground Fault Circuit Breaker with Voltage Surge Arrester Protection, 20 Amp A.... DZ47LED Residual Current Circuit Breaker (Lightning Residual Current Circuit Breaker), is miniature leakage circuit breaker with lightning protection device. It is suitable for distribution network with AC230V. DZ47LED Residual Current Circuit Breaker (Lightning Residual Current Circuit Breaker), is miniature leakage circuit breaker with lightning protection device. It is suitable for distribution network with AC230V. For Lightning protection, overvoltage protection, overcurrent protection, leakage protection, short circuit protection, circuit isolation. DZ47LED Lightning Residual Current Circuit Breaker performance standards: GB16917.1 "Residual current operated circuit-breakers with integral overcurrent protection for household and similar uses (RCBOs)-Part 1: General rules", GB 18802.2, IEC61643-1 and GB 500057 "Design code for protection of structures against lightning". Rated Current：20A Poles: 1P+N+PE Rated Voltage Ue: AC240V Insulation Voltage Ui: 500V Rated Frequency: 50/60Hz Rated sensitivity I△n: 30mA Short-circuit current Inc=l△c: 4500A Break time under I△n: ≤0.15 Residual current protection type: Electronic Terminal size top/bottom for cable: 25mm² Tightening torque：3.0Nm Thermo - Magnetic Release Characteristic：C-Curve (5-10In) Electrical Life: 2000 Mechanical Life: 10000 5 Protection Functions: Type 2 20kA Surge orotection, 30mA Class AC ground fault Protection, Overcurrent protection,Short Circuit Protection, circuit isolationPower and Ground LED light to indicate the status of the breaker,T button to test the ground fault protect function, and visualization window to show if the breaker is on or offSuitable for 120V/240VAC circuit,Applicable to US 110V and 220V voltageCome with 1 x Din Rail for easy mounting and 5 x crimp lugs which help with stranded wire to insure good connectionsWiring: Upper input, Bottom output, with both input and output ground wires connected to the ground terminal simultaneously
