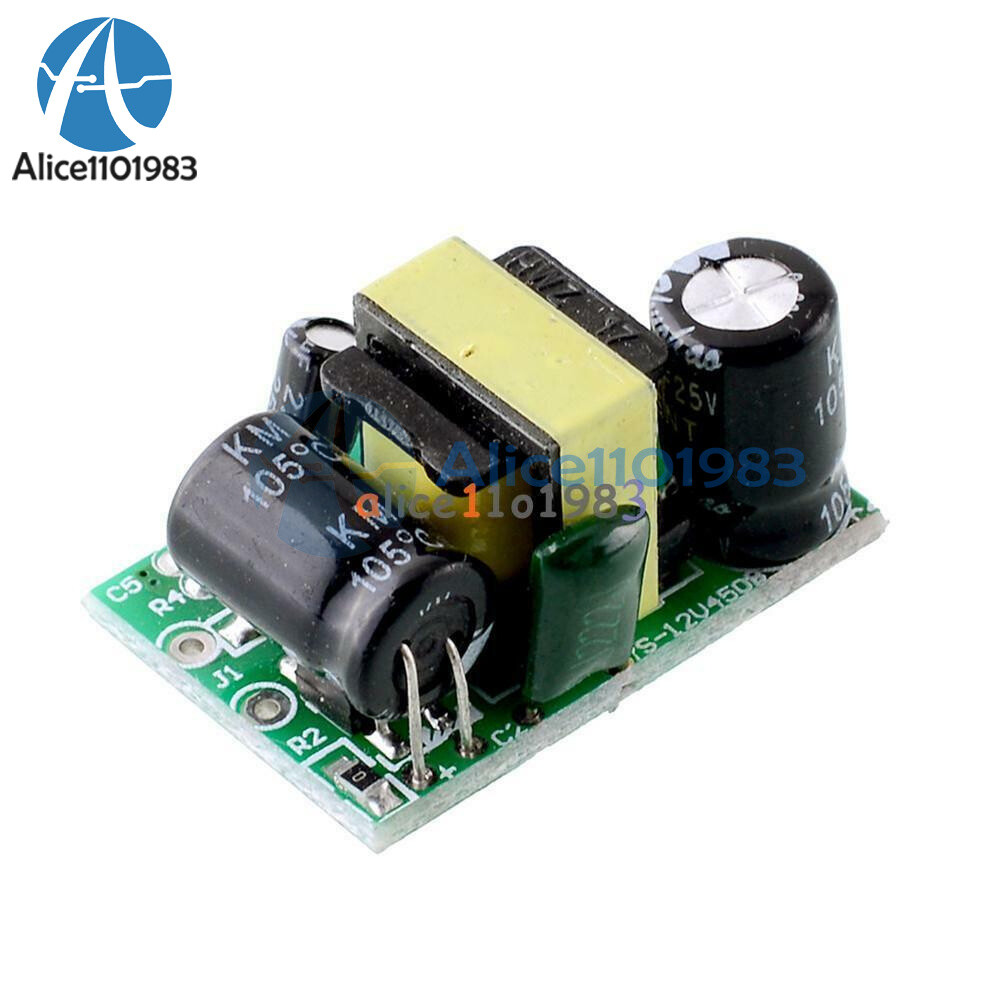

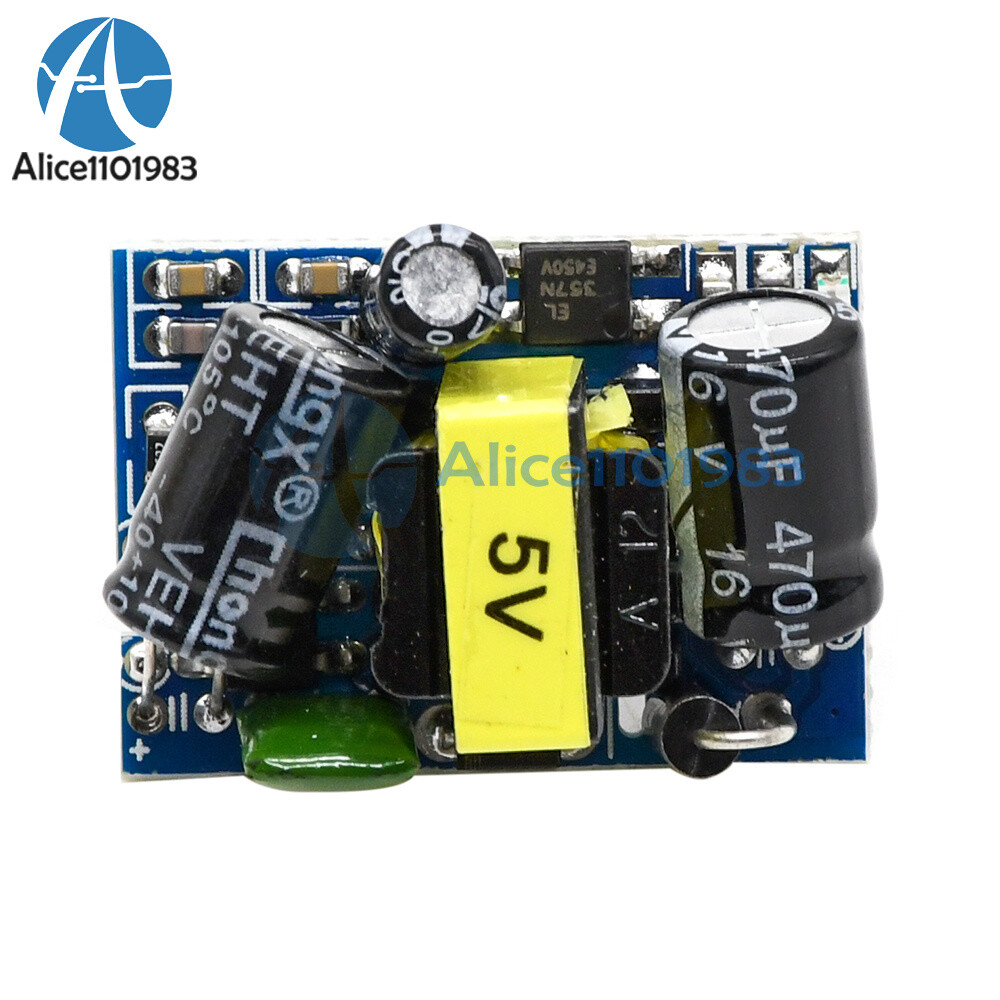

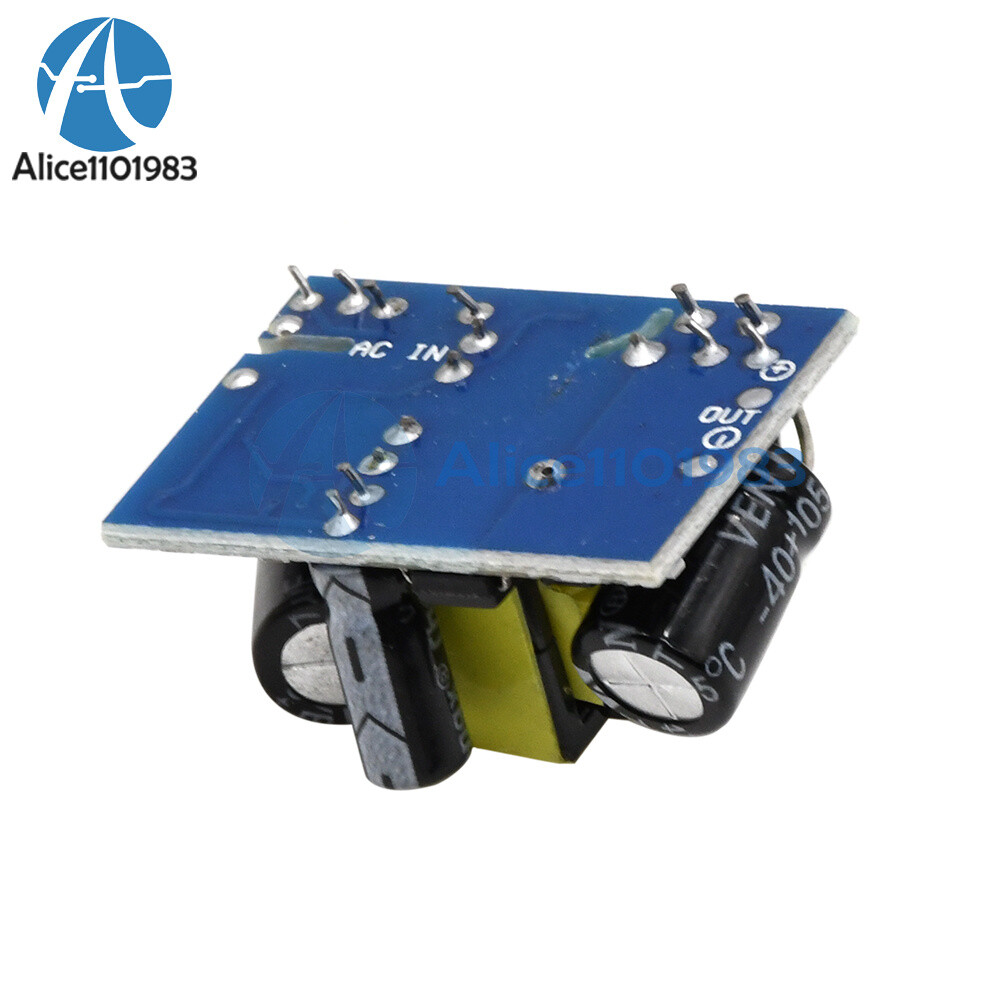

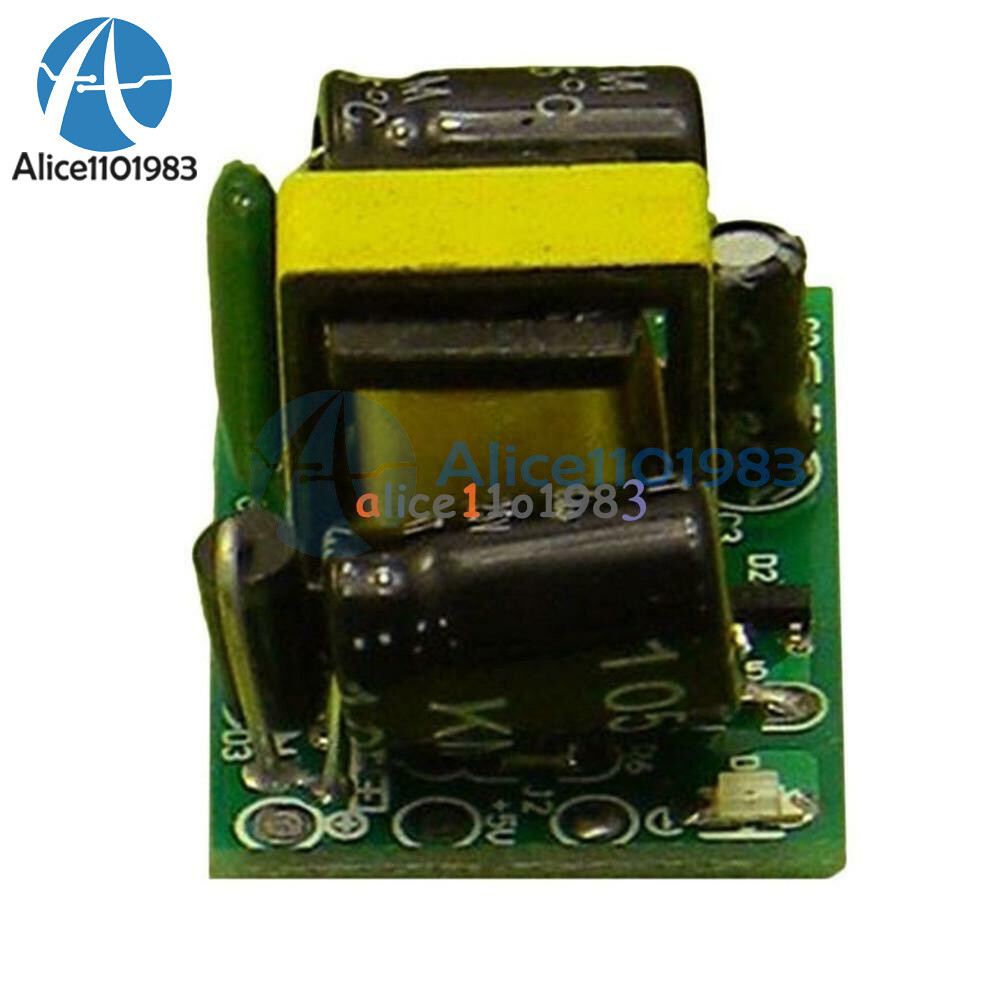

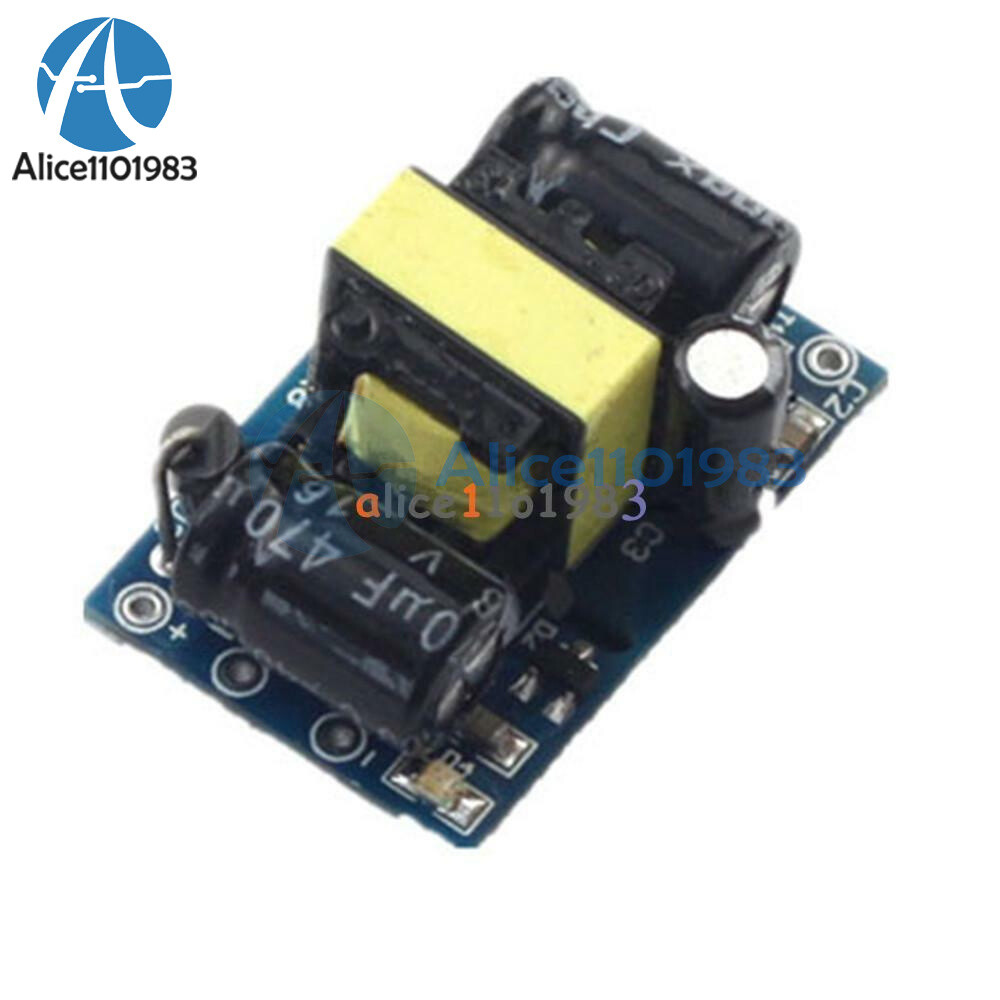

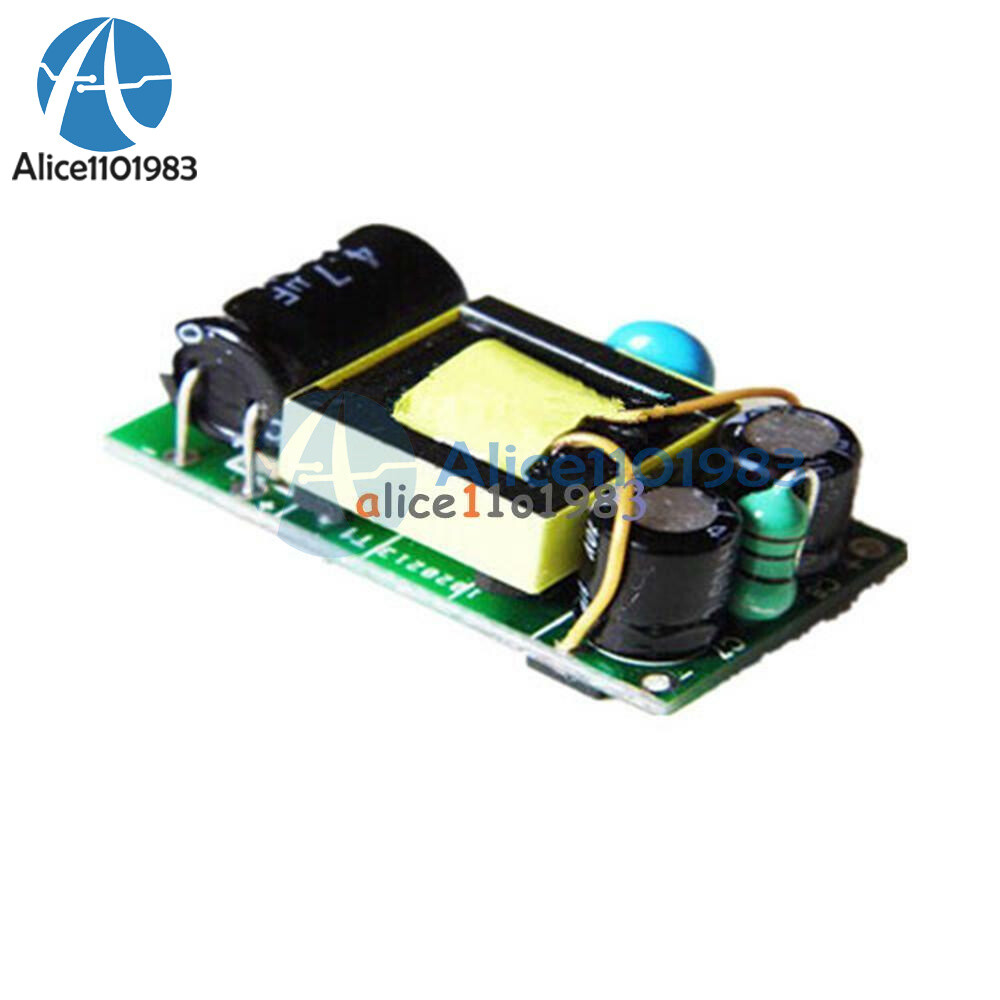

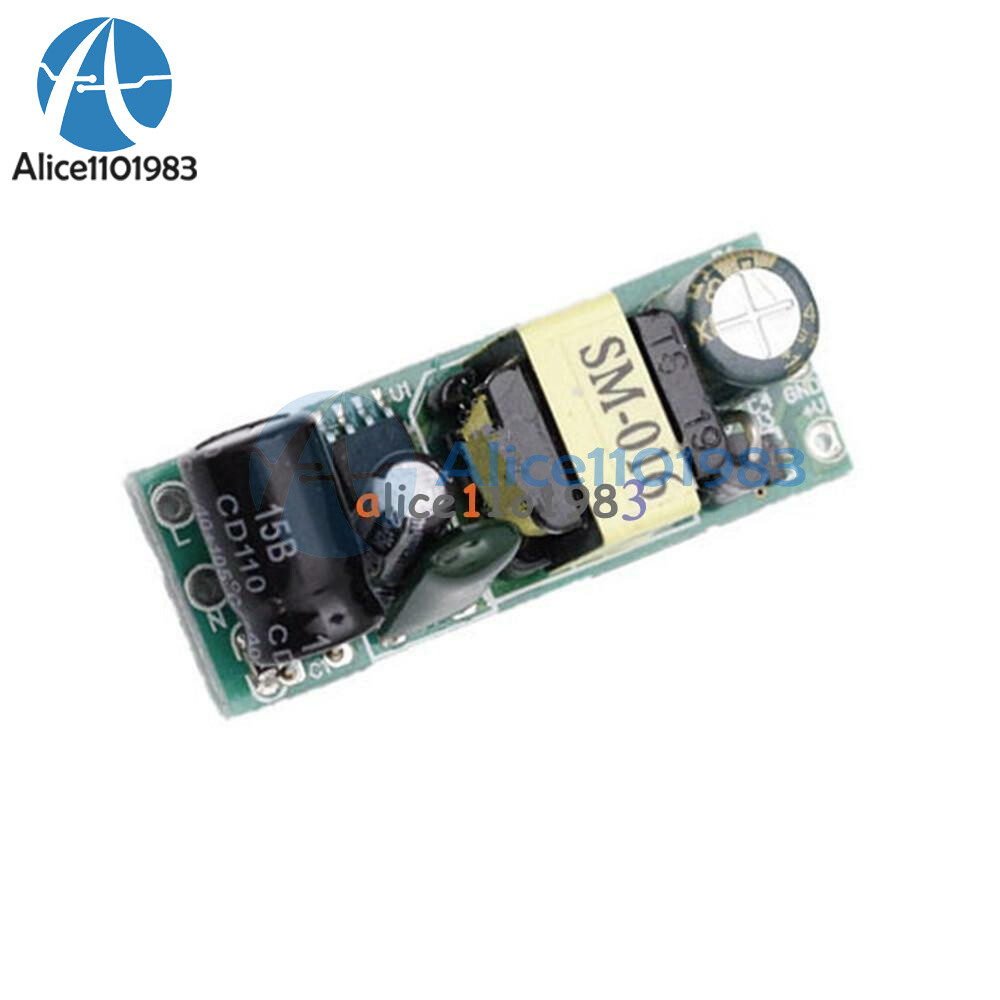

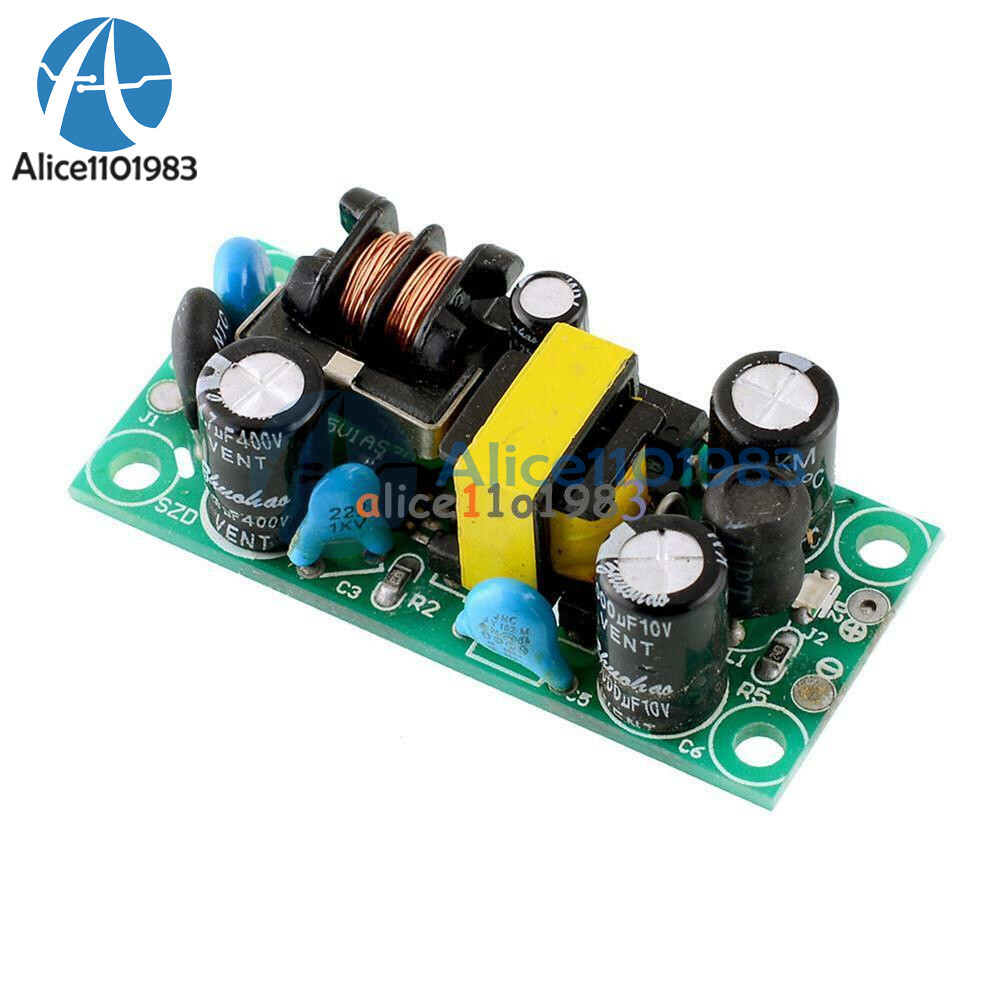

High Grade 12V 5V 24V 9V AC-DC Power Supply Buck Converter Step Down Module
$ 1.2
Description
High Grade 12V 5V 24V 9V AC-DC Power Supply Buck Converter Step Down Module. Output Current Range: 0A to 150mA, the peak current of 200mA. Input surge current: 20A (full load). Peak current :450mA. Output current:150mA. Output power: 3.6w. Input characteristics. Output Characteristics. 12V 400mA Input voltage :AC 85v ~ 265v ,50 / 60HZ Output voltage :DC12V Working Current :400mA Peak current :450mA Power: 4.5W Size:30*20*19mm 24V 150mA 1. Input voltage:AC85~265v 50/60HZ 2. Output voltage:DC24V (±0.2V) 3. Output current:150mA 4. Power:3.6W 5. PCB size:4*1.5*1.8cm Use environment: 1. Working temperature: -20 to 60℃ 2. Relative humidity: 40 to 90% RH Input characteristics 1. Input voltage range: 85VAC-265VAC 2. Input Current: 0.0273 (AC110V) 0.014 (AC220V) 3. Input surge current: 20A (full load) Output Characteristics 1. Output voltage range: 23.80~24.2V 2. Output Current Range: 0A to 150mA, the peak current of 200mA 3. Output power: 3.6w. 4. Output efficiency: 85% 5. Switching Overshoot: 10% 6. Output Rise Time: 100ms 5V 1A -Input voltage of AC 85 ~ 265v 50/60 HZ -Output voltage DC5V（±0.2V） -Output current 1000MA -Power 5w 5V 500mA Input voltage AC85 ~ 265v 50 / 60HZ Output voltage DC5V Operating current 500mA Dimensions Volume: LWH 32 * 18 * 13 (mm) 12V 500mA -Input voltage of AC 85 ~ 265v 50/60 HZ -Output voltage DC12V（±0.2V） -Output current 500mA 12V 450mA Input voltage: AC 85 ~ 265 v 50/60 hz or DC 100~ 370 v Input current: 0.0273A(AC110V) 0.014A(AC220V) Input Inrush Current: 20A Output voltage: DC 12V (+ / - 0.2 V) Output current 500 mA Operating temperature -20~60Deg.C Relative humidity 40-90%RH Output 12V, min current 0a, max current 500mA, peak current: 600mA, output range:11.80~12.1V, ripple wave: 150mV Output power:0-6W(DC current) Output efficiency: 80% Switch machine overshoot: MAX 10% Output voltage rise time: MAX 100MS Output over voltage: 11.8-12.1V, recovery:Lock, restart after recovery Output over power protection:YES ,recovery:Lock, restart after recovery Short-circuit protection: YES, automatic recovery after problem solved Temperature protection: YES,recovery:Lock, restart after recovery Overcurrent protection: YES,recovery:Lock, restart after recovery Size: 3 x 2 x1.8cm 5V 700mA Condition: brand new Quantity: 1pc Input voltage: AC 85 ~ 265 v 50/60 hz or DC 100~ 370 v Imput current: 0.0273A(AC110V) 0.014A(AC220V) Input Inrush Current: 20A Output voltage: DC 5V (+ / - 0.2 V) Output current 700 mA Power 3.5 W Operating temperature -20~60¡æ Relative humidity 40-90%RH Output 5V, min current 0a, max current 700mA, peak current: 800mA, output range: 4.8~5.2v, ripple wave: 60mV Output power:0-4W(DC current) Output efficiency: 80% Switch machine overshoot: MAX 10% Output voltage rise time: MAX 100MS Output over voltage: 4.8-5.2V, recovery:Lock, restart after recovery Output over power protection:YES ,recovery:Lock, restart after recovery Short-circuit protection: YES, automatic recovery after problem solved Temperature protection: YES,recovery:Lock, restart after recovery Overcurrent protection: YES,recovery:Lock, restart after recovery 5V 1.5A Input voltage AC 85 ~ 265v 50/60HZ or DC100v-370v Output voltage DC5V (± 0.2V) Output current 1500mA Power 7.5W 12V 400mA Black Input voltage :AC 85v ~ 265v ,50 / 60HZOutput voltage :DC12VWorking Current :400mAPeak current :450mAPower: 4.5WSize:30*20*19mm Package include: 1PC
