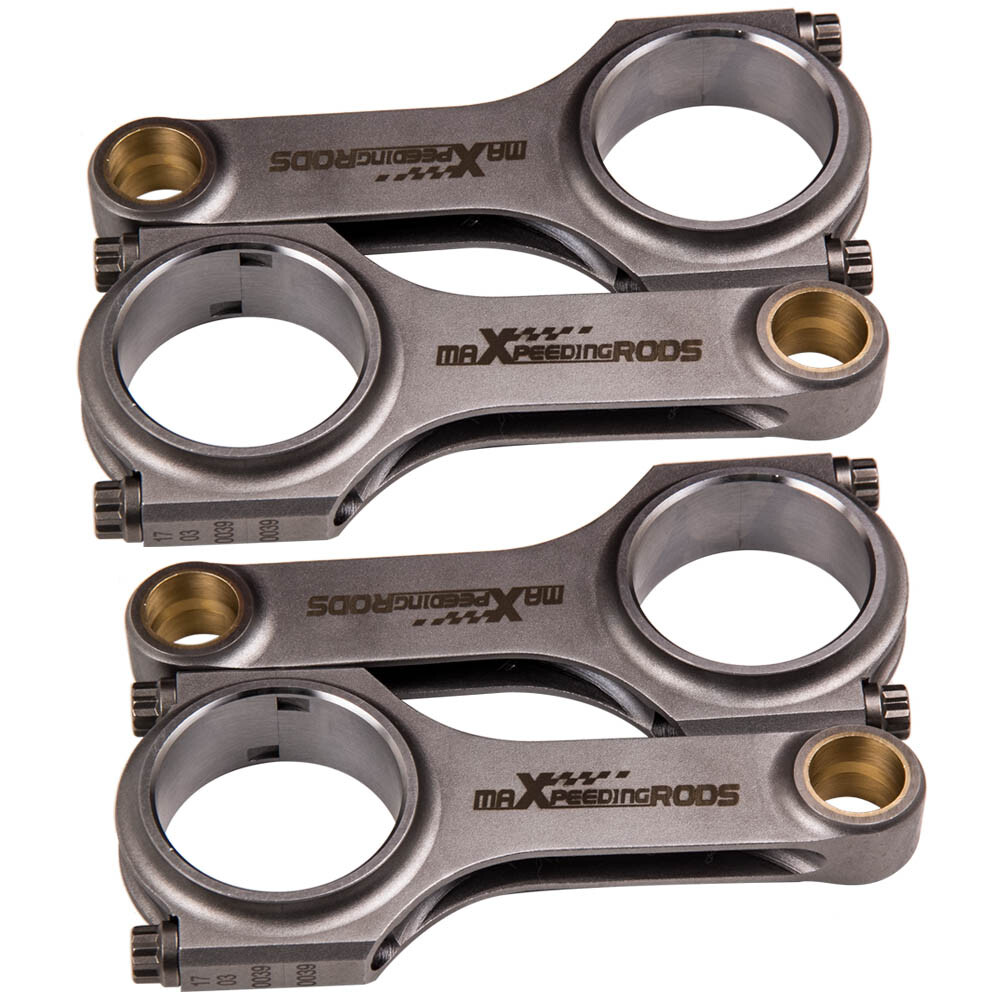

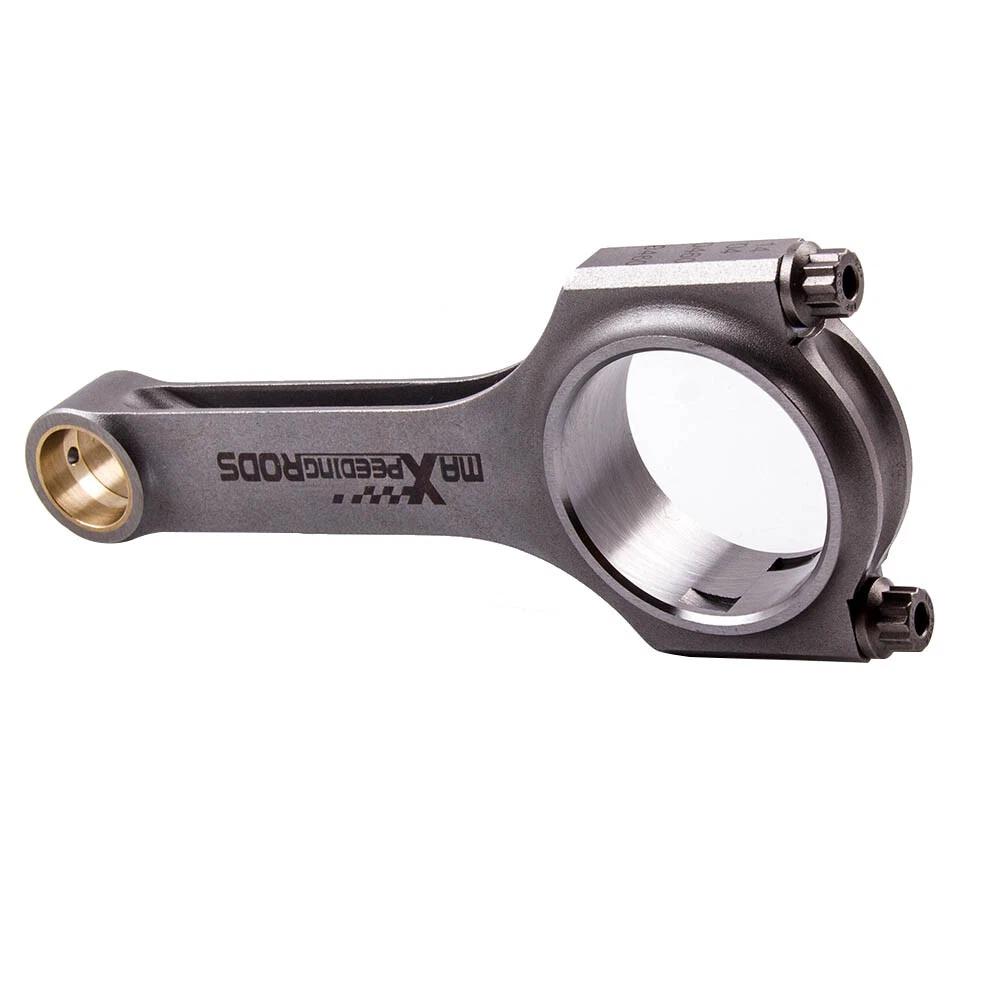

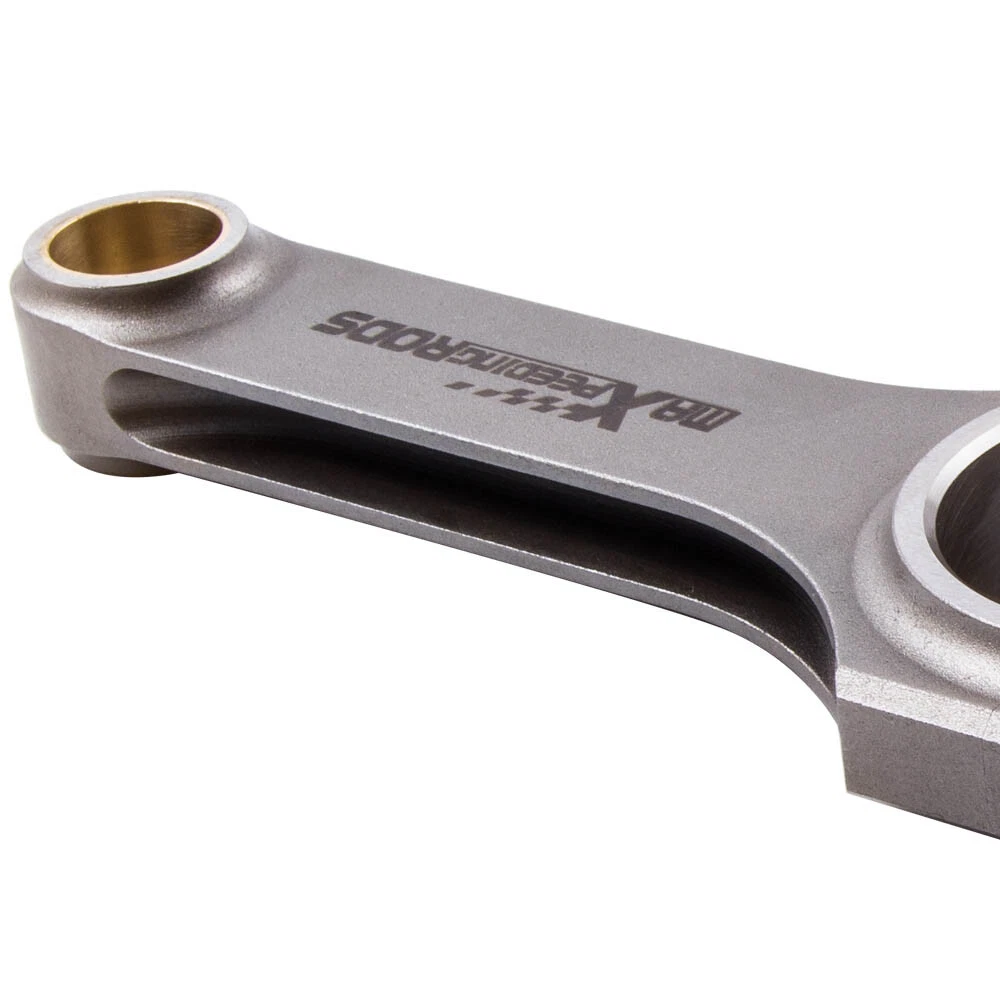

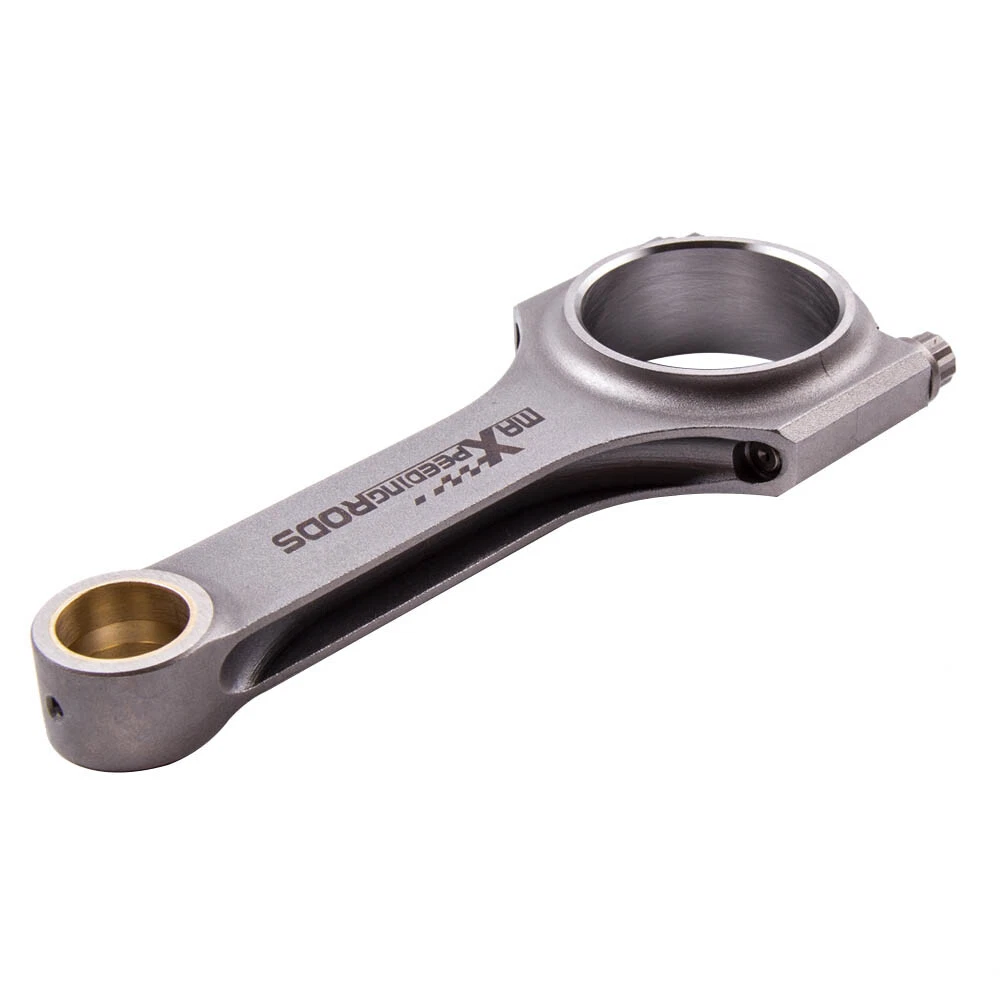

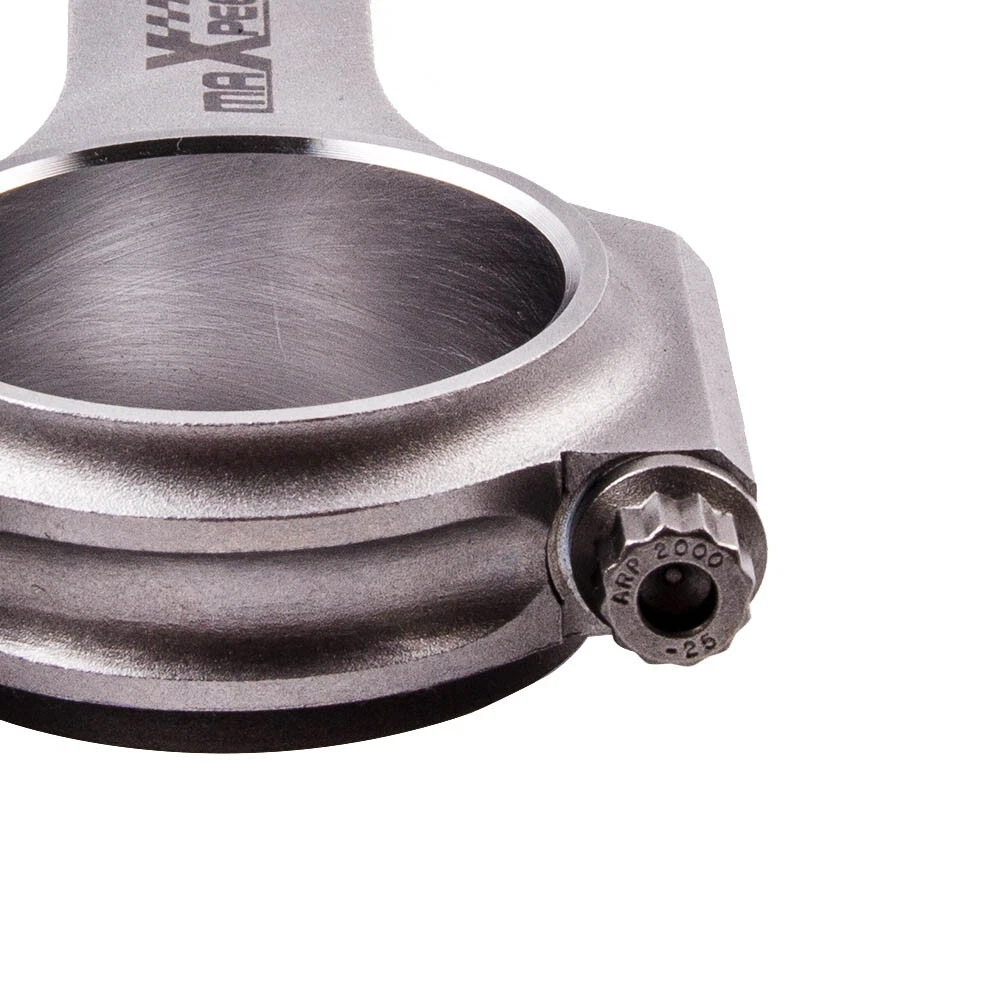

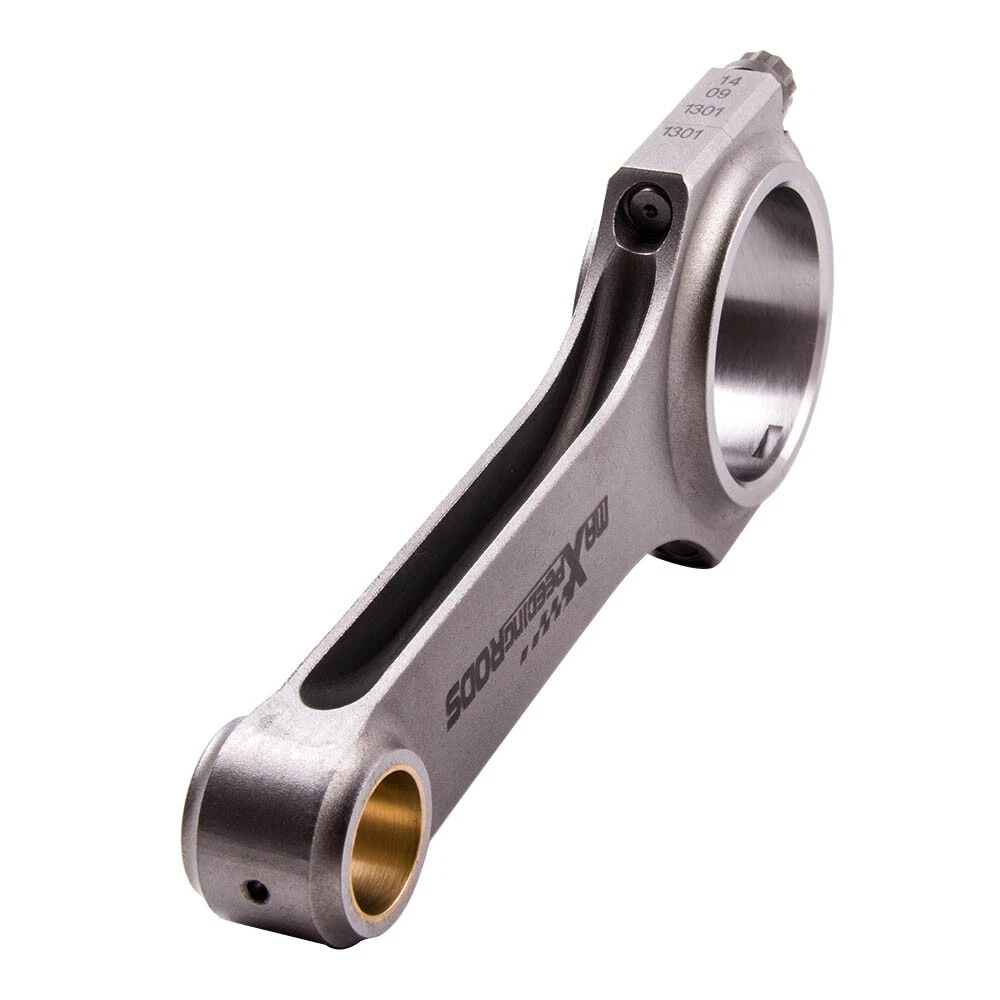

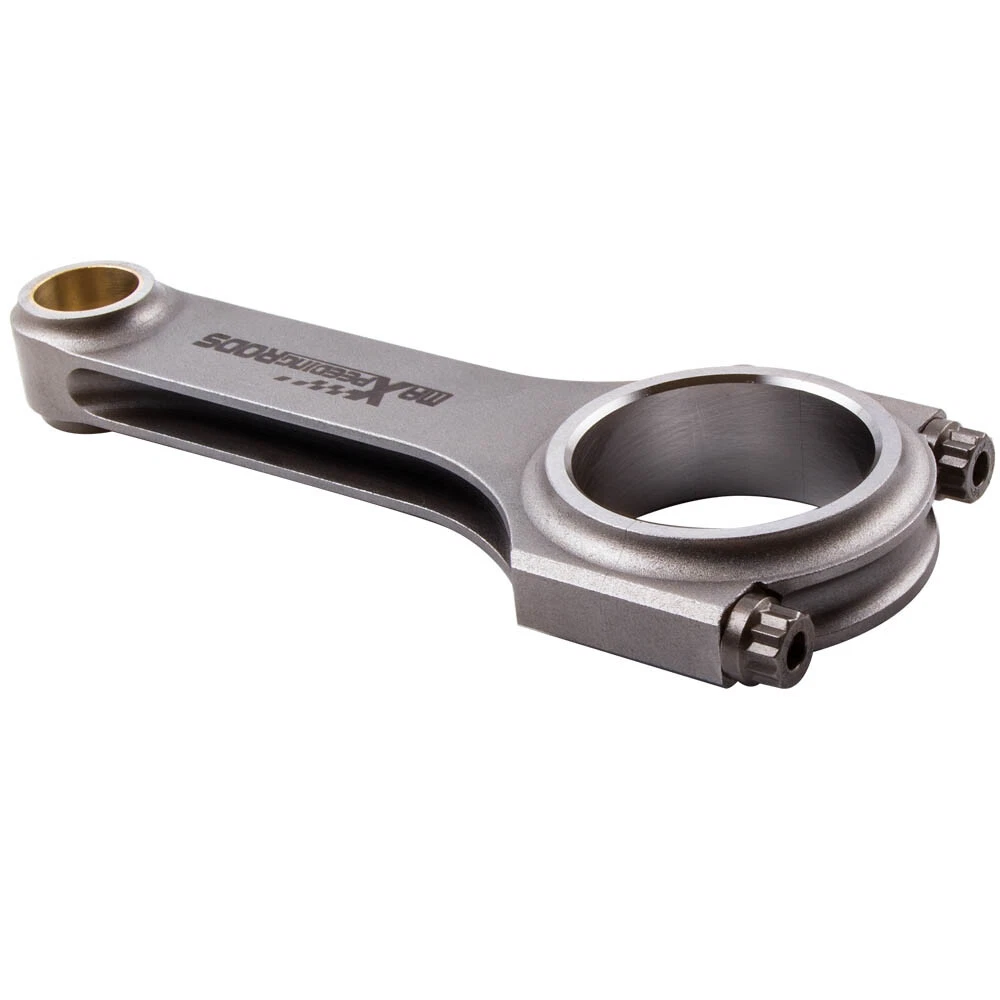

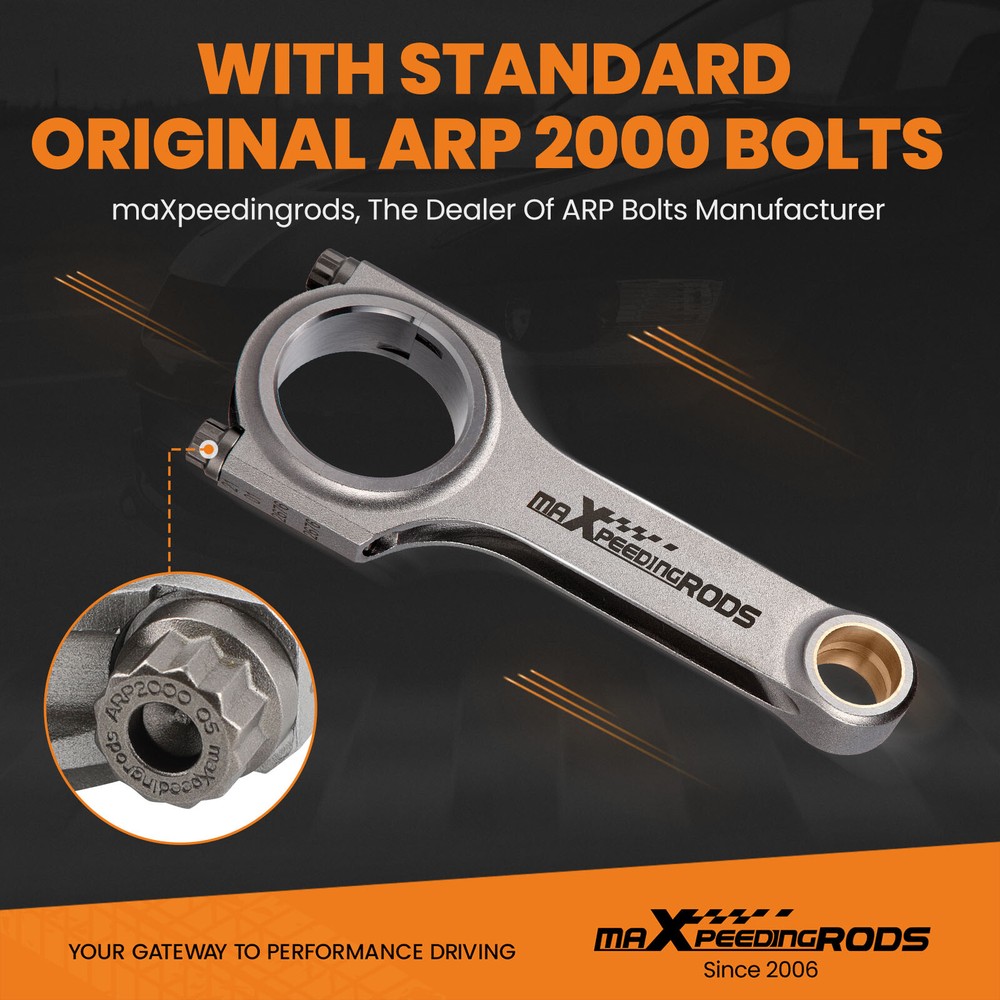

Honda Civic GL DX LX D15B2 SOHC H-Beam Connecting Rods ARP 2000 5.295in
$ 235.29
Description

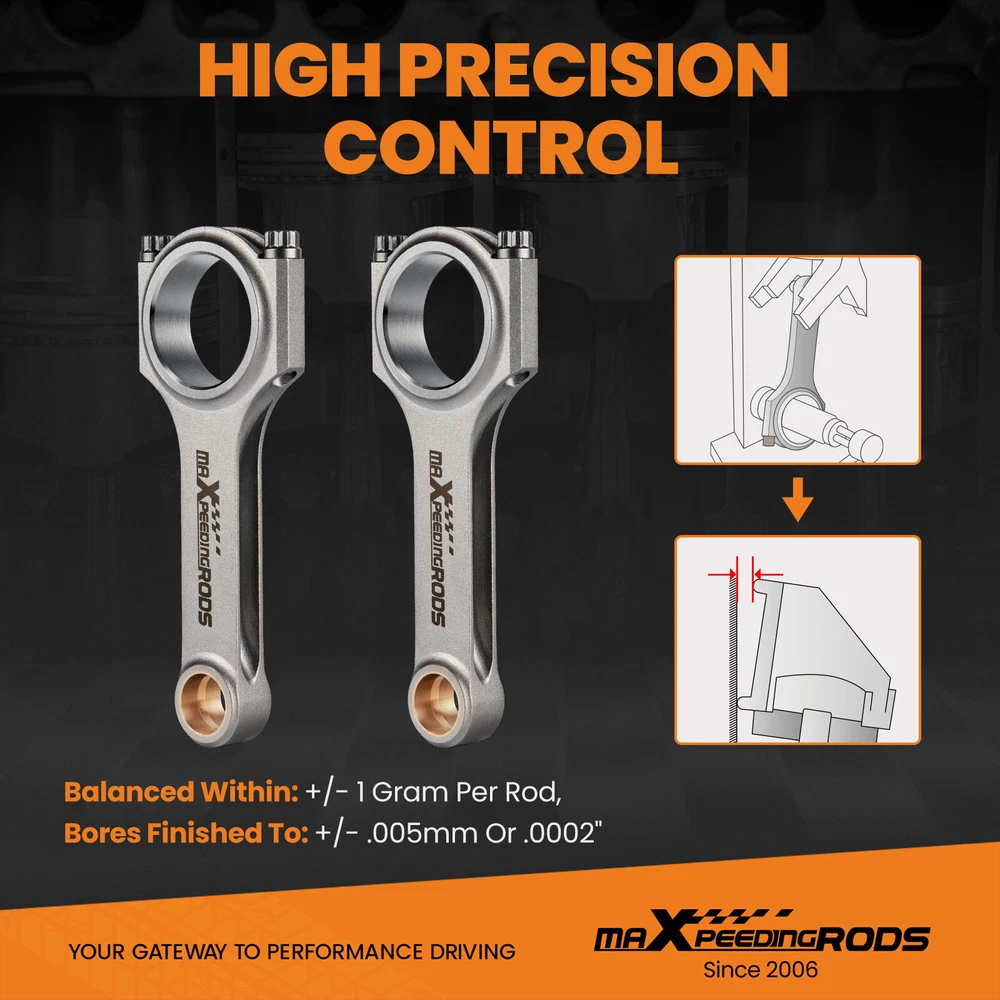

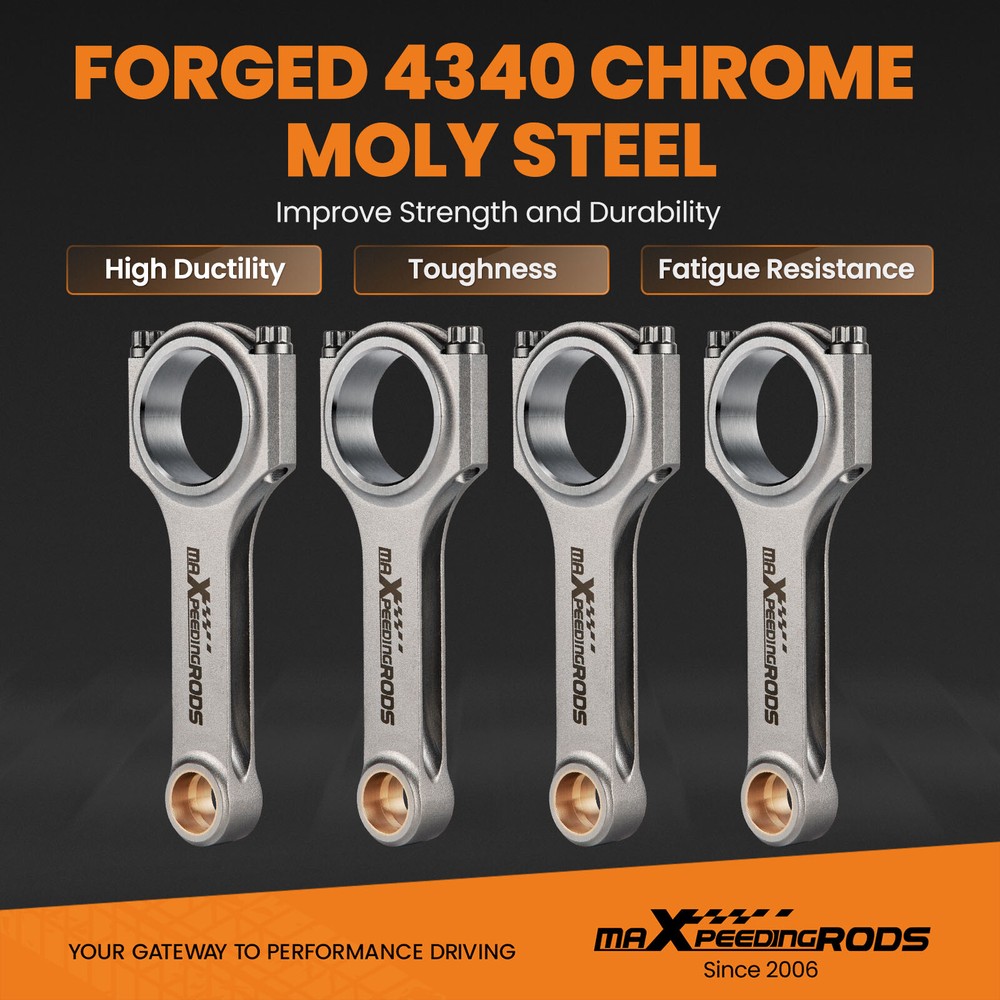

maXpeedingrods Canada Store Home About maXpeedingrods View Feedback Contact Us WHY CHOOSE US H-beam Connecting Rod Rods For Honda Civic GL DX LX D15B2 SOHC ARP 2000 5.295" Description Application 1988 - 1991 for Honda Civic GL DX LX D15B2 SOHC 1988 - 1991 for Honda Civic Wagon Wagovan/DX D15B2 SOHC 1988 - 1991 for Honda CRX D15B2 SOHC 1990 - 1995 for Honda Concerto D15B2 SOHC (European Market) 1992 - 1995 for Honda Civic LSi Hatch/Saloon (European Market) 1992 - 1995 for Honda Civic DXi Hatch/Saloon (European Market) Feature - Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing - Designed and processed by CNC machine. - All big and small ends are finished with SUNNEN honing machine - Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk - 100% X-rayed, sonic tested and magnafluxed - Multi-stage heat treated - Shot peened to relieve stress - Come with the bronzed bushing suitable for the floating piston pin Dimensions Center to center length: 134.5mm Big end diameter: 45mm Small end diameter: 19mm Big end width:22.8mm Small end width:18mm Specification - TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED - Type: Forged 4340 aircraft chrome moly quality steel for racing - H-beam Conrods Quantity: 4 Pieces as showing in picture - Bolts: Including ARP 2000 bolts - Note: Extra cost for upgrading to ARP L19 bolts - Bolts Size: ARP 2000 5/16" bolts - Tolerance: Balanced to +/- 1 gram in set - Piston Bolt Hole: +-4/1000mm - Power: 600hp ~ 800PS per set - Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM - Top acceleration: 7000rpm - Warranty: 2 years warranty for any manufacturing defect Note - Professional installation is highly recommended (No Instruction Included) - Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs. Other items you might also like 24 Ways Adjustable Damper Coilover For Honda Civic EJ EK EM 96-00 Acura Integra 24 Ways Adjustable Damper Coilover For Honda CR-X ED EE EF 1988-1991 EG EH EJ 24 Damping Level Coilover For Honda Civic EC ED EE EF 1988-1991 EG EH EJ 92-95 24 Ways Adjustable Damper Coilover For Honda Civic CR-X del Sol EG1 1992-1995 About MaXpeedingrods Shipping Policy Returns Policy
