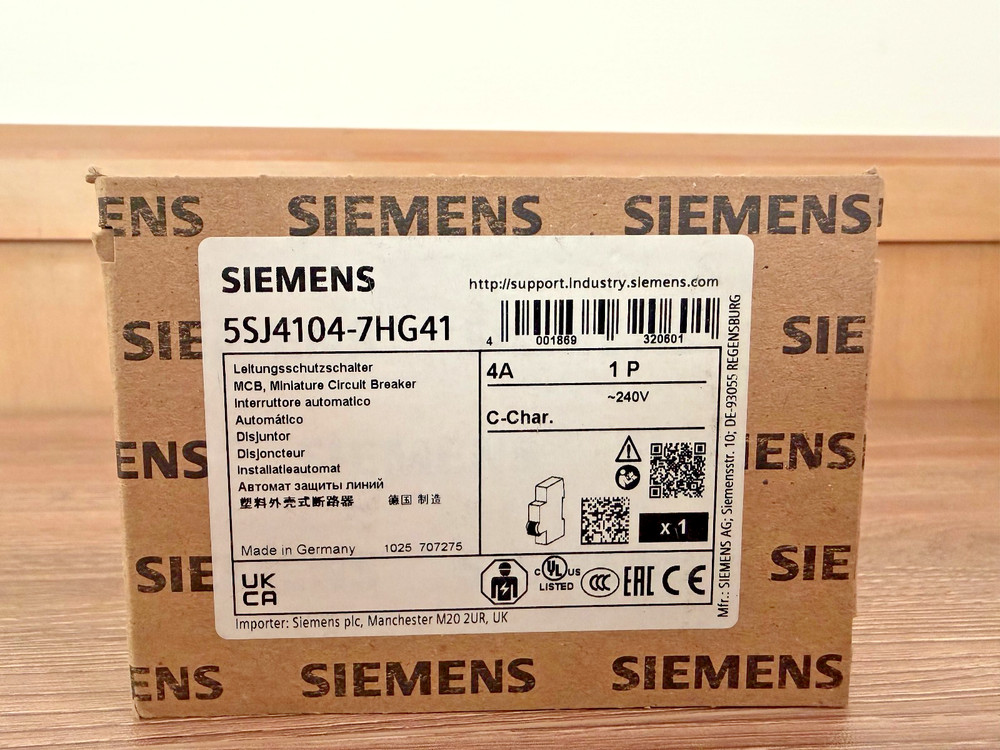

Siemens SENTRON 5SJ4104-7HG41 Miniature Circuit Breaker | 4A, 1-Pole
$ 19.8
Description
Siemens SENTRON 5SJ4104-7HG41 Miniature Circuit Breaker | 4A, 1-Pole. Designed for infrastructure and industrial applications, this 1-pole breaker is rated for 4A and fully complies with UL 489 standards. Rated Operational Current: 4A. Vibration Resistance: 50 m/s 2 at 25 to 150Hz. This listing is for a brand new Siemens 5SJ4104-7HG41 miniature circuit breaker from the SENTRON product line . Designed for infrastructure and industrial applications, this 1-pole breaker is rated for 4A and fully complies with UL 489 standards . +4 Product Specifications Brand: Siemens Part Number: 5SJ4104-7HG41 Number of Poles: 1 (1P) Tripping Characteristic: Class C Rated Operational Current: 4A Maximum Operating Voltage (AC): 240V (per UL 489 and CSA C22.2 No. 5-02) Maximum Operating Voltage (DC): 60V (1-channel); 125V (2-channel) Breaking Capacity (Icn): 14kA (at AC according to UL 1077 and CSA C22.2 No.235) Switching Capacity Current: 10kA (according to EN 60898); 15kA (according to IEC 60947-2) Insulation Voltage (Ui): 440V AC Mechanical Service Life: 10,000 typical operating cycles Technical Features Connection Interface: Combined terminals at both top and bottom; touch protection included Conductor Cross-Sections: Minimum 0.75 mm 2 to maximum 25 mm 2 (finely stranded with core end processing) Tightening Torque: 3.5 N·m (31 lb·in) for Cu terminals Environmental Ratings: Halogen-free and silicon-free construction Protection Class: IP20 (IP0 in the handle range) Mounting: Standard mounting rail Physical Design & Dimensions Height: 110 mm Width: 18 mm Depth / Installation Depth: 70 mm Modular Width Units: 1 Net Weight: 171 g Operational Environment Ambient Temperature (Operation): − 25 °C minimum to 55 °C maximum Ambient Temperature (Storage): − 40 °C minimum to 75 °C maximum Humidity: Maximum 95% humidity during operation Vibration Resistance: 50 m/s 2 at 25 to 150Hz
