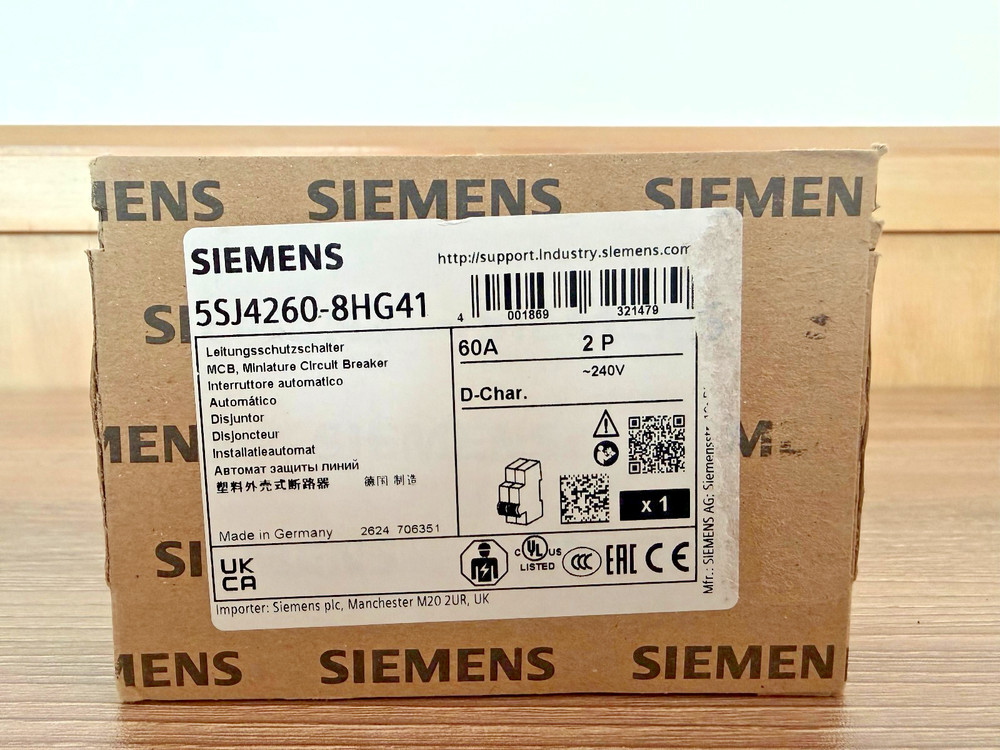

Siemens SENTRON 5SJ4260-8HG41 Miniature Circuit Breaker | 60A, 2-Pole
$ 39.6
Description
Siemens SENTRON 5SJ4260-8HG41 Miniature Circuit Breaker | 60A, 2-Pole. Rated Operational Current: 60A. Net Weight: Data sheet indicates typical modular breaker weight (~340g-350g). Vibration Resistance: 50 m/s² at 25 to 150Hz. Conductor Range: Supports finely stranded conductors with core end processing from 0.75 mm² up to 25 mm². Siemens SENTRON 5SJ4260-8HG41 Miniature Circuit Breaker | 60A, 2-Pole This listing is for a brand-new Siemens 5SJ4260-8HG41 miniature circuit breaker from the SENTRON product line . This high-capacity 2-pole breaker is rated for 60A and is specifically designed for branch circuit protection in infrastructure and industrial applications according to UL 489 standards . Featuring a Class D tripping characteristic, this unit is ideal for protecting circuits with high-inrush currents, such as those found in heavy machinery or large transformer loads . Product Specifications Brand: Siemens SENTRON Part Number: 5SJ4260-8HG41 Number of Poles: 2 (2P) Tripping Characteristic: Class D Rated Operational Current: 60A Maximum Operating Voltage (AC): 240V (per UL 489 and CSA C22.2 No. 5-02) Maximum Operating Voltage (DC): 60V (1-channel); 125V (2-channel) Breaking Capacity (Icn): 10kA (at AC according to UL 489) Mechanical Service Life: 10,000 typical operating cycles Technical Features Connection Interface: Combined terminals at both top and bottom for flexible power supply positioning . Conductor Range: Supports finely stranded conductors with core end processing from 0.75 mm² up to 25 mm² . Tightening Torque: 3.5 N·m (31 lb·in) maximum for screw-type terminals . Safety & Protection: Touch protection included, IP20 rated (IP 0 in handle range), halogen-free, and silicon-free construction . Mounting: Standard DIN rail fastening for any mounting position . Physical Design & Dimensions Height: 110 mm Width: 36 mm (2 modular width units) Depth / Installation Depth: 70 mm Net Weight: Data sheet indicates typical modular breaker weight (~340g-350g) . Operational Environment Ambient Temperature (Operation): -25°C to +55°C Ambient Temperature (Storage): -40°C to +75°C Humidity: Maximum 95% humidity during operation Vibration Resistance: 50 m/s² at 25 to 150Hz
